Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the rear seat to the anchor plates.
  2. Install the front seat adjuster latches into the anchor plate.

    Ensure that the latch is hooked on both pins.

  3. Tilt the rear seat assembly down and latch the rear seat adjusters into the floor.
  4. Place the rear seat to the original position.

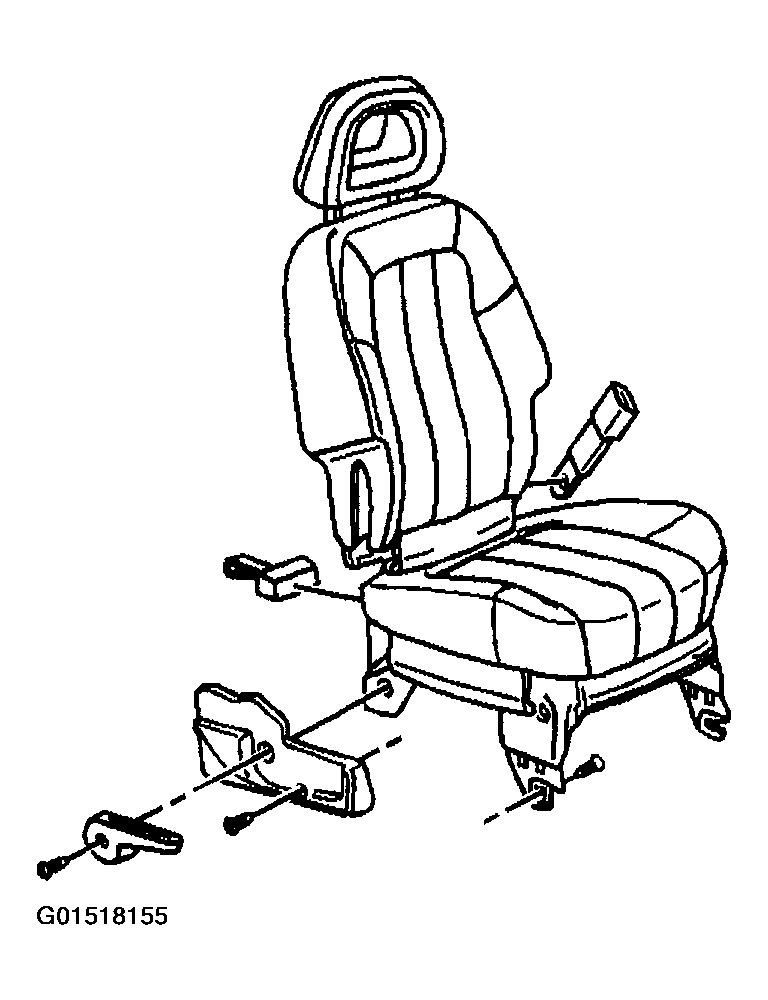

    Fig 1: Installing Rear Bucket Seat
    G01518155Courtesy of GENERAL MOTORS CORP.
