Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Position the front bucket seat to the mid-position with the back in the full up position.
  3. Remove the nuts from the front seat adjuster at the floor pan.
  4. Disconnect the electrical connectors from the seat.
  5. Remove the seat from the vehicle.

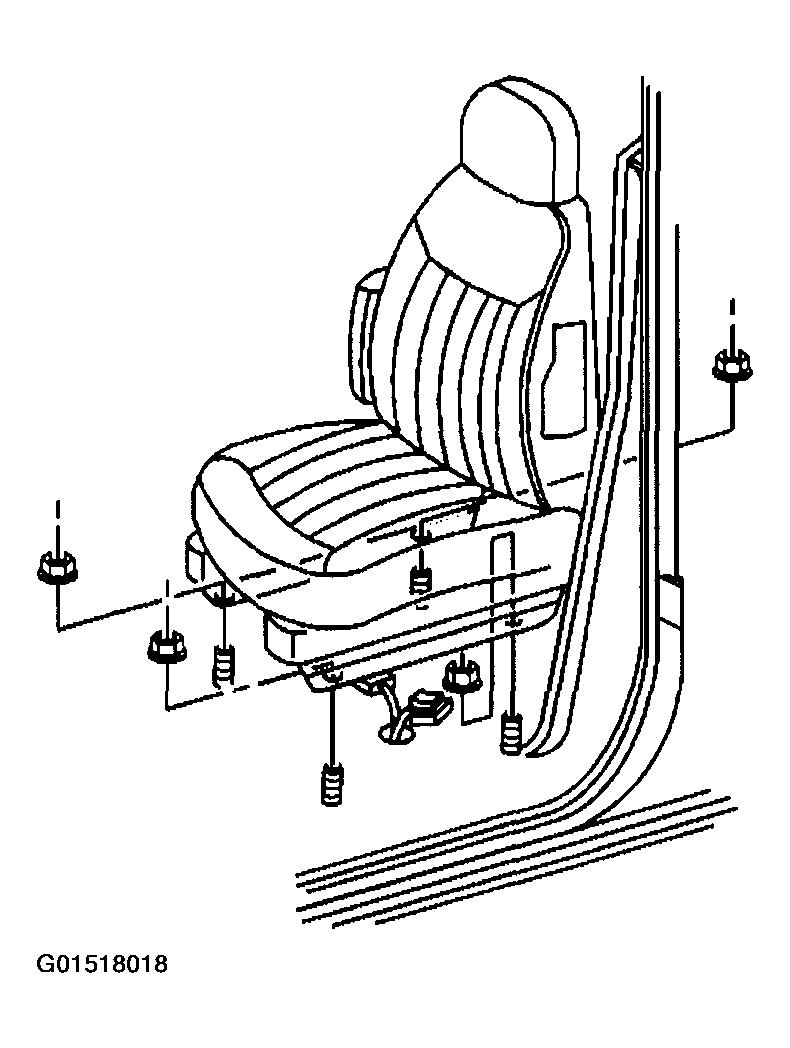

    Fig 1: Removing Front Seat Adjuster Nuts & Disconnecting Seat Electrical Connectors
    G01518018Courtesy of GENERAL MOTORS CORP.
