Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear split bench seat from the vehicle. Refer to SEAT REPLACEMENT - REAR 50-50 SPLIT  .
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (SPLIT BENCH)  or SEAT BACK REPLACEMENT - REAR (BUCKET)  .
  3. Remove the rear seat cushion cover from the rear seat cushion. Refer to SEAT CUSHION COVER REPLACEMENT - REAR (BUCKET)  or SEAT CUSHION COVER REPLACEMENT - REAR (SPLIT BENCH)  .
  4. Remove the rear seat cushion from the rear seat frame.

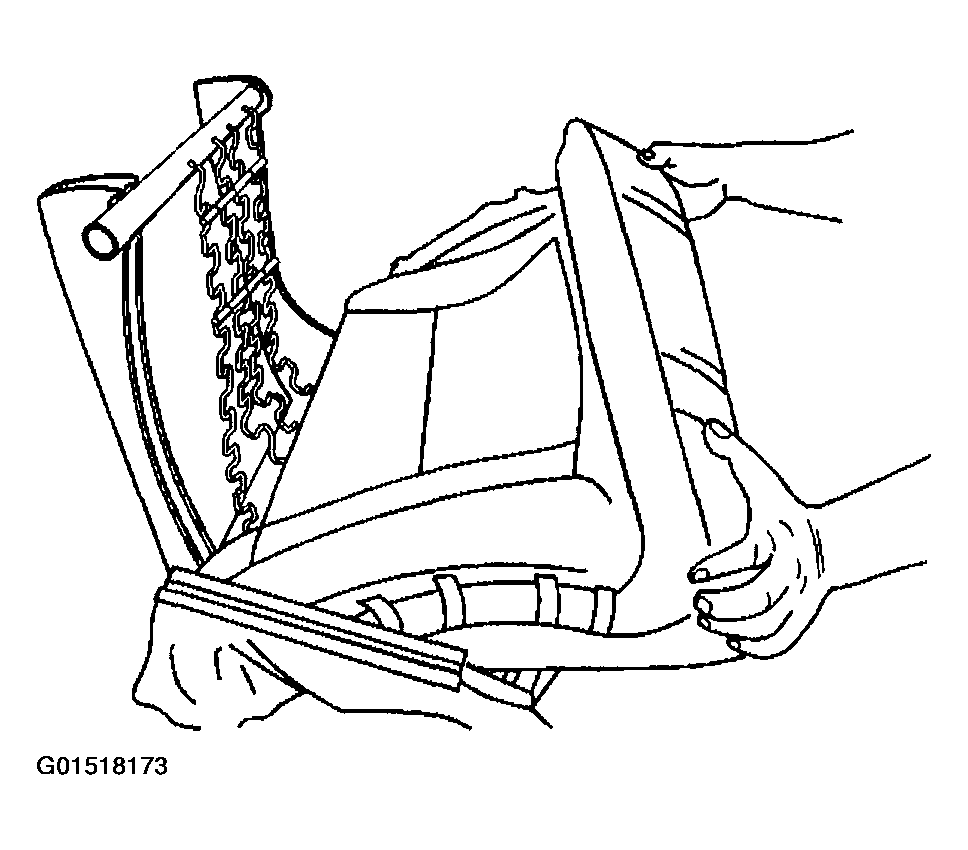

    Fig 1: Removing Rear Seat Cushion From Rear Seat Frame
    G01518173Courtesy of GENERAL MOTORS CORP.
