Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the screw from the rear of the front seat cushion trim panel.

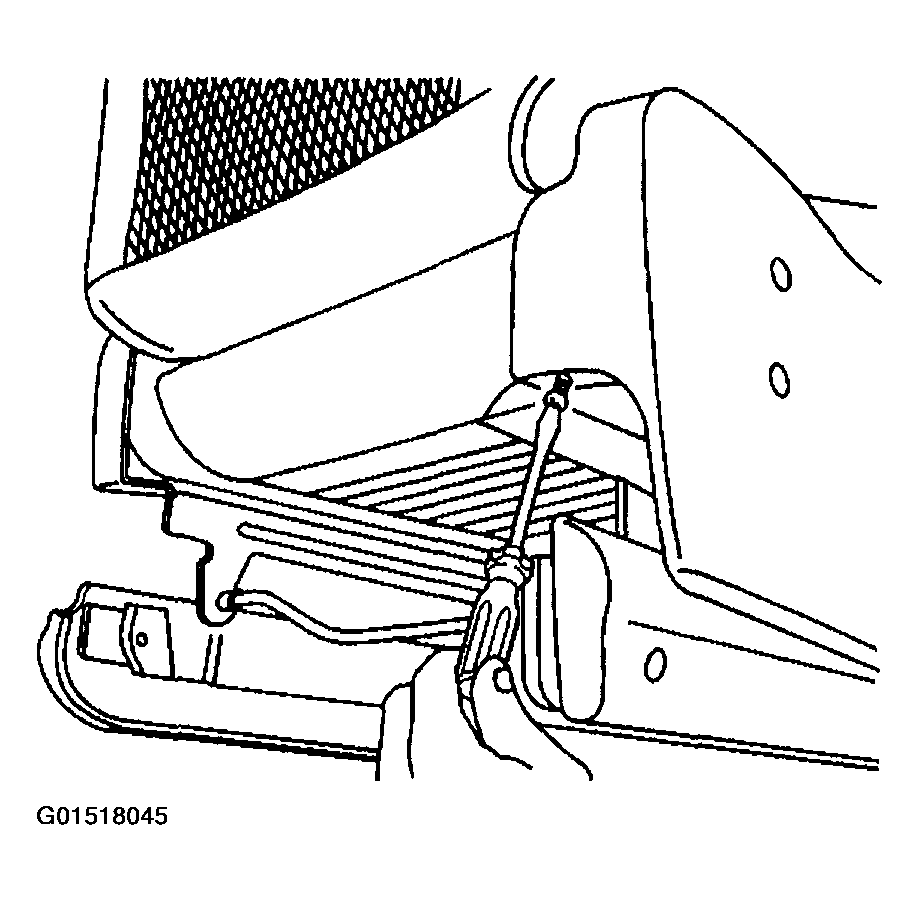

    Fig 1: Removing Screw From Rear Of Front Seat Cushion Trim Panel
    G01518045Courtesy of GENERAL MOTORS CORP.
  3. Remove the screw from the front of the front seat cushion trim panel.

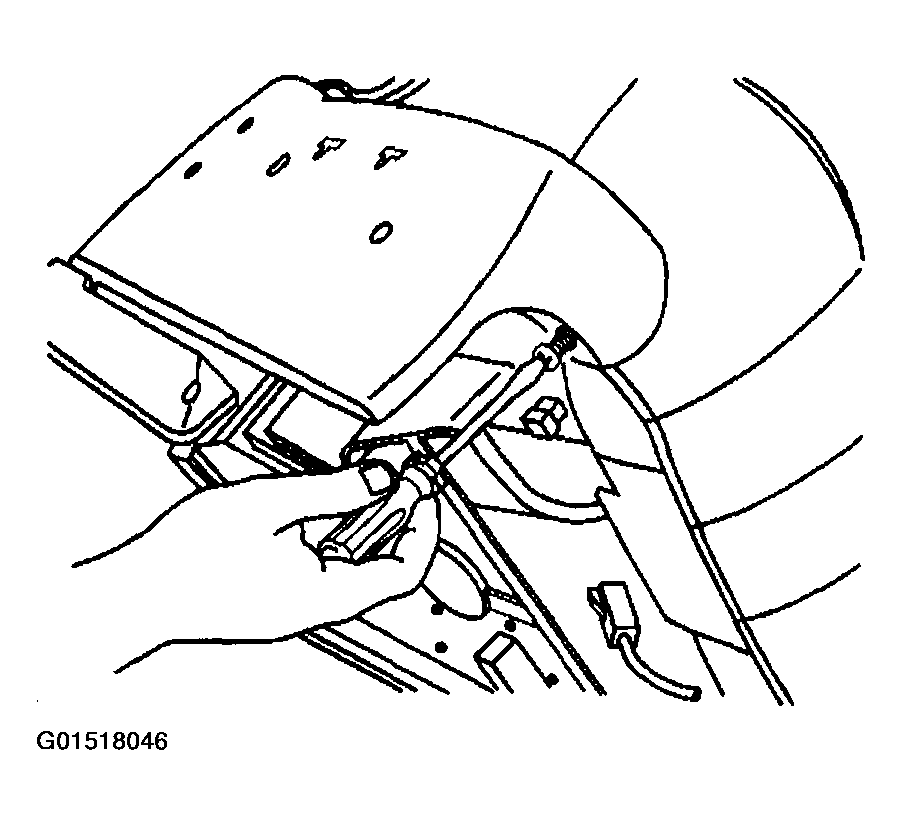

    Fig 2: Removing Screw From Front Of Front Seat Cushion Trim Panel
    G01518046Courtesy of GENERAL MOTORS CORP.
  4. Remove the screw from the center of the front seat cushion trim panel.

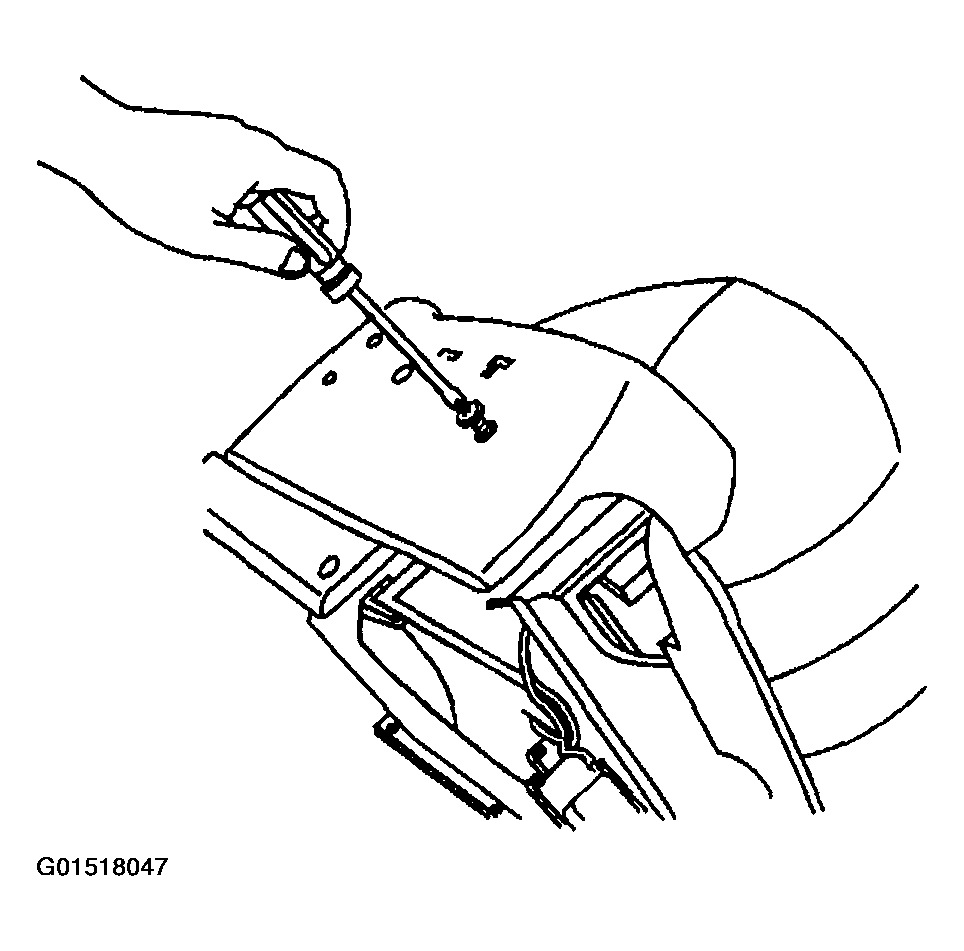

    Fig 3: Removing Screw From Center Of Front Seat Cushion Trim Panel
    G01518047Courtesy of GENERAL MOTORS CORP.
  5. Remove the front seat cushion trim panel from the front bucket seat.

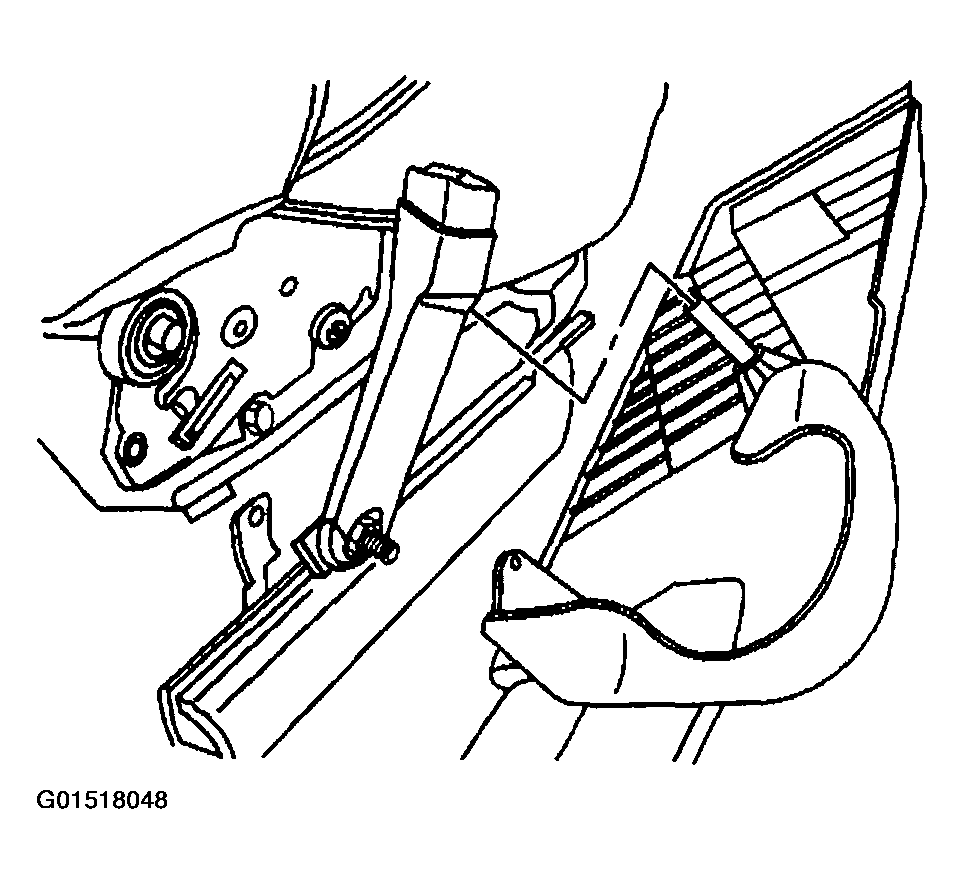

    Fig 4: Removing Front Seat Cushion Trim Panel From Front Bucket Seat
    G01518048Courtesy of GENERAL MOTORS CORP.
