Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the front seat cushion trim panel from the front bucket seat.

Fig 1: Installing Front Seat Cushion Trim Panel From Front Bucket Seat
Courtesy of GENERAL MOTORS CORP.
Install the screw to the center of the front seat cushion trim panel.
Tighten

Tighten the front seat cushion trim panel center screw to 43 N.m (32 lb ft).

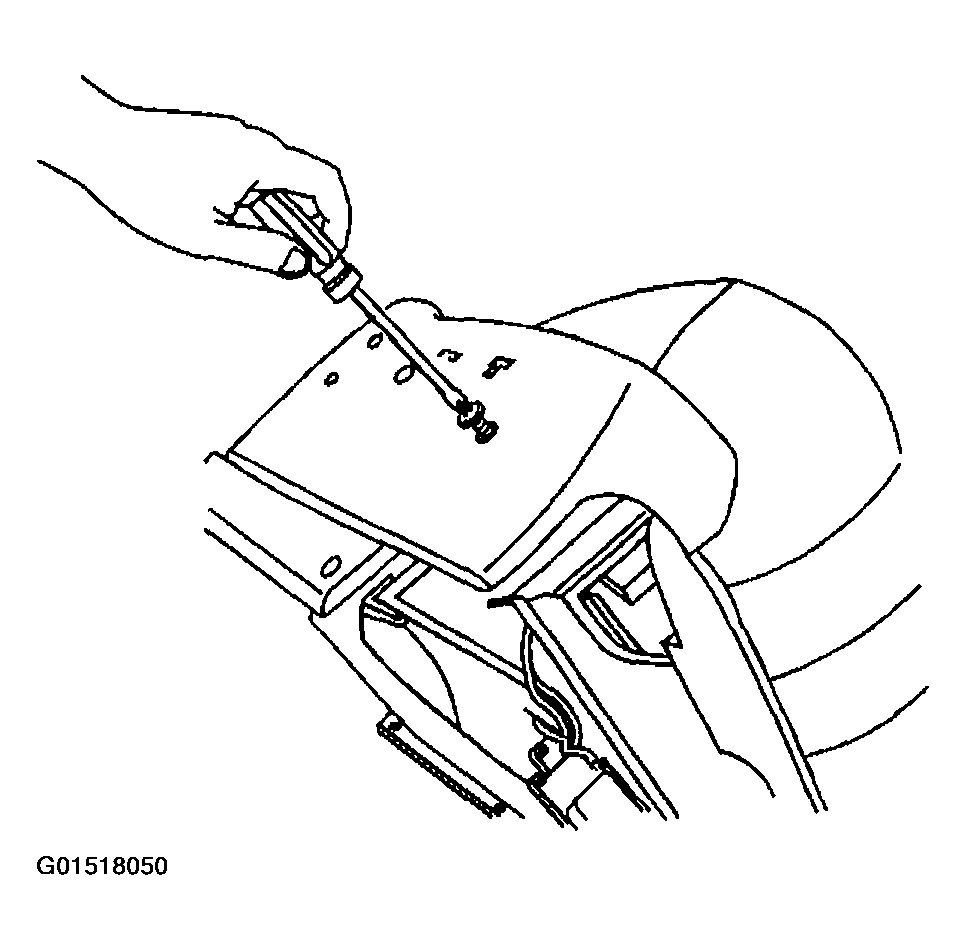

Fig 2: Installing Screw To Center Of Front Seat Cushion Trim Panel
Courtesy of GENERAL MOTORS CORP.
Install the screw to the front of the front seat cushion trim panel.
Tighten

Tighten the front seat cushion trim panel front screw to 43 N.m (32 lb ft).

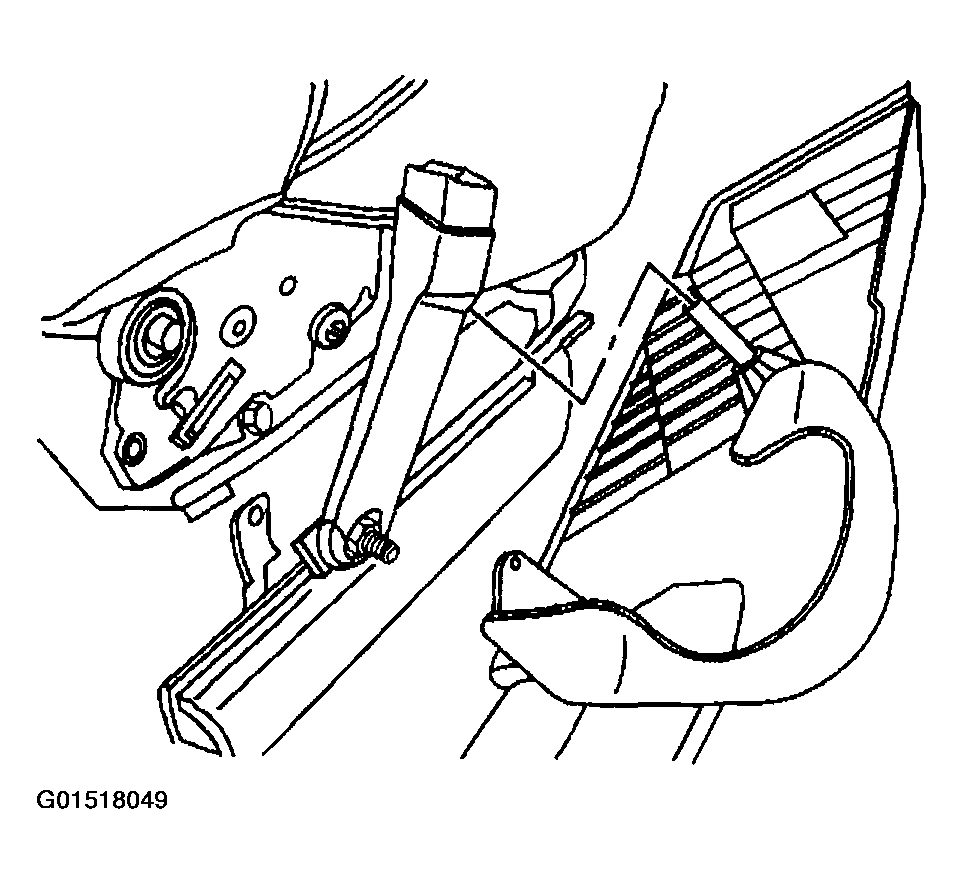

Fig 3: Installing Screw To Front Of Front Seat Cushion Trim Panel
Courtesy of GENERAL MOTORS CORP.
Install the screw to the rear of the front seat cushion trim panel.
Tighten

Tighten the front seat cushion trim panel rear screw to 43 N.m (32 lb ft).
Install the front bucket seat. Refer to SEAT REPLACEMENT - BUCKET .

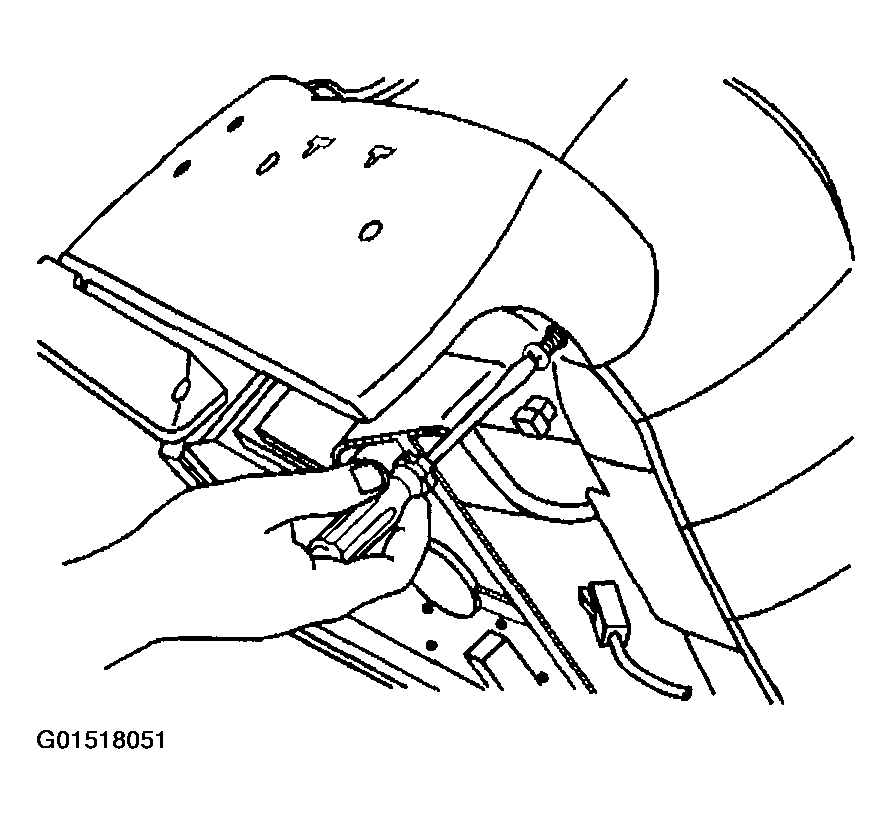

Fig 4: Installing Screw To Rear Of Front Seat Cushion Trim Panel
Courtesy of GENERAL MOTORS CORP.
