Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear seat cushion trim cover to the rear seat.
  2. Install the upper retainer clip to the seat frame, pressing into place until fully seated.

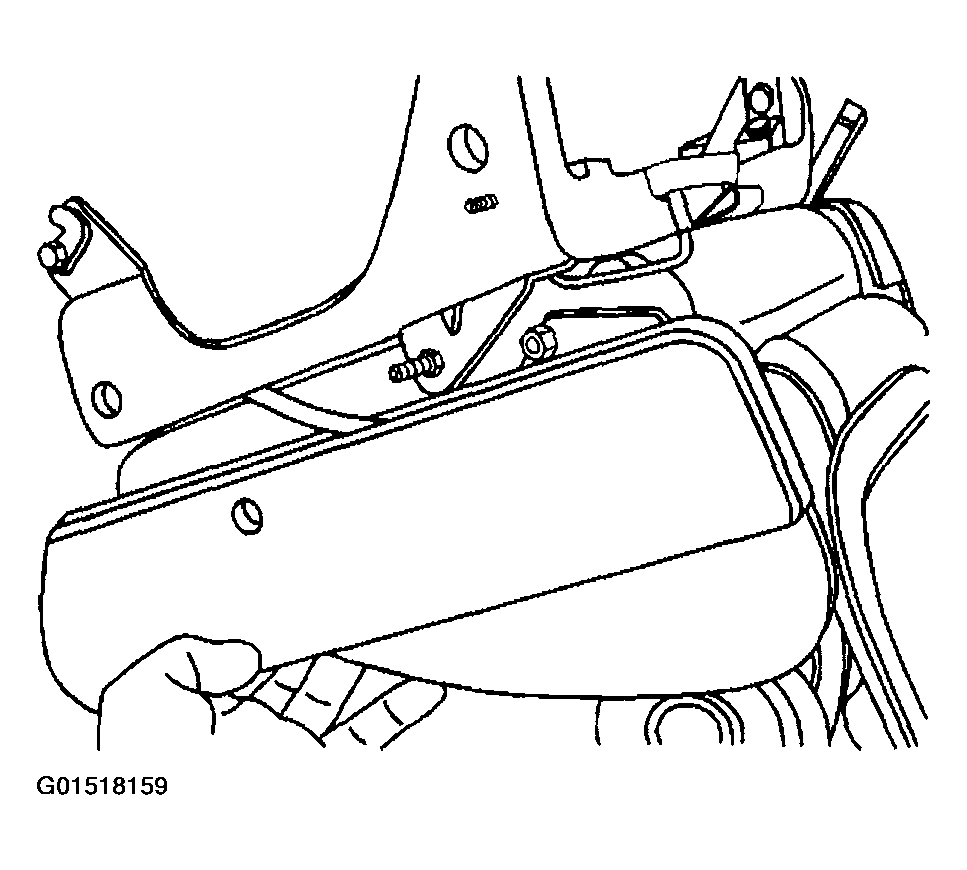

    Fig 1: Positioning Rear Seat Cushion Trim Cover To Rear Seat
    G01518159Courtesy of GENERAL MOTORS CORP.
  3. Install the rear screw to the seat cushion trim cover.

    Tighten

    Tighten the rear seat cushion trim cover screw to 40 N.m (30 lb ft).

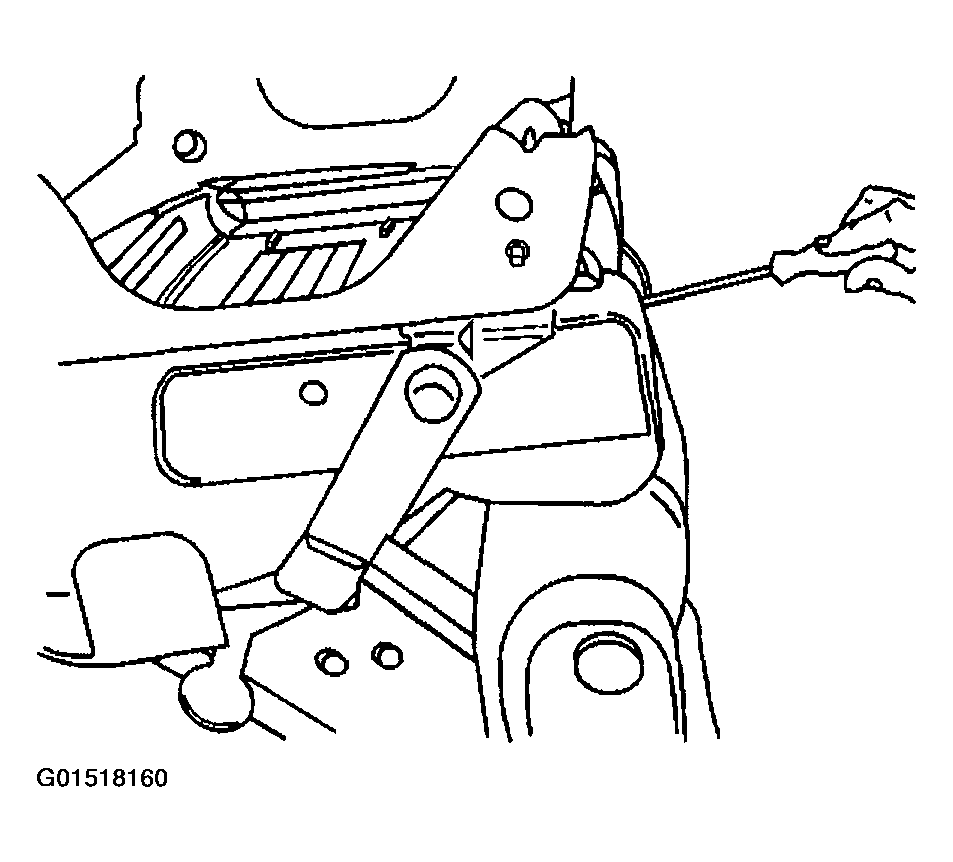

    Fig 2: Installing Rear Screw To Seat Cushion Trim Cover
    G01518160Courtesy of GENERAL MOTORS CORP.
  4. Install the front screw from the rear seat cushion trim cover.

    Tighten

    Tighten the rear seat cushion trim cover screw to 40 N.m (30 lb ft).

  5. Install the rear seat belt buckle.
  6. Install the rear bucket seat to the vehicle. Refer to SEAT REPLACEMENT - REAR BUCKET  .

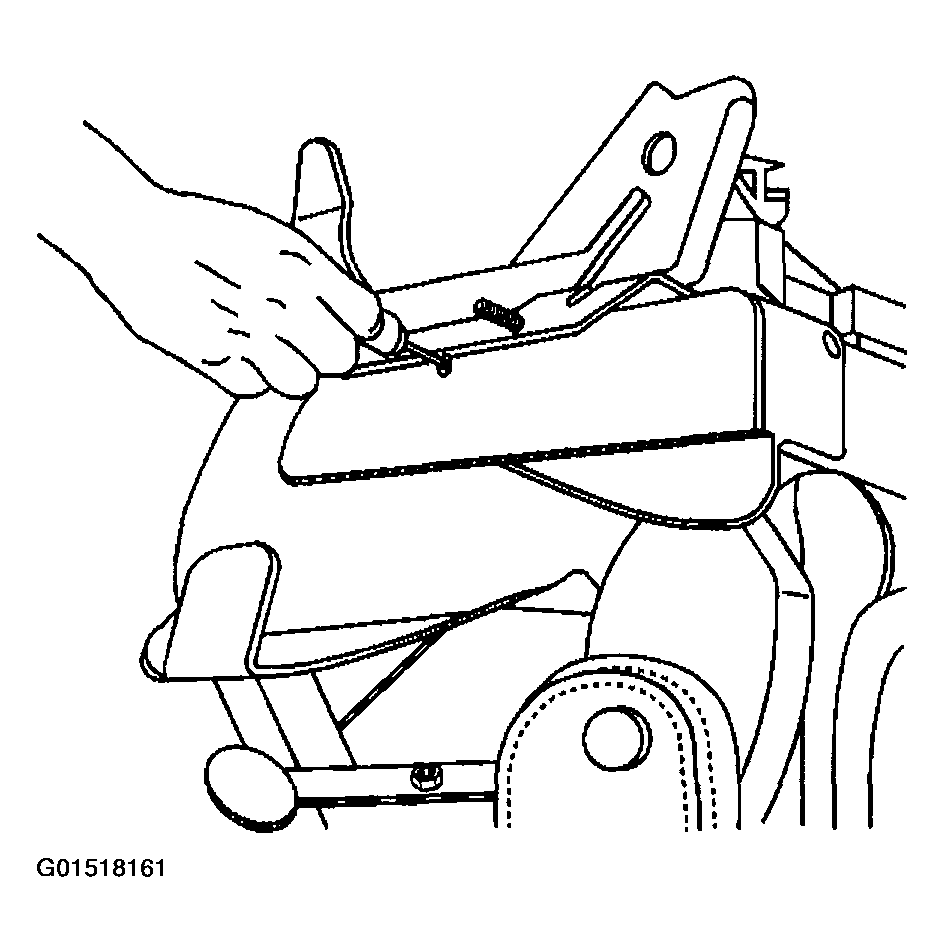

    Fig 3: Installing Front Screw From Rear Seat Cushion Trim Cover
    G01518161Courtesy of GENERAL MOTORS CORP.
