Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion heater element.
  2. Install the cover onto the front seat cushion.
  3. Install the hog rings to the front seat cushion cover.

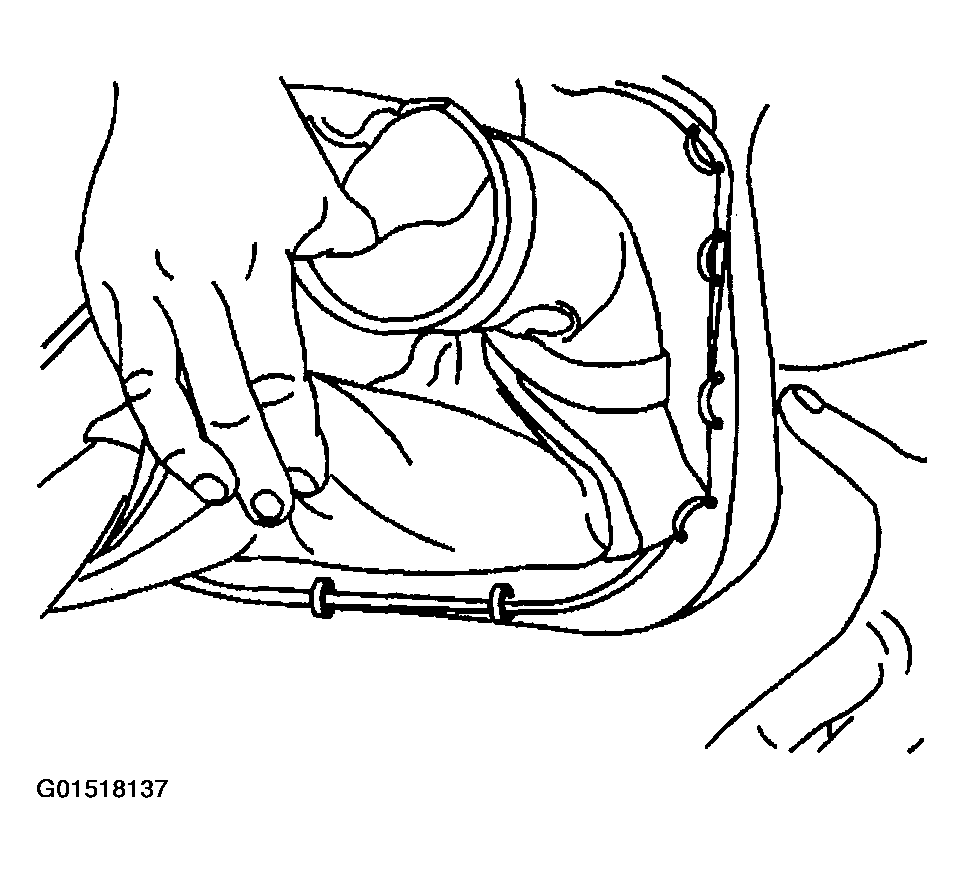

    Fig 1: Installing Cover Onto Front Seat Cushion
    G01518137Courtesy of GENERAL MOTORS CORP.
  4. Install the J-hook retainer on the front of the cover.

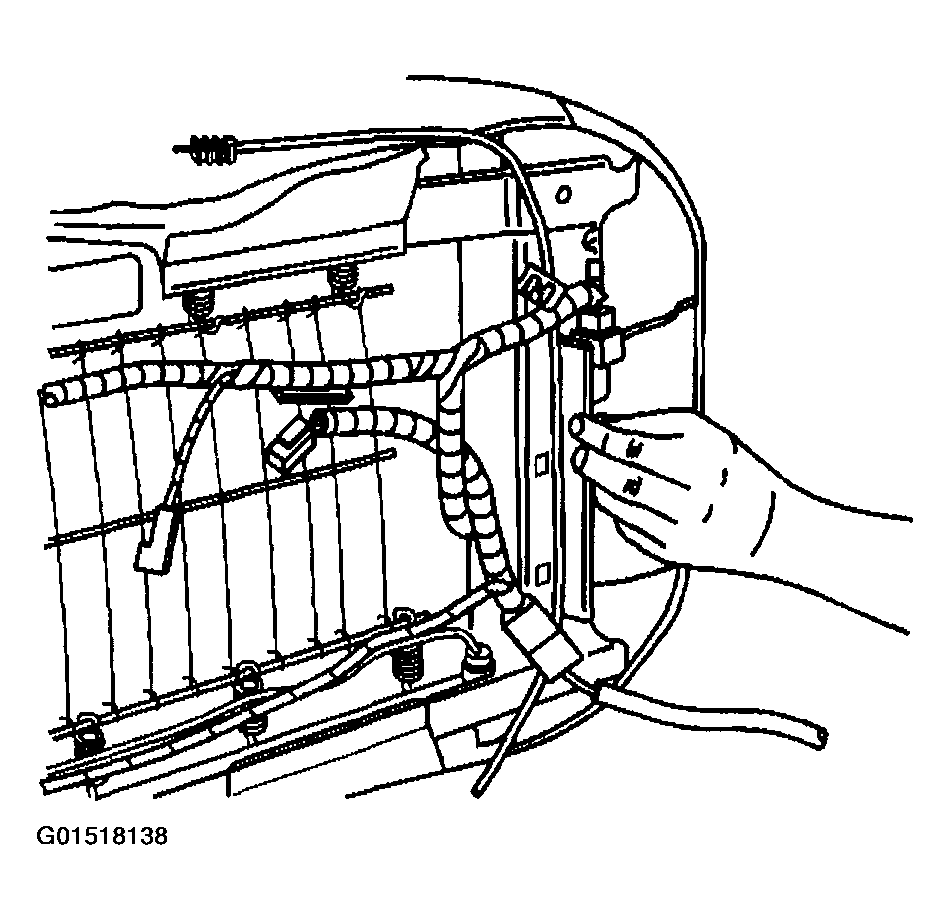

    Fig 2: Installing J-Hook Retainer On Front Of Cover
    G01518138Courtesy of GENERAL MOTORS CORP.
  5. Install the J-hook retainers on the sides of the cover.

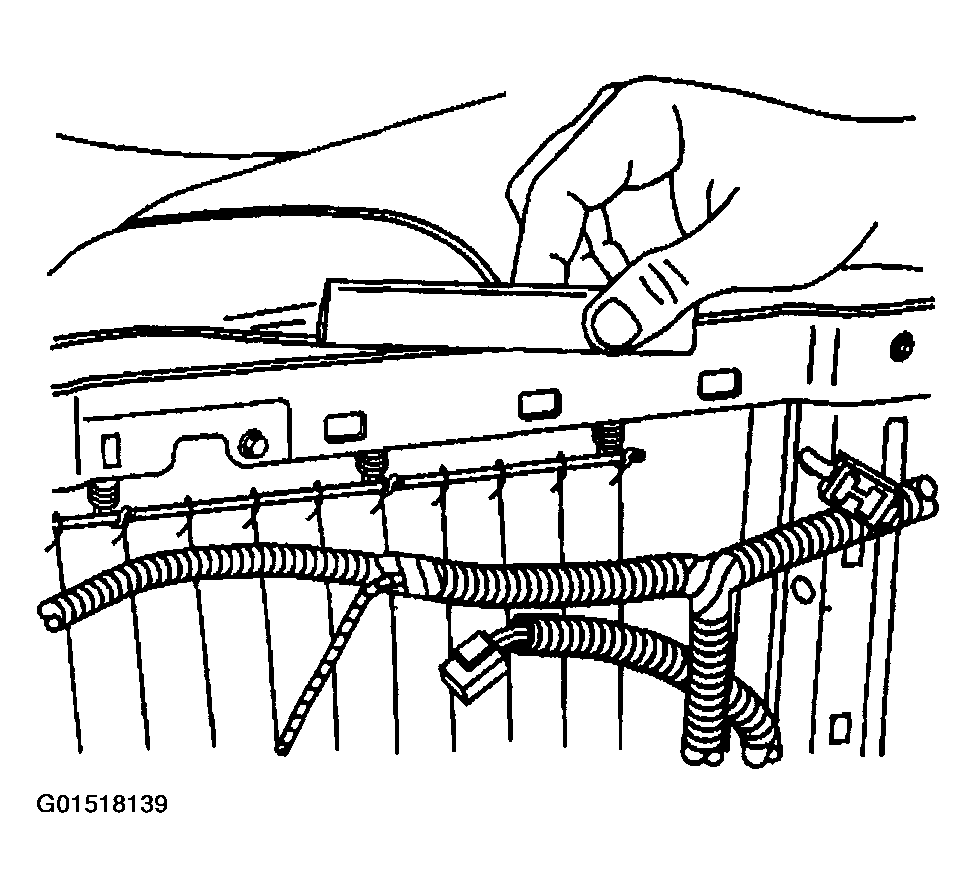

    Fig 3: Installing J-Hook Retainers On Sides Of Cover
    G01518139Courtesy of GENERAL MOTORS CORP.
  6. Install the J-hook retainer on the rear of the cover.

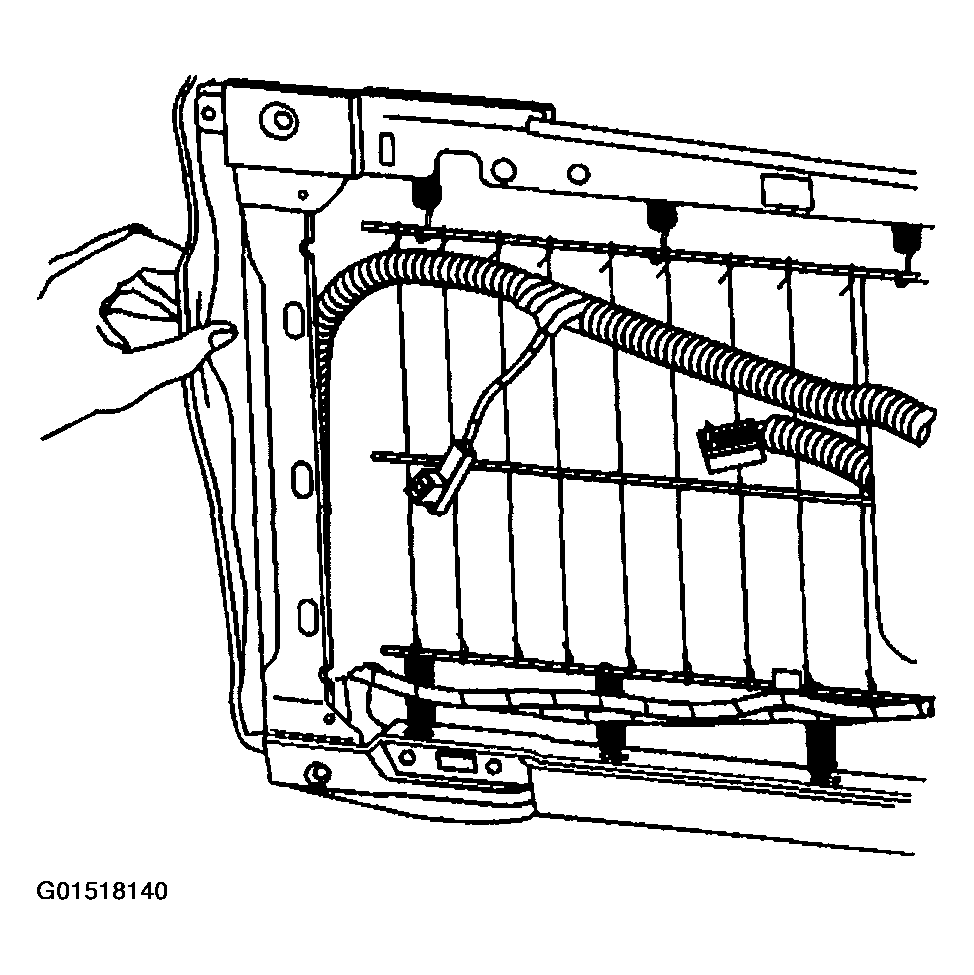

    Fig 4: Installing J-Hook Retainer On Rear Of Cover
    G01518140Courtesy of GENERAL MOTORS CORP.
  7. Install the hook and the loop retainers securing the cover to the cushion, by pressing in place until fully seated.
  8. Install the seat adjuster. Refer to SEAT ADJUSTER REPLACEMENT - FRONT  .
  9. Connect the electrical connector for the heated seat, if equipped.
  10. Install the seat back. Refer to SEAT BACK REPLACEMENT - FRONT  .
  11. Install the bucket seat. Refer to SEAT REPLACEMENT - BUCKET  .
    Fig 5: Installing Hook And Loop Retainers
    G01518141Courtesy of GENERAL MOTORS CORP.
