Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the front seat adjuster. Refer to SEAT ADJUSTER REPLACEMENT - FRONT  .
  3. Remove the front seat back from the front seat. Refer to SEAT BACK REPLACEMENT - FRONT  .

    Important:  Remove the front seat cushion cover and the cushion as one piece.

  4. Remove the front seat cushion cover from the front seat cushion. Refer to SEAT CUSHION COVER REPLACEMENT - FRONT  .
  5. Remove the front seat cushion from the front seat frame. Refer to SEAT CUSHION REPLACEMENT - FRONT  .

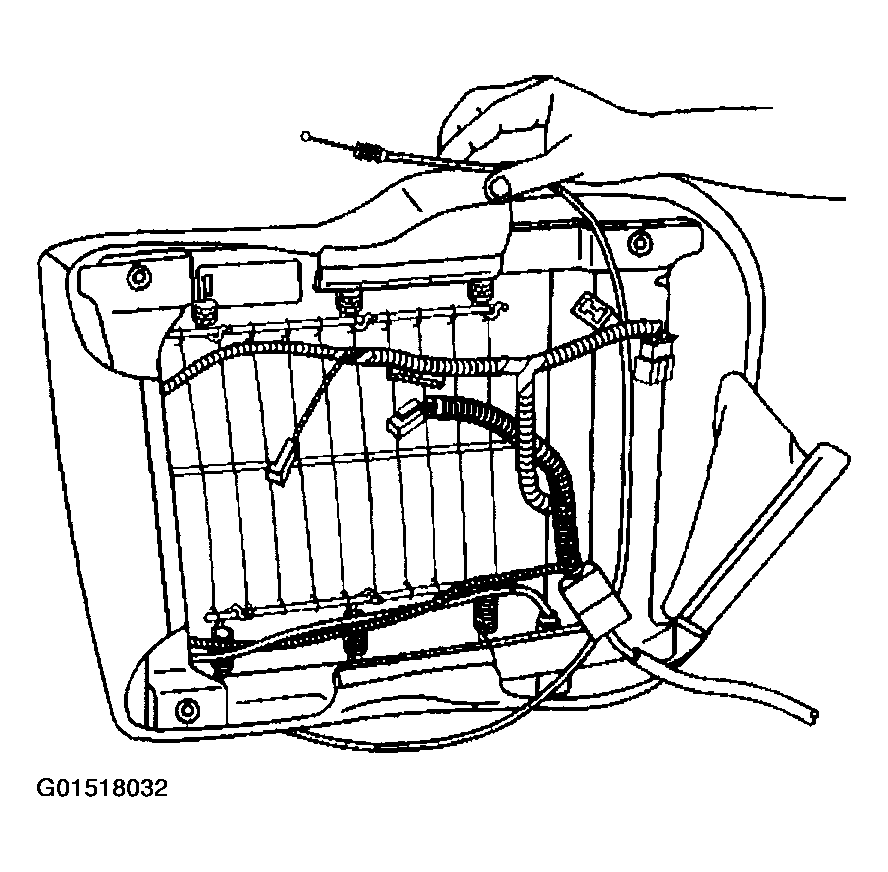

    Fig 1: Disconnecting All Required Wiring Harnesses From Front Seat Cushion Frame
    G01518032Courtesy of GENERAL MOTORS CORP.
  6. Disconnect all required wiring harnesses from the front seat cushion frame.
