Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear split bench seat from the vehicle. Refer to SEAT REPLACEMENT - REAR 50-50 SPLIT  .
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (SPLIT BENCH)  or SEAT BACK REPLACEMENT - REAR (BUCKET)  .
  3. Remove the rear seat adjuster. Refer to SEAT ADJUSTER REPLACEMENT - REAR (SPLIT BENCH)  .
  4. Remove the J-hook retainers on the rear center of the rear seat cushion cover.

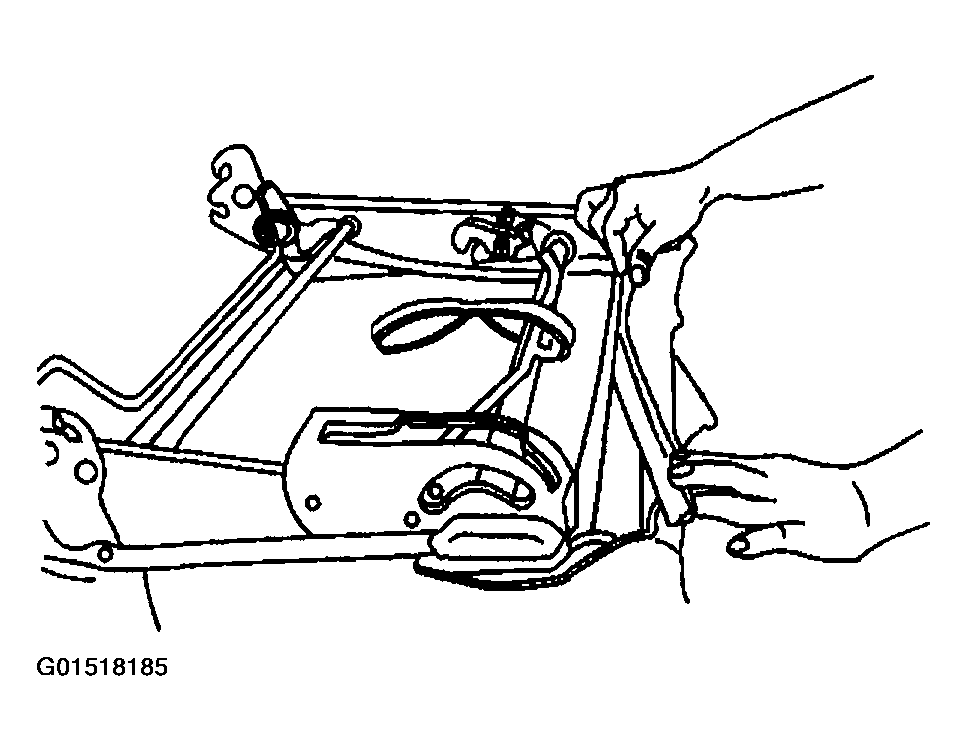

    Fig 1: Removing J-Hook Retainers On Rear Center Of Rear Seat Cushion Cover
    G01518185Courtesy of GENERAL MOTORS CORP.
  5. Remove the J-hook retainers on the left rear edge of the rear seat cushion cover.
    Fig 2: Removing J-Hook Retainers On Left Rear Edge Of Rear Seat Cushion Cover
    G01518186Courtesy of GENERAL MOTORS CORP.
  6. Remove the J-hook retainers on the left side of the rear seat cushion cover.
    Fig 3: Removing J-Hook Retainers On Left Side Of Rear Seat Cushion Cover
    G01518187Courtesy of GENERAL MOTORS CORP.
  7. Remove the J-hook retainers on the right side of the rear seat cushion cover.
    Fig 4: Removing J-Hook Retainers On Right Side Of Rear Seat Cushion Cover
    G01518188Courtesy of GENERAL MOTORS CORP.
  8. Remove the hog rings from the rear seat belt area.

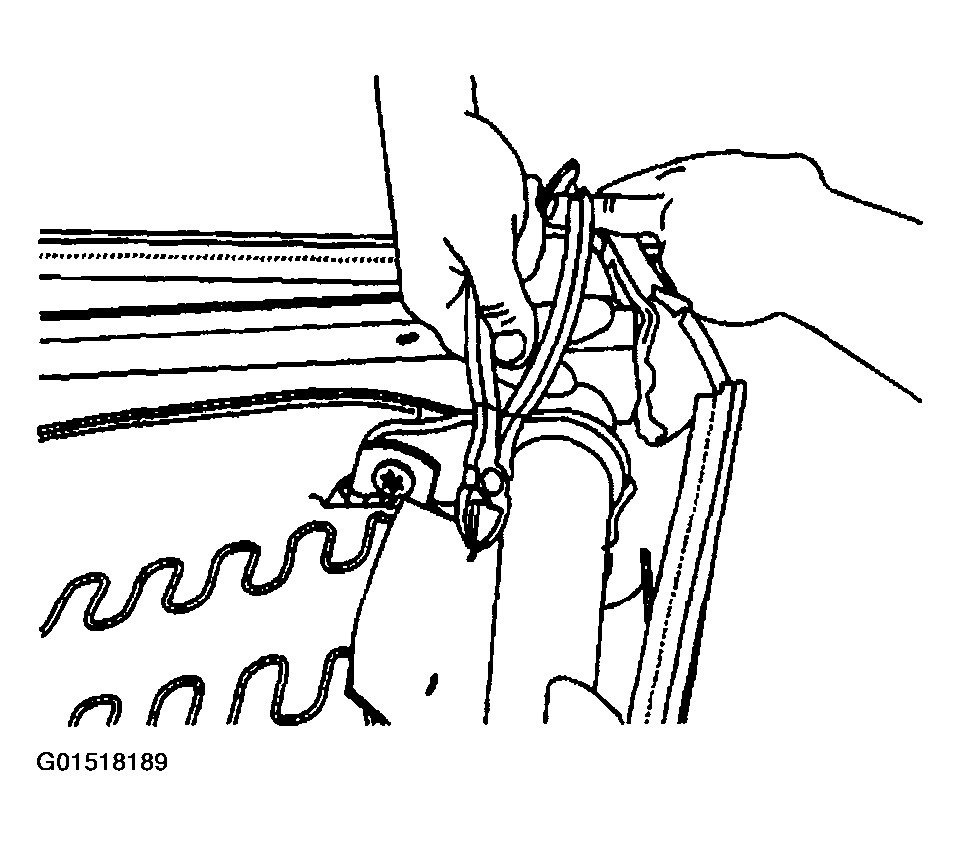

    Fig 5: Removing Hog Rings From Rear Seat Belt Area
    G01518189Courtesy of GENERAL MOTORS CORP.
  9. Remove the hog rings from the rear seat cushion cover.

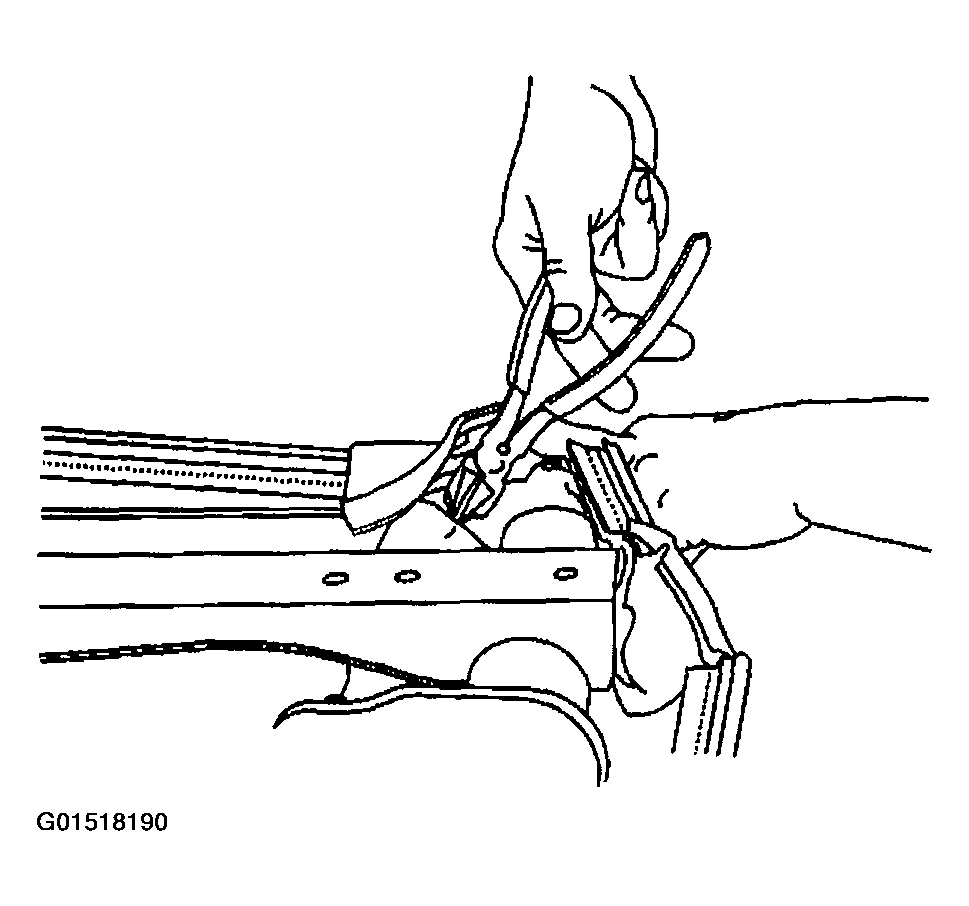

    Fig 6: Removing Hog Rings From Rear Seat Cushion Cover
    G01518190Courtesy of GENERAL MOTORS CORP.
  10. Remove the rear seat cushion cover from the bottom of the rear seat cushion.

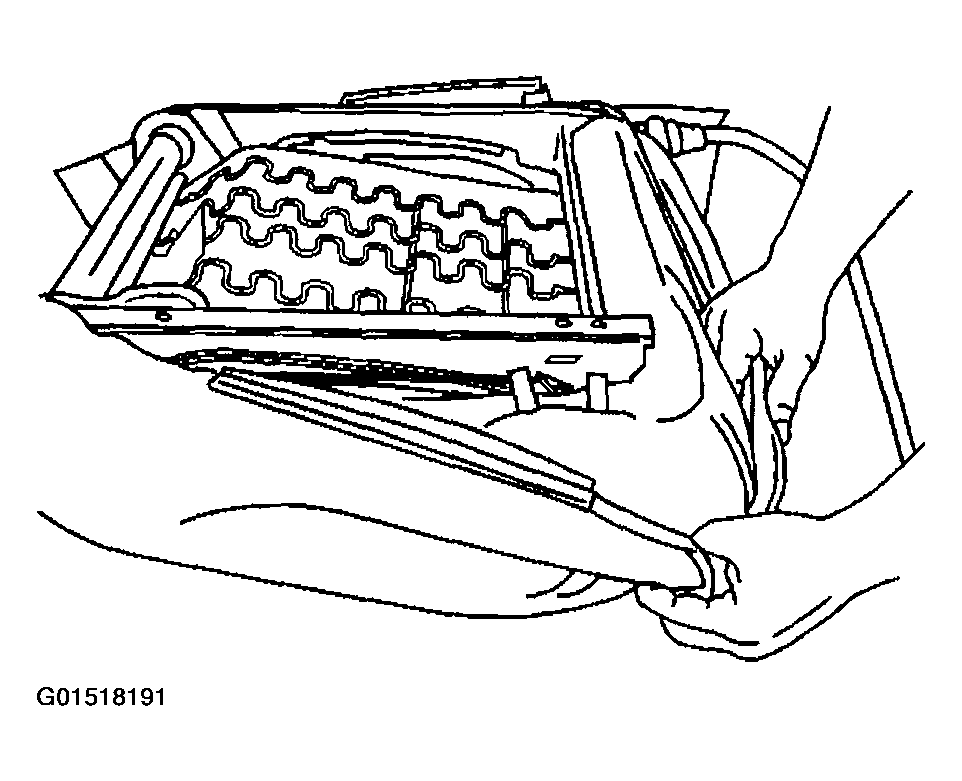

    Fig 7: Removing Rear Seat Cushion Cover From Bottom Of Rear Seat Cushion
    G01518191Courtesy of GENERAL MOTORS CORP.
  11. Remove the hog rings from the rear seat cushion cover.

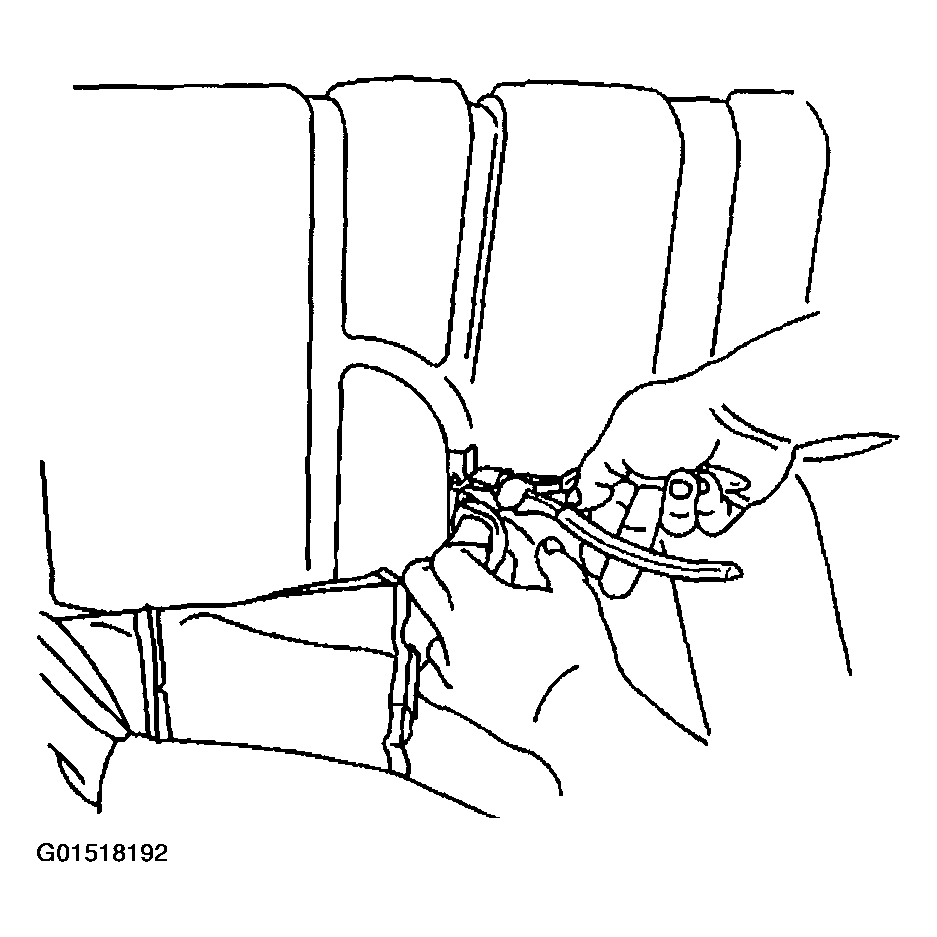

    Fig 8: Removing Hog Rings From Rear Seat Cushion Cover
    G01518192Courtesy of GENERAL MOTORS CORP.
  12. Remove the rear seat cushion cover from the rear seat cushion.

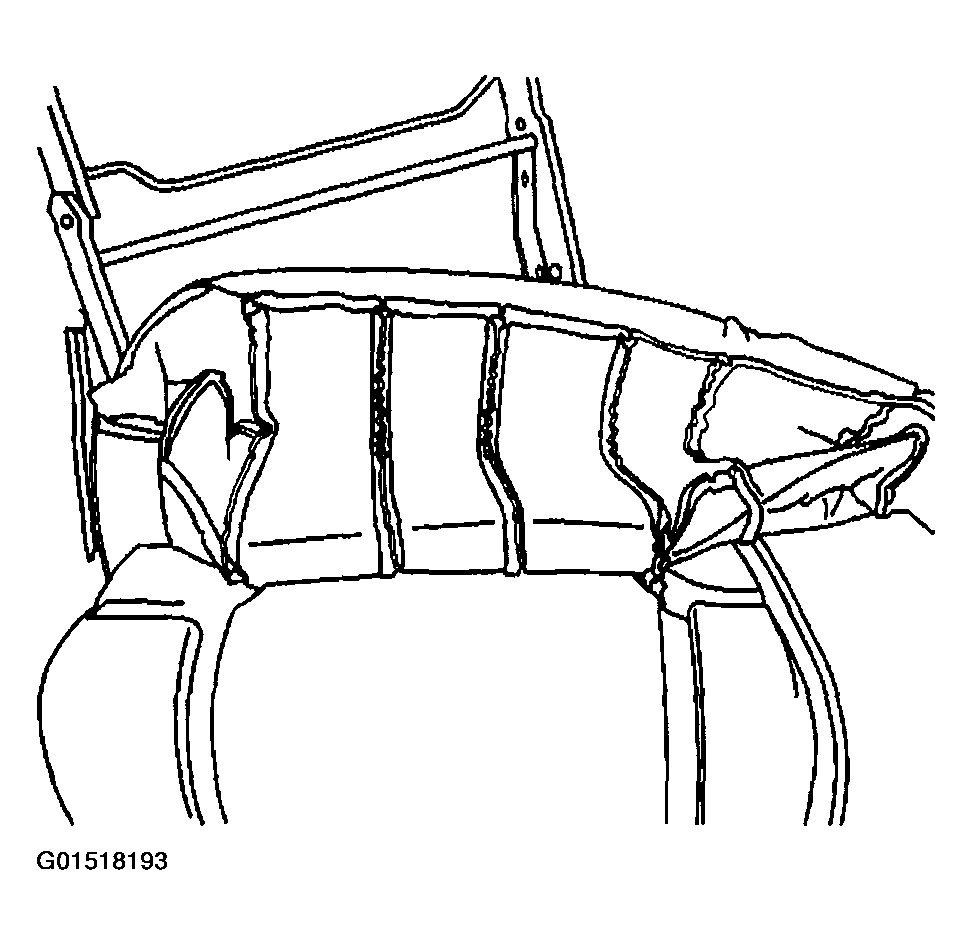

    Fig 9: Removing Rear Seat Cushion Cover From Rear Seat Cushion
    G01518193Courtesy of GENERAL MOTORS CORP.
