Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion cover onto the rear seat cushion.
  2. Install the hog rings from the rear seat cushion cover.

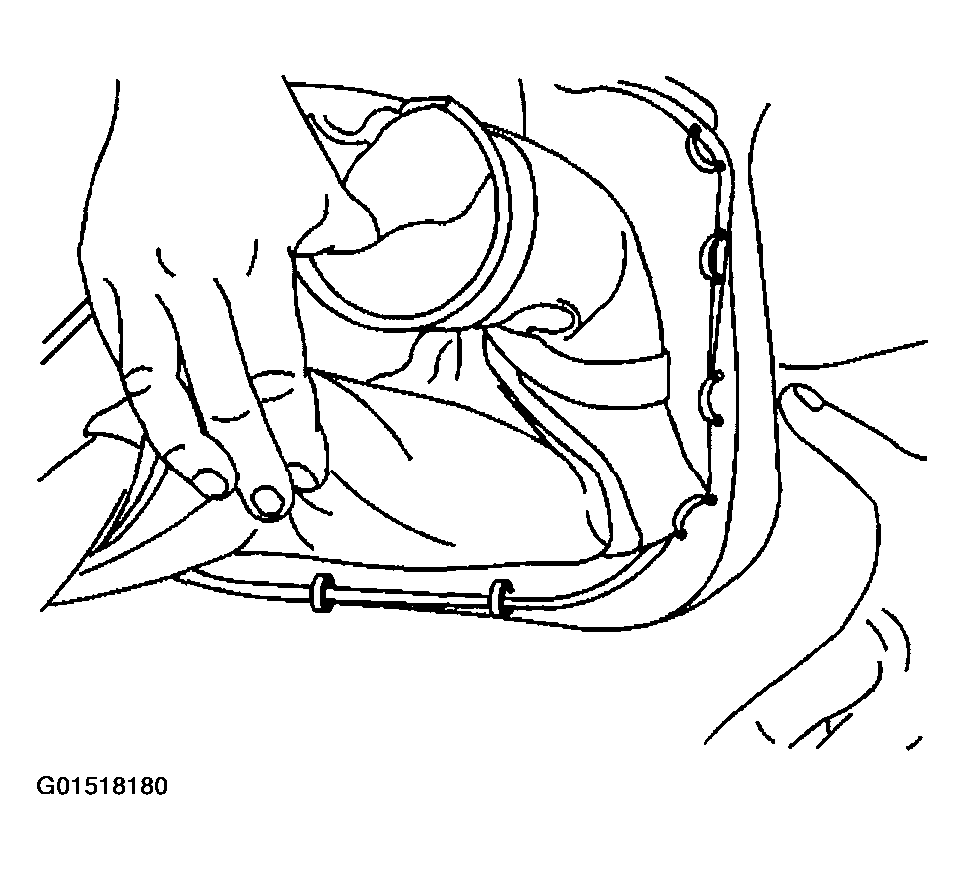

    Fig 1: Installing Seat Cushion Cover Onto Rear Seat Cushion
    G01518180Courtesy of GENERAL MOTORS CORP.
  3. Install the J-hook retainer on the front of the rear seat cushion cover.

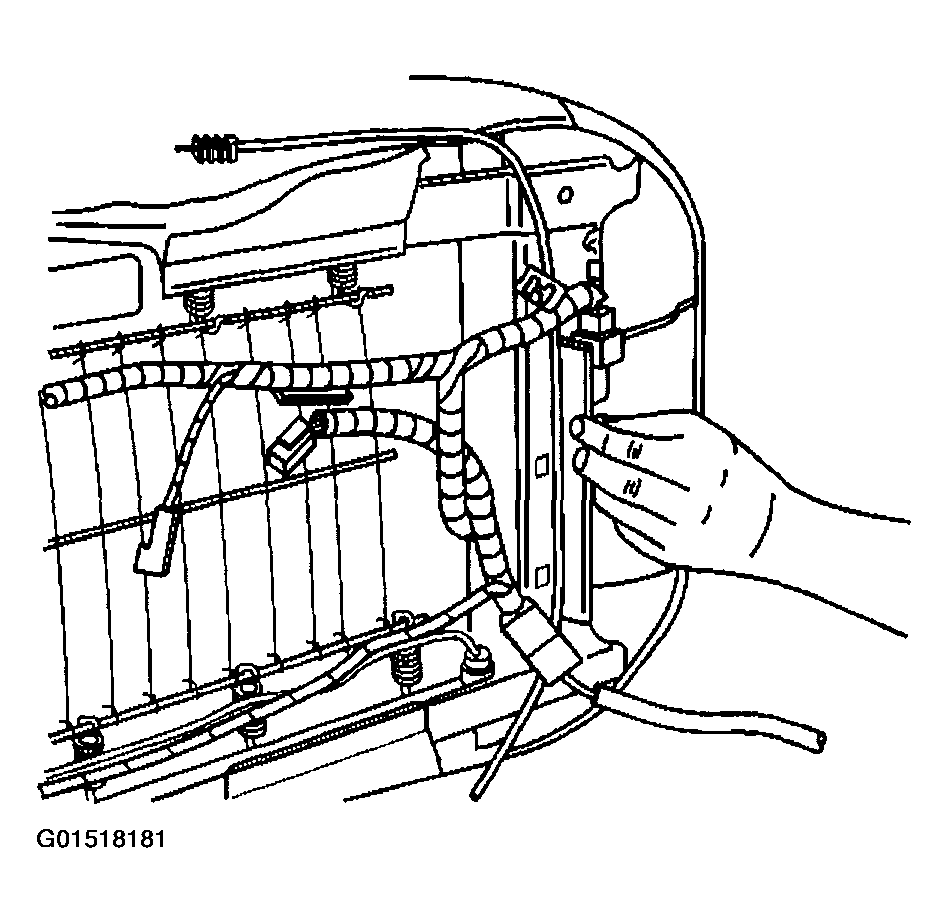

    Fig 2: Installing J-Hook Retainer On Front Of Rear Seat Cushion Cover
    G01518181Courtesy of GENERAL MOTORS CORP.
  4. Install the J-hook retainers on the sides of the rear seat cushion cover.

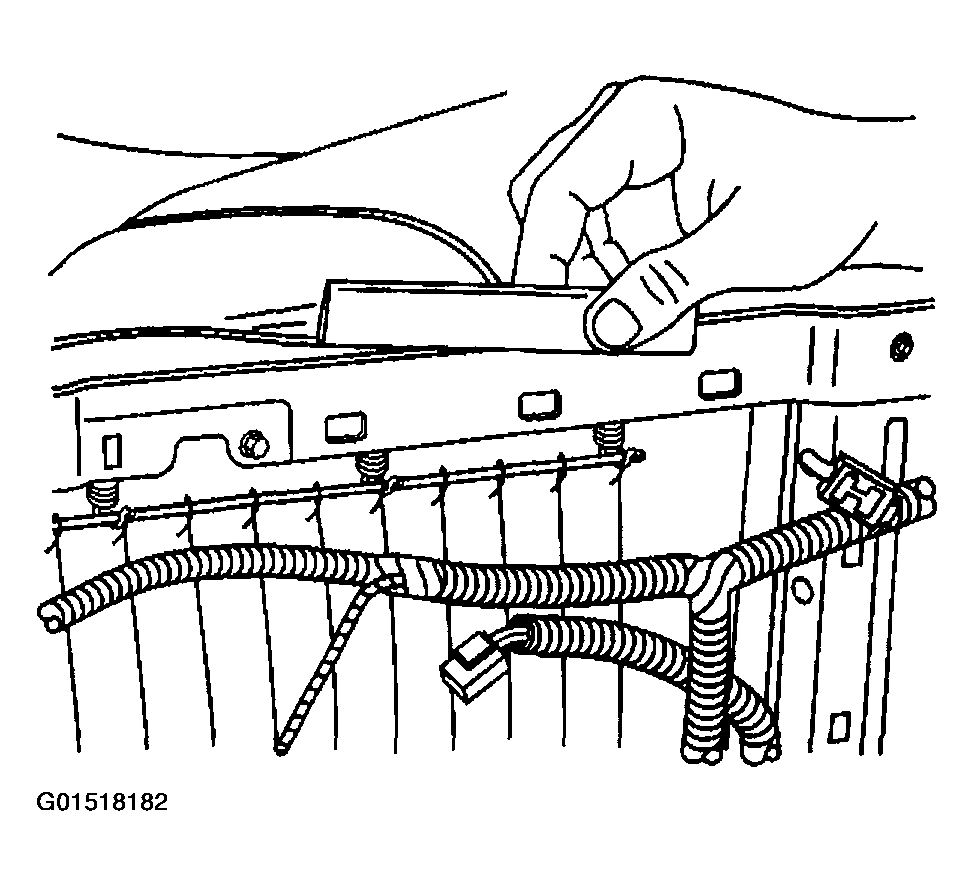

    Fig 3: Installing J-Hook Retainers On Sides Of Rear Seat Cushion Cover
    G01518182Courtesy of GENERAL MOTORS CORP.
  5. Install the J-hook retainer on the rear of the rear seat cushion cover.

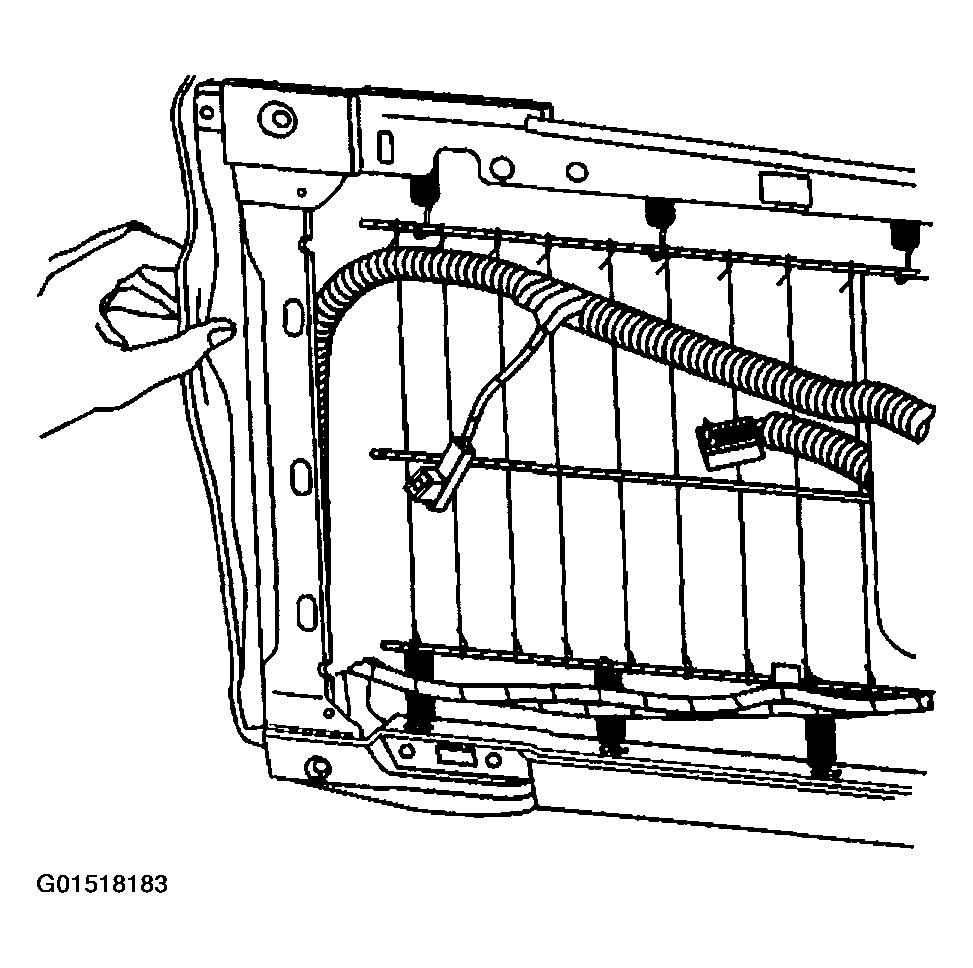

    Fig 4: Installing J-Hook Retainer On Rear Of Rear Seat Cushion Cover
    G01518183Courtesy of GENERAL MOTORS CORP.
  6. Install the hook and the loop retainers securing the seat cushion cover to the cushion, by pressing in place until fully seated.
  7. Install the rear seat adjuster. Refer to SEAT ADJUSTER REPLACEMENT - REAR (SPLIT BENCH)  .
  8. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (SPLIT BENCH)  or SEAT BACK REPLACEMENT - REAR (BUCKET)  .
  9. Install the rear bucket seat to the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
    Fig 5: Installing Hook And Loop Retainers
    G01518184Courtesy of GENERAL MOTORS CORP.
