Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion cover onto the front seat cushion.
  2. Install the hog rings from the front seat cushion cover.

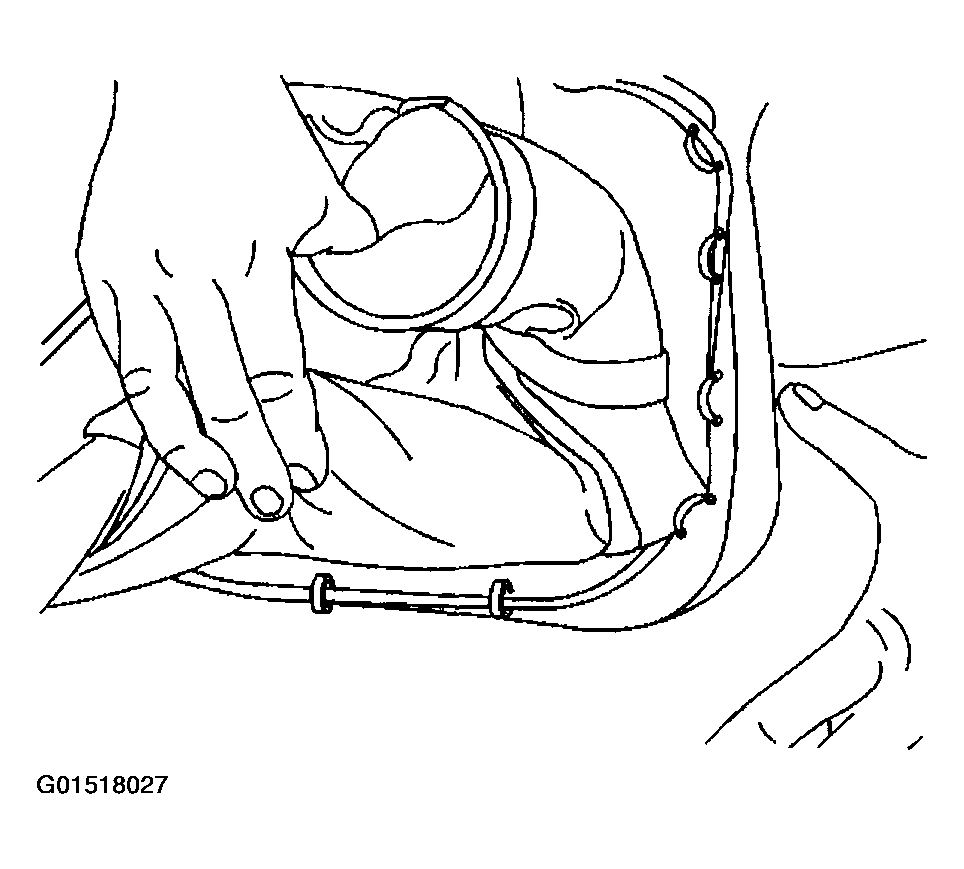

    Fig 1: Installing Seat Cushion Cover Onto Front Seat Cushion
    G01518027Courtesy of GENERAL MOTORS CORP.
  3. Install the J-hook retainer on the front of the front seat cushion cover.

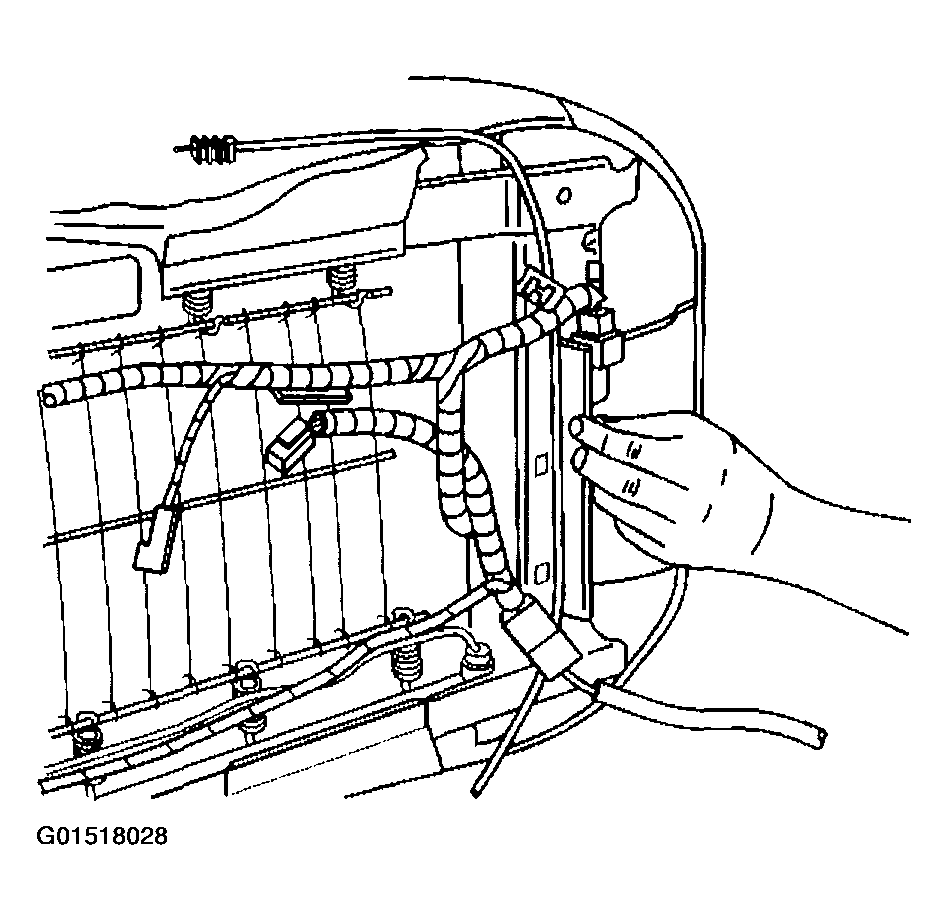

    Fig 2: Installing J-Hook Retainer On Front Of Front Seat Cushion Cover
    G01518028Courtesy of GENERAL MOTORS CORP.
  4. Install the J-hook retainers on the sides of the front seat cushion cover.

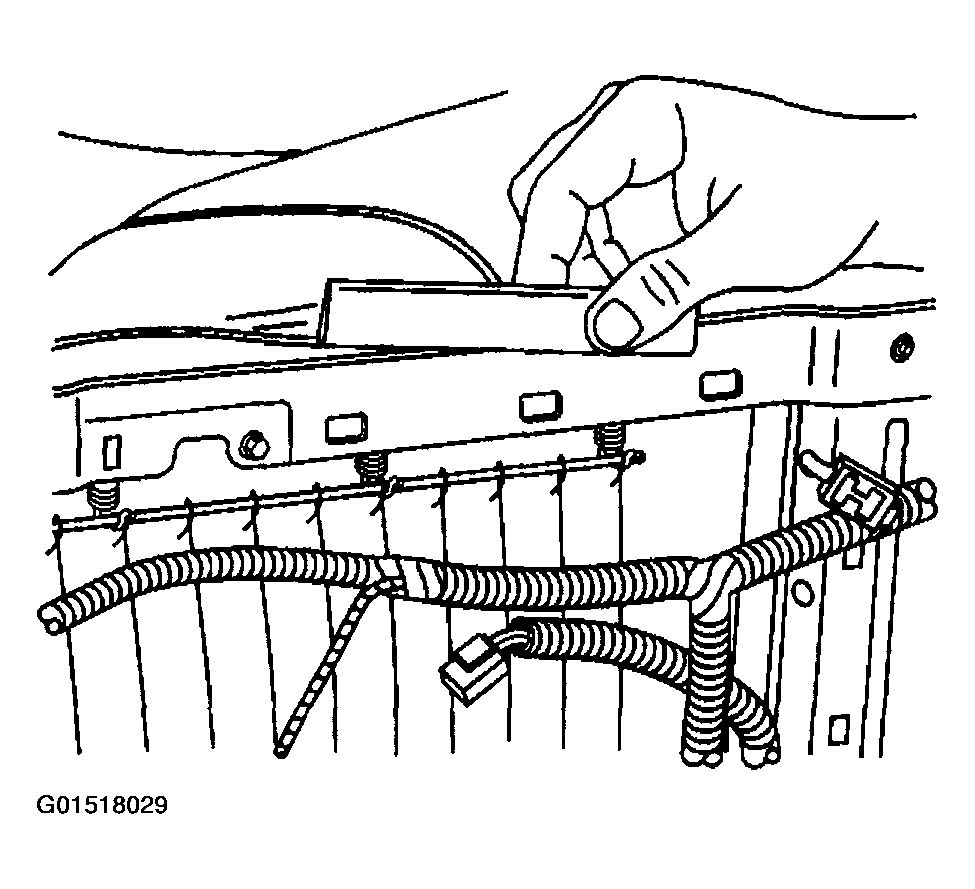

    Fig 3: Installing J-Hook Retainers On Sides Of Front Seat Cushion Cover
    G01518029Courtesy of GENERAL MOTORS CORP.
  5. Install the J-hook retainer on the rear of the front seat cushion cover.

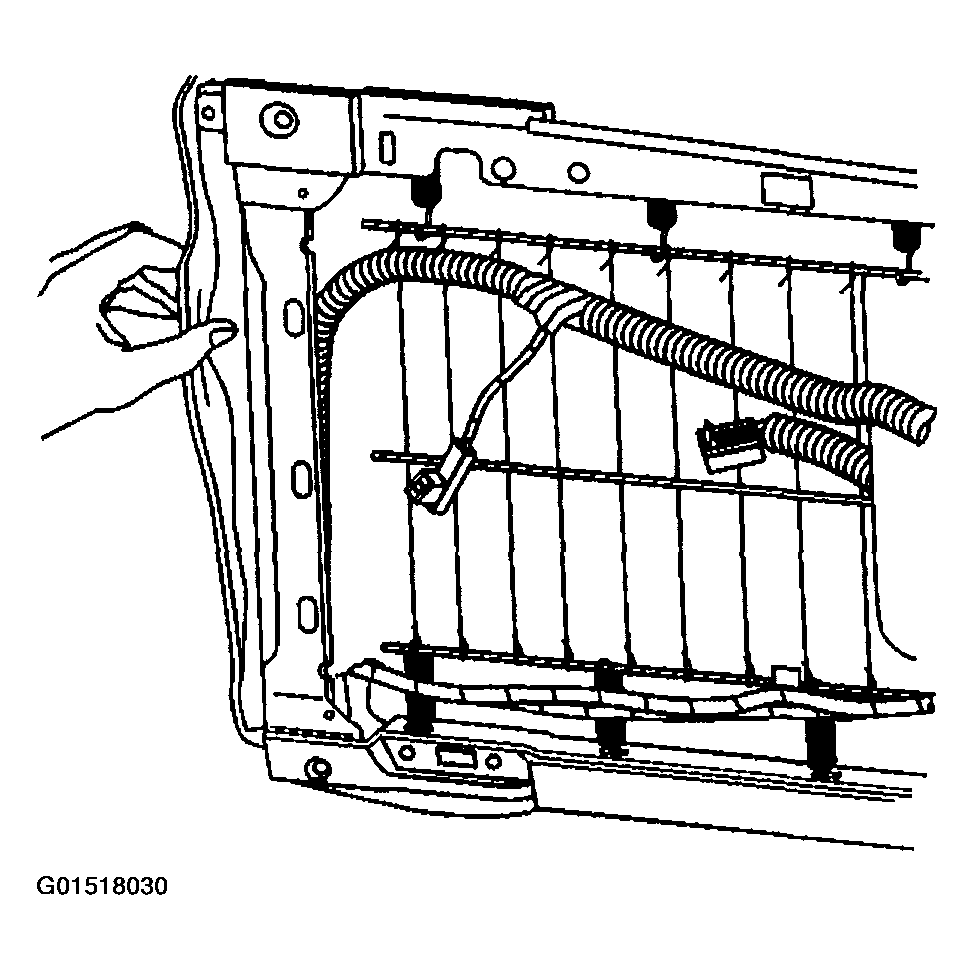

    Fig 4: Installing J-Hook Retainer On Rear Of Front Seat Cushion Cover
    G01518030Courtesy of GENERAL MOTORS CORP.
  6. Install the hook and the loop retainers securing the seat cushion cover to the cushion, by pressing in place until fully seated.
  7. Install the front seat adjuster. Refer to SEAT ADJUSTER REPLACEMENT - FRONT  .
  8. Connect the electrical connector for the heated seat, if equipped.
  9. Install the front seat back. Refer to SEAT BACK REPLACEMENT - FRONT  .
  10. Install the front bucket seat to the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .
    Fig 5: Installing Hook And Loop Retainers
    G01518031Courtesy of GENERAL MOTORS CORP.
