Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the rear seat back pivot stud to the rear seat pivot point.
  2. Install the seat back to the pivot point. Press the seat back into the socket until fully seated.

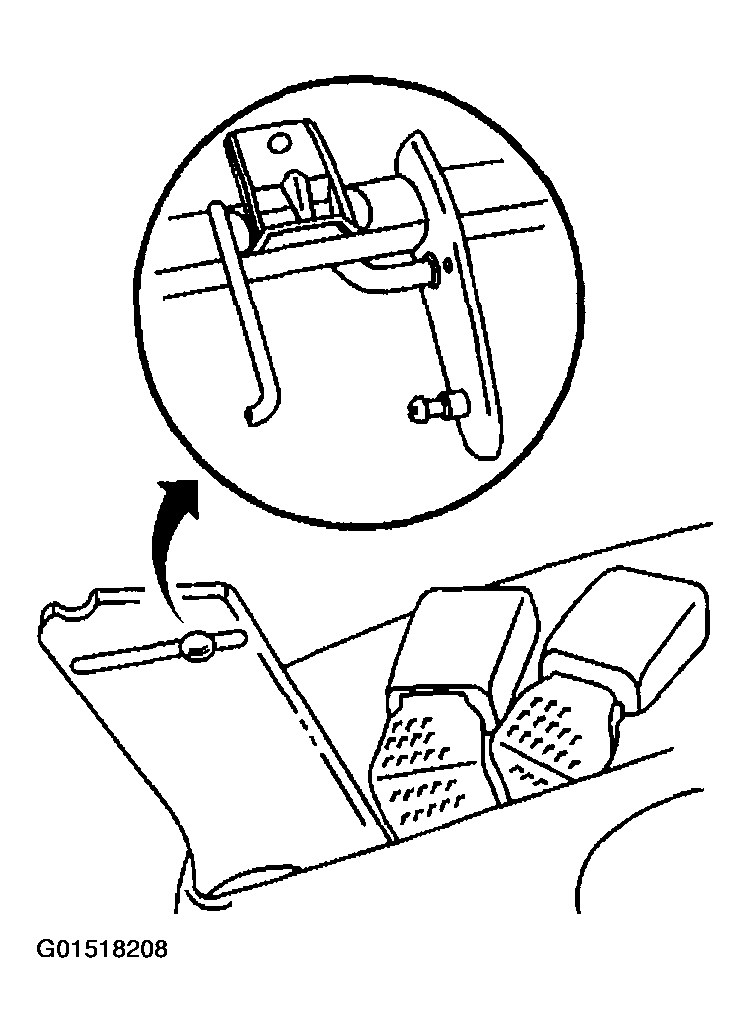

    Fig 1: Installing Seat Back To Pivot Point
    G01518208Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts to the seat back recliner hinges.

    Tighten

    Tighten the bolts to 40 N.m (30 lb ft).

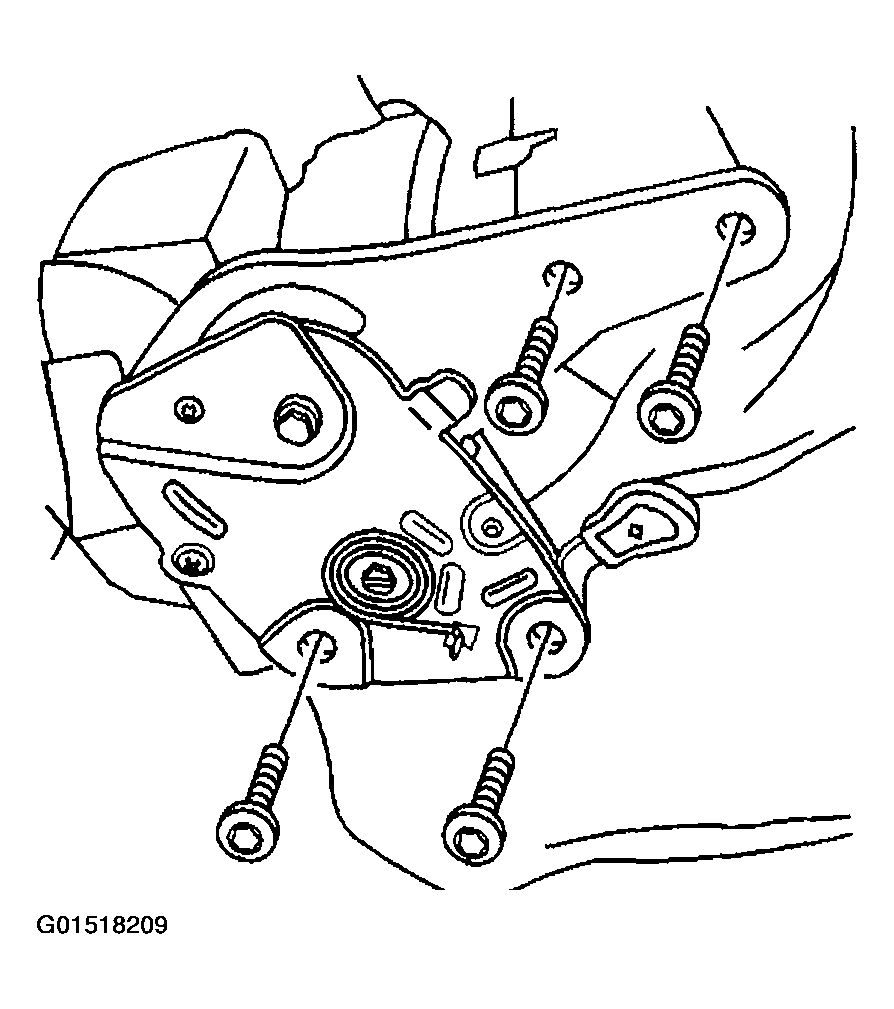

    Fig 2: Installing Bolts To Seat Back Recliner Hinges
    G01518209Courtesy of GENERAL MOTORS CORP.
  4. Install the lower J-hook retainer.
  5. Install the trim panel to the seat back. Refer to TRIM PANEL REPLACEMENT - REAR SEAT BACK  .
  6. Install the outer trim panel to the seat cushion. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT - REAR SEAT (BUCKET)  or SEAT CUSHION OUTER TRIM PANEL REPLACEMENT - REAR SEAT (SPLIT BENCH)  .
  7. Inspect the seat back for proper operation.
  8. Install the split bench seat. Refer to SEAT REPLACEMENT - REAR 50-50 SPLIT  .

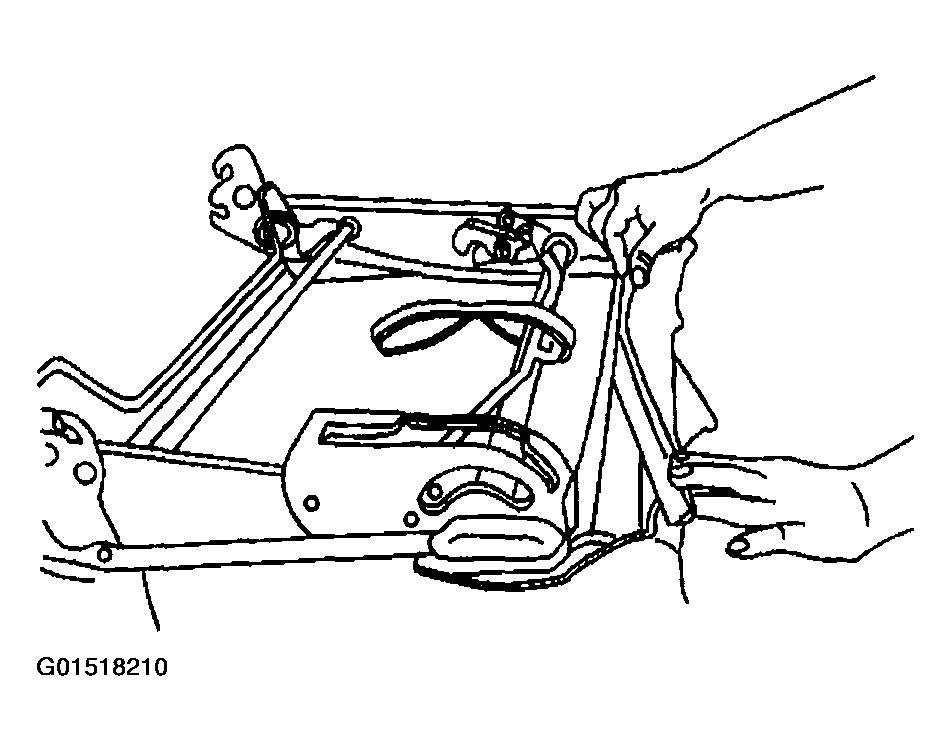

    Fig 3: Installing Lower J-Hook Retainer
    G01518210Courtesy of GENERAL MOTORS CORP.
