Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. If required, install the trim cover to the inner side of the seat back recliner.
    Fig 1: Installing Trim Cover To Inner Side Of Seat Back Recliner
    G01518218Courtesy of GENERAL MOTORS CORP.
  2. Install the seat back recliner to the seat.

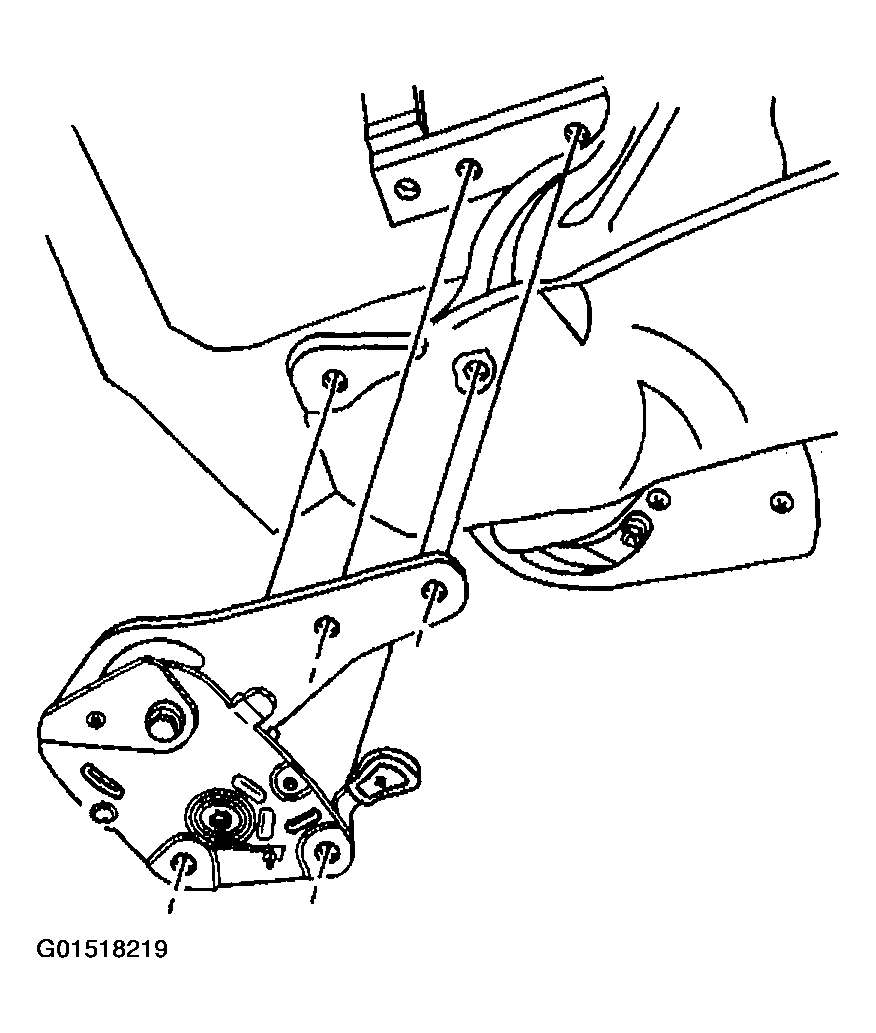

    Fig 2: Installing Seat Back Recliner To Seat
    G01518219Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts to the seat back recliner.

    Tighten

    Tighten the bolts to 40 N.m (30 lb ft).

  4. Move the cover and the pad over the seat back recliner bolts.
  5. Install the outer trim panel to the seat cushions. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT - REAR SEAT (BUCKET)  or SEAT CUSHION OUTER TRIM PANEL REPLACEMENT - REAR SEAT (SPLIT BENCH)  .
  6. Install the split bench seat. Refer to SEAT REPLACEMENT - REAR 50-50 SPLIT  .

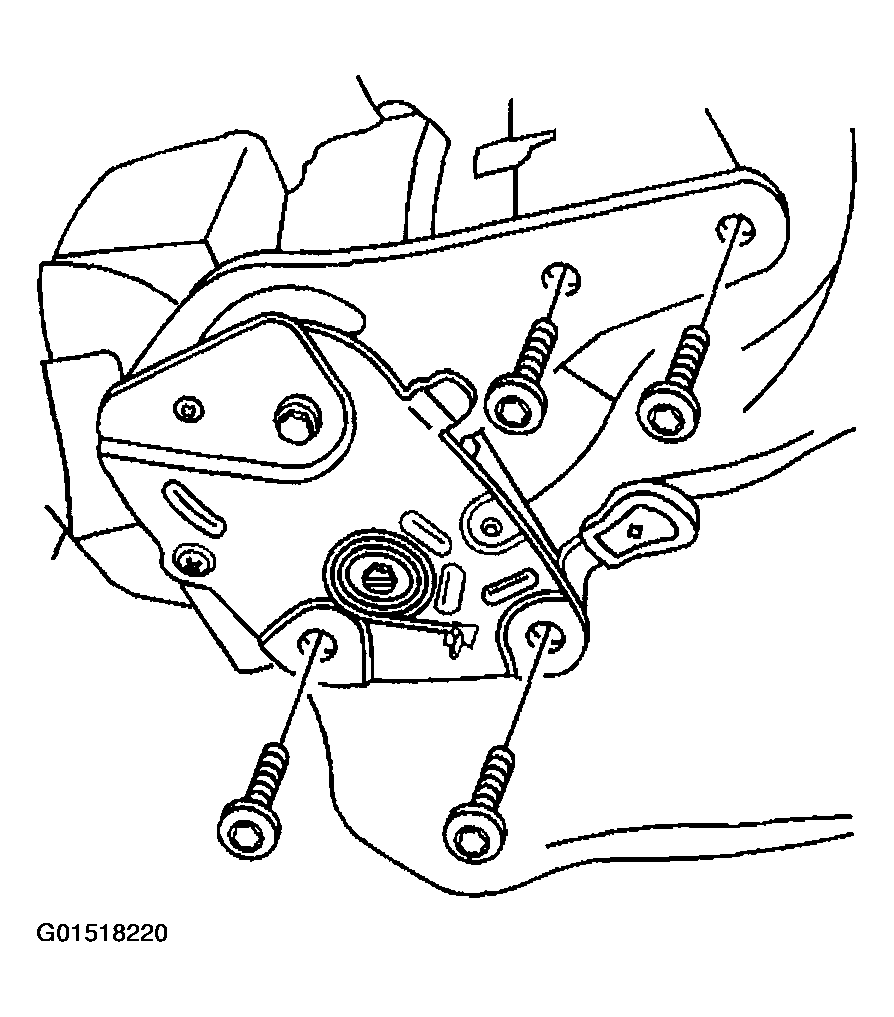

    Fig 3: Installing Bolts To Seat Back Recliner
    G01518220Courtesy of GENERAL MOTORS CORP.
