Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back recliner to the seat.
  2. Install the recliner seat back bolts.

    Tighten

    Tighten the bolts to 40 N.m (30 lb ft).

  3. Move the seat back cover and pad over the seat back recliner bolts.

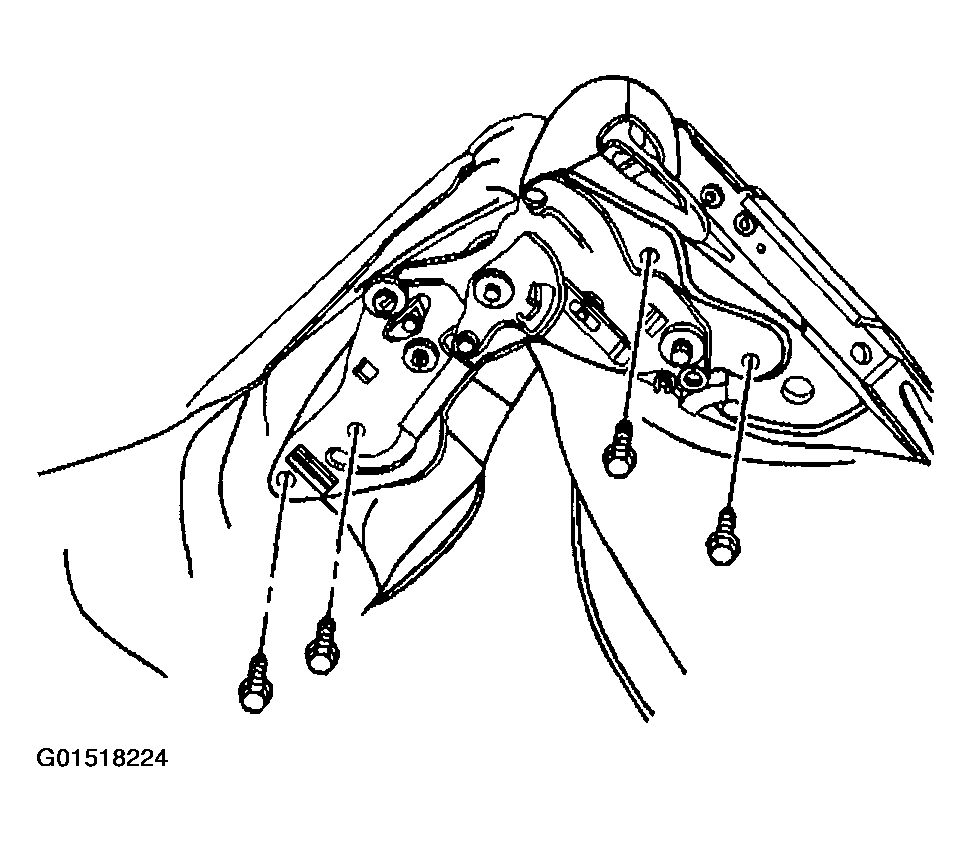

    Fig 1: Installing Recliner Seat Back Bolts
    G01518224Courtesy of GENERAL MOTORS CORP.
  4. Install the cable to the seat back recliner.

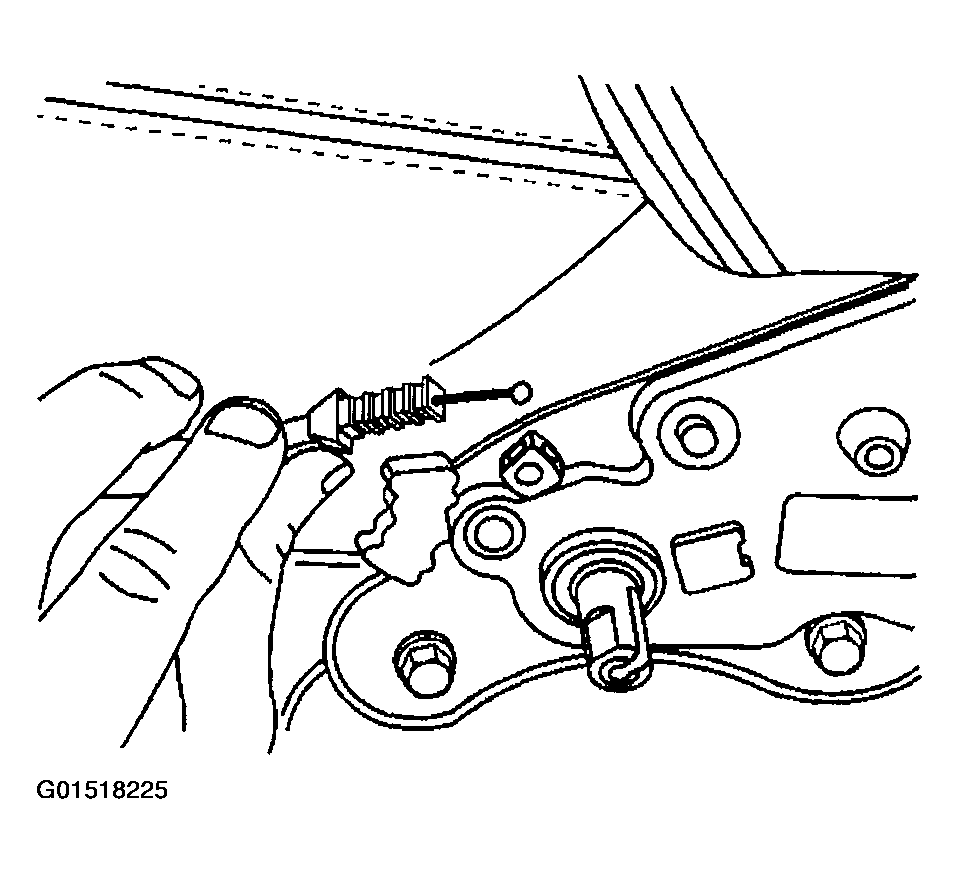

    Fig 2: Installing Cable To Seat Back Recliner
    G01518225Courtesy of GENERAL MOTORS CORP.
  5. Install the cable retainer to the seat back recliner, pushing down on the retainer until fully seated.
  6. Install the outer trim panel to the rear seat cushion. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT - REAR SEAT (BUCKET)  or SEAT CUSHION OUTER TRIM PANEL REPLACEMENT - REAR SEAT (SPLIT BENCH)  .
  7. Install the inner trim panel to the rear seat cushion. Refer to SEAT CUSHION INNER PANEL REPLACEMENT - REAR  .
  8. Install the rear bucket seat. Refer to SEAT REPLACEMENT - REAR BUCKET  .

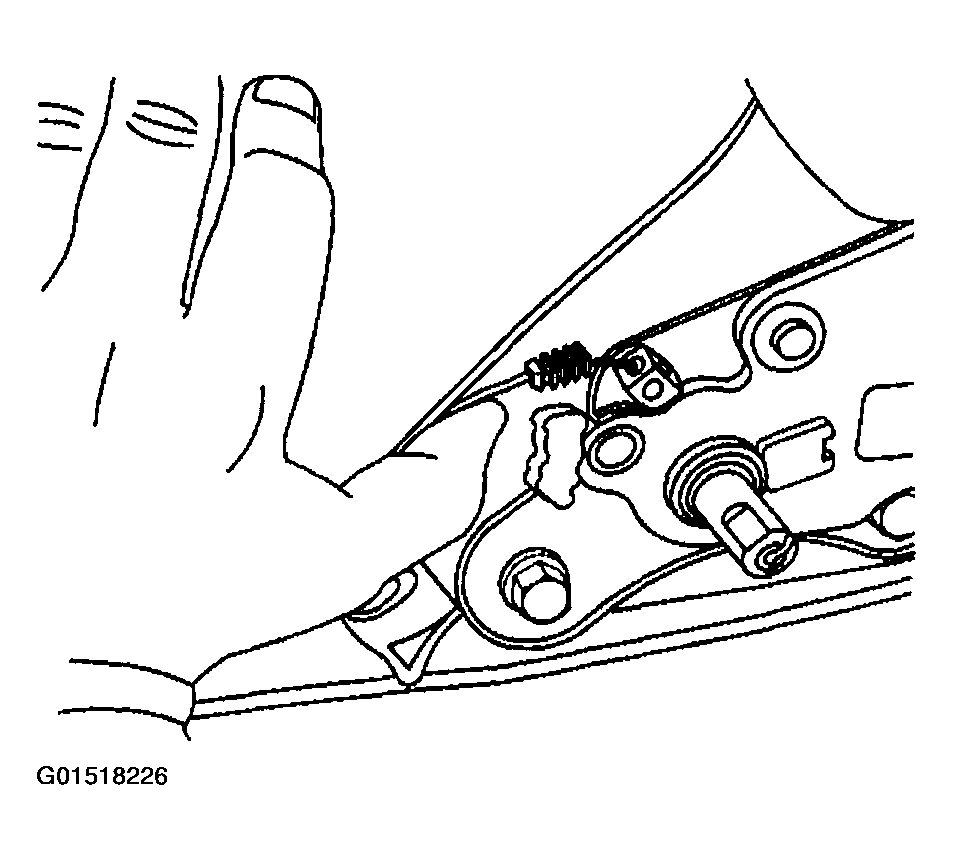

    Fig 3: Installing Cable Retainer To Seat Back Recliner
    G01518226Courtesy of GENERAL MOTORS CORP.
