Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw form the seat back recliner handle.

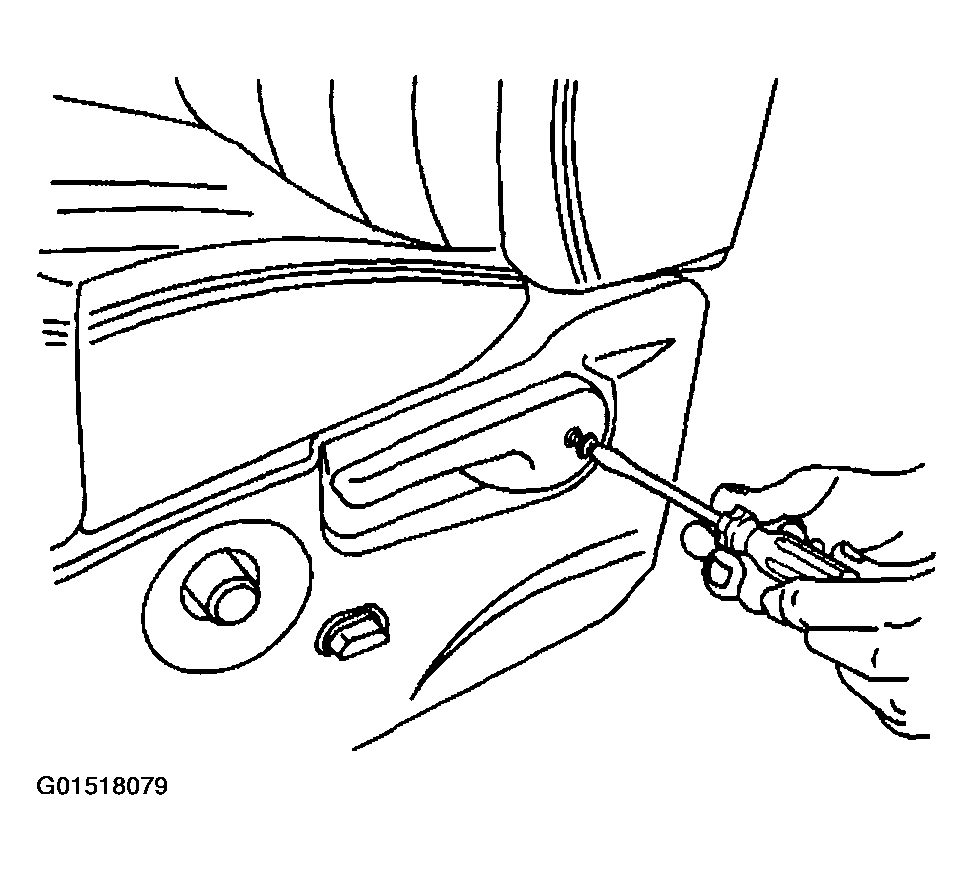

    Fig 1: Removing Screw Form Seat Back Recliner Handle
    G01518079Courtesy of GENERAL MOTORS CORP.
  2. Remove the seat back recliner handle from the seat back recliner handle shaft.

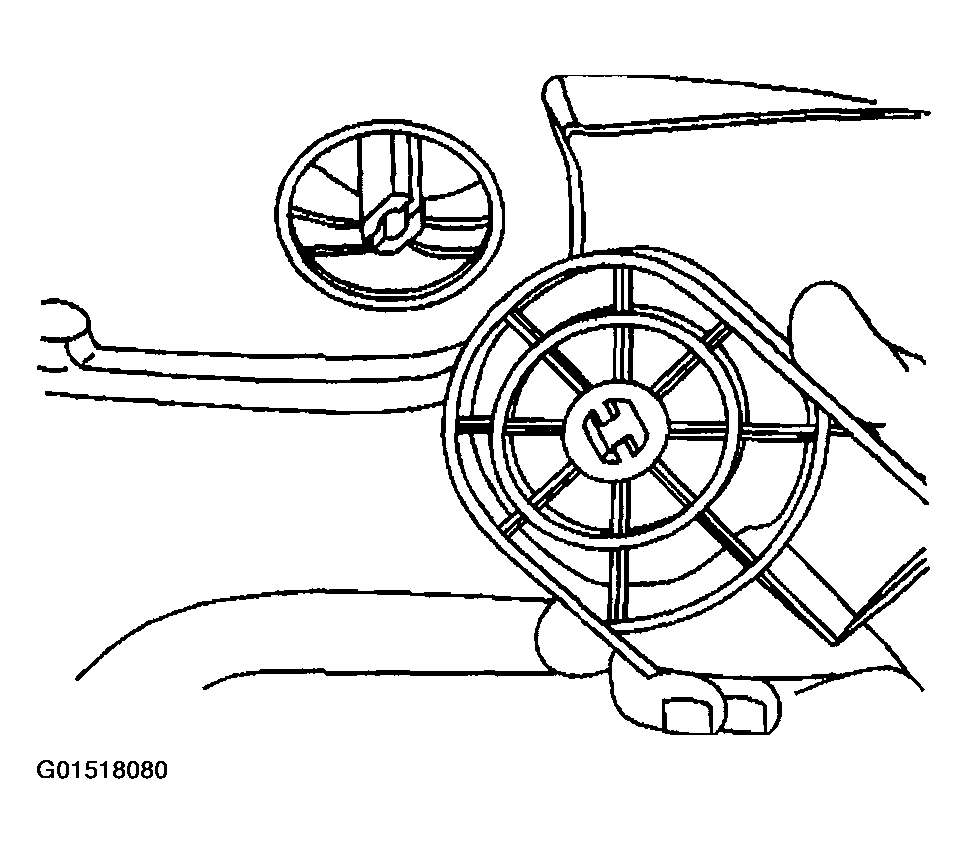

    Fig 2: Removing Seat Back Recliner Handle From Seat Back Recliner Handle Shaft
    G01518080Courtesy of GENERAL MOTORS CORP.
