Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back pad to the rear seat back frame.

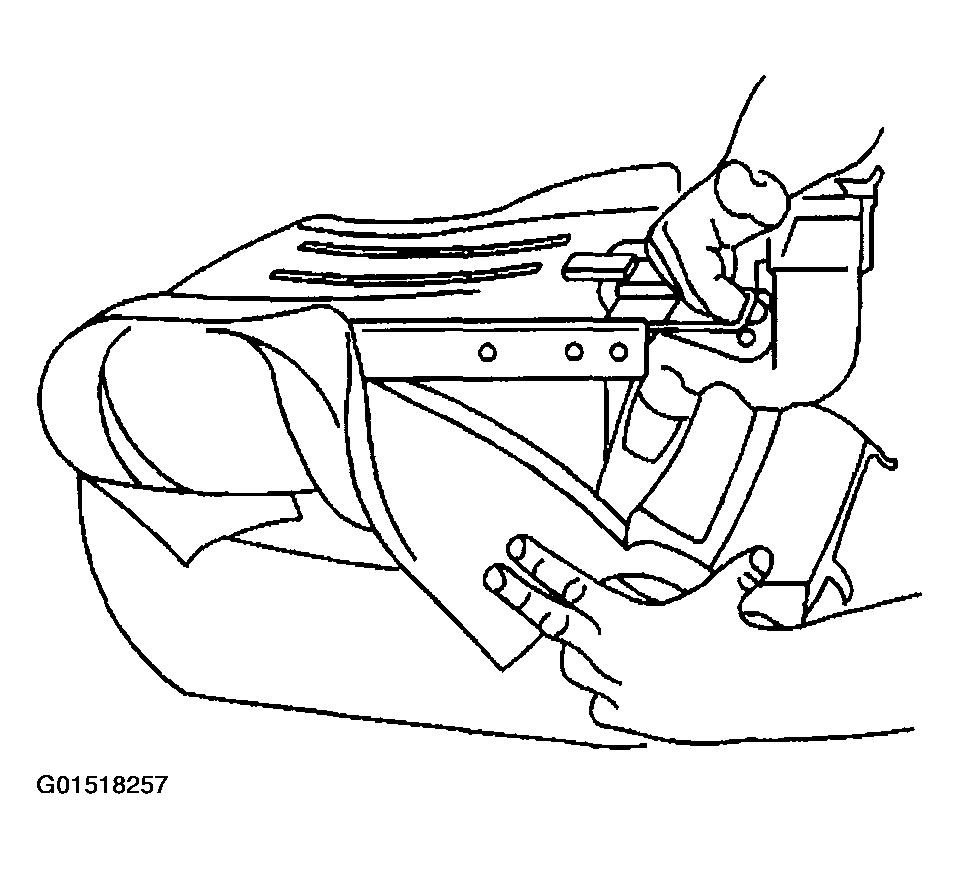

    Fig 1: Installing Rear Seat Back Pad To Rear Seat Back Frame
    G01518257Courtesy of GENERAL MOTORS CORP.
  2. Install the hog rings to the rear seat back pad.
  3. Install the rear seat back cover. Refer to SEAT BACK COVER REPLACEMENT - REAR (BUCKET)  or SEAT BACK COVER REPLACEMENT - REAR (SPLIT BENCH)  .

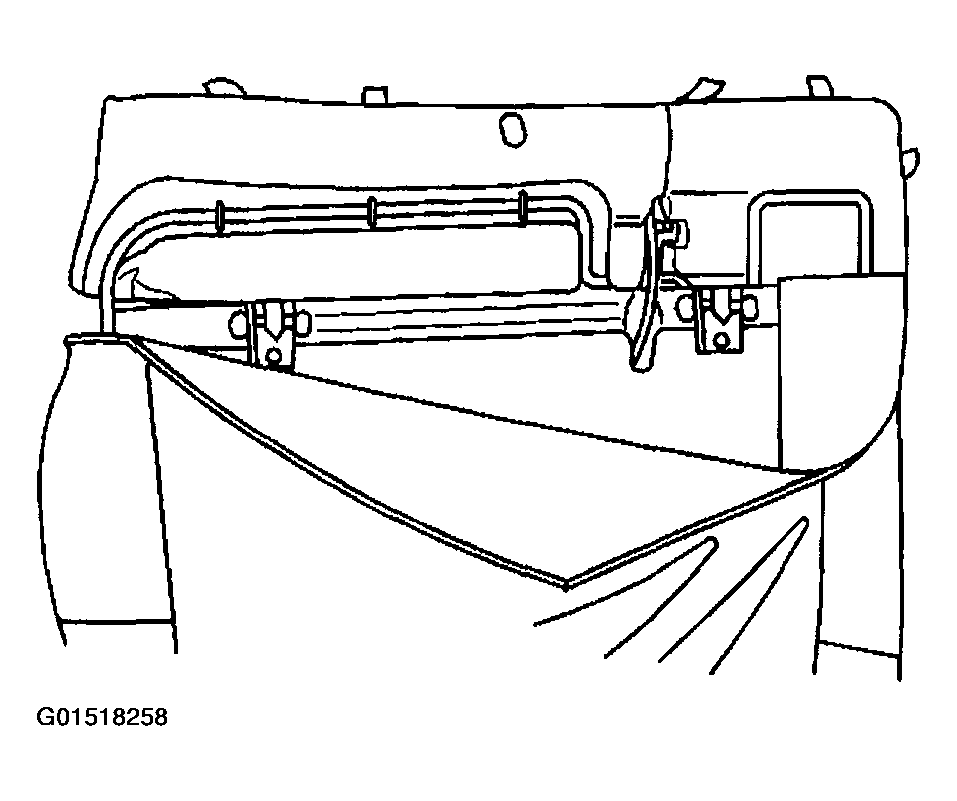

    Fig 2: Installing Hog Rings To Rear Seat Back Pad
    G01518258Courtesy of GENERAL MOTORS CORP.
