Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back pad to the rear seat back frame. Refer to SEAT BACK PAD REPLACEMENT - REAR (BUCKET)  or SEAT BACK PAD REPLACEMENT - REAR (SPLIT BENCH)  .
  2. Install the rear seat back cushion cover. Refer to SEAT BACK COVER REPLACEMENT - REAR (BUCKET)  or SEAT BACK COVER REPLACEMENT - REAR (SPLIT BENCH)  .
  3. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (SPLIT BENCH)  or SEAT BACK REPLACEMENT - REAR (BUCKET)  .
  4. Install the rear seat. Refer to SEAT REPLACEMENT - REAR BUCKET  .

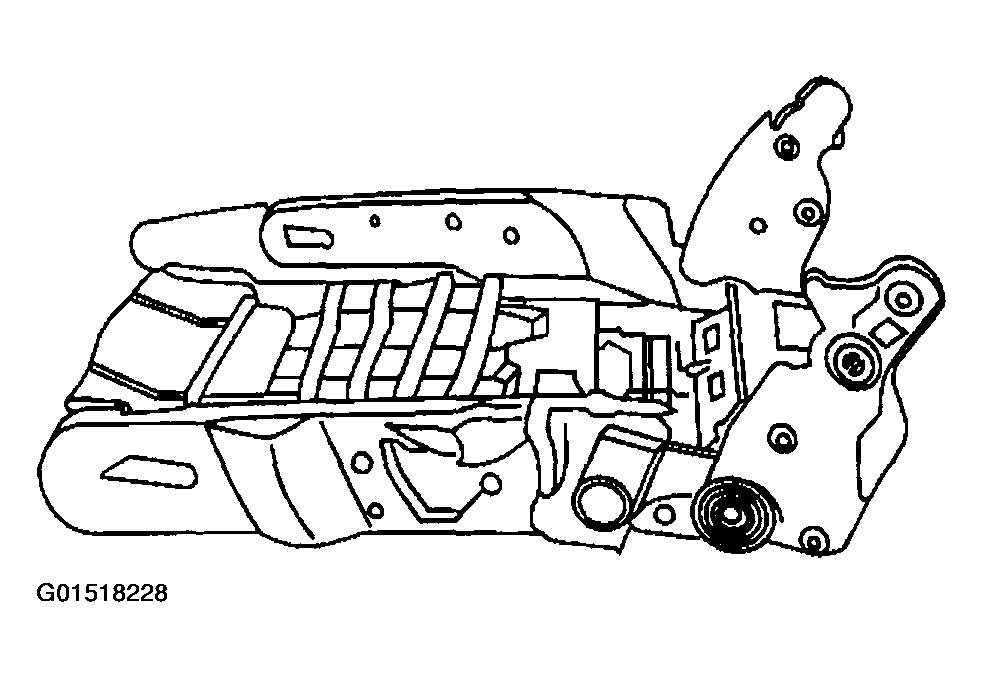

    Fig 1: Installing Seat Back Frame - Rear (Bucket)
    G01518228Courtesy of GENERAL MOTORS CORP.
