Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back cover to the pad.

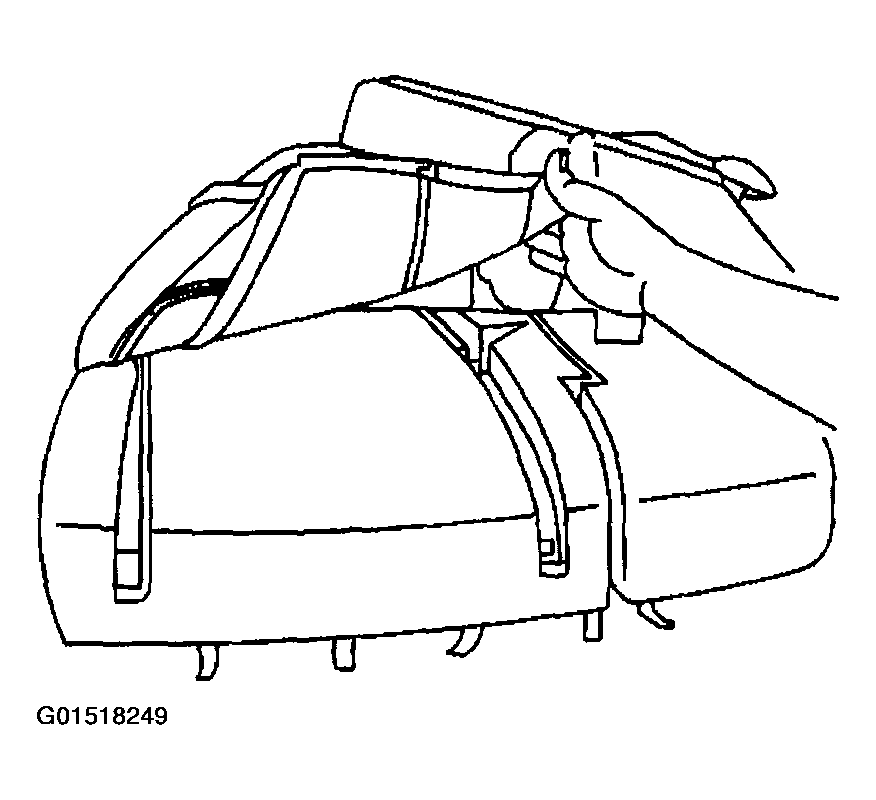

    Fig 1: Installing Rear Seat Back Cover To Pad
    G01518249Courtesy of GENERAL MOTORS CORP.
  2. Install the rear seat back cover to the seat back, by pulling the seat back cover down and over the pad.

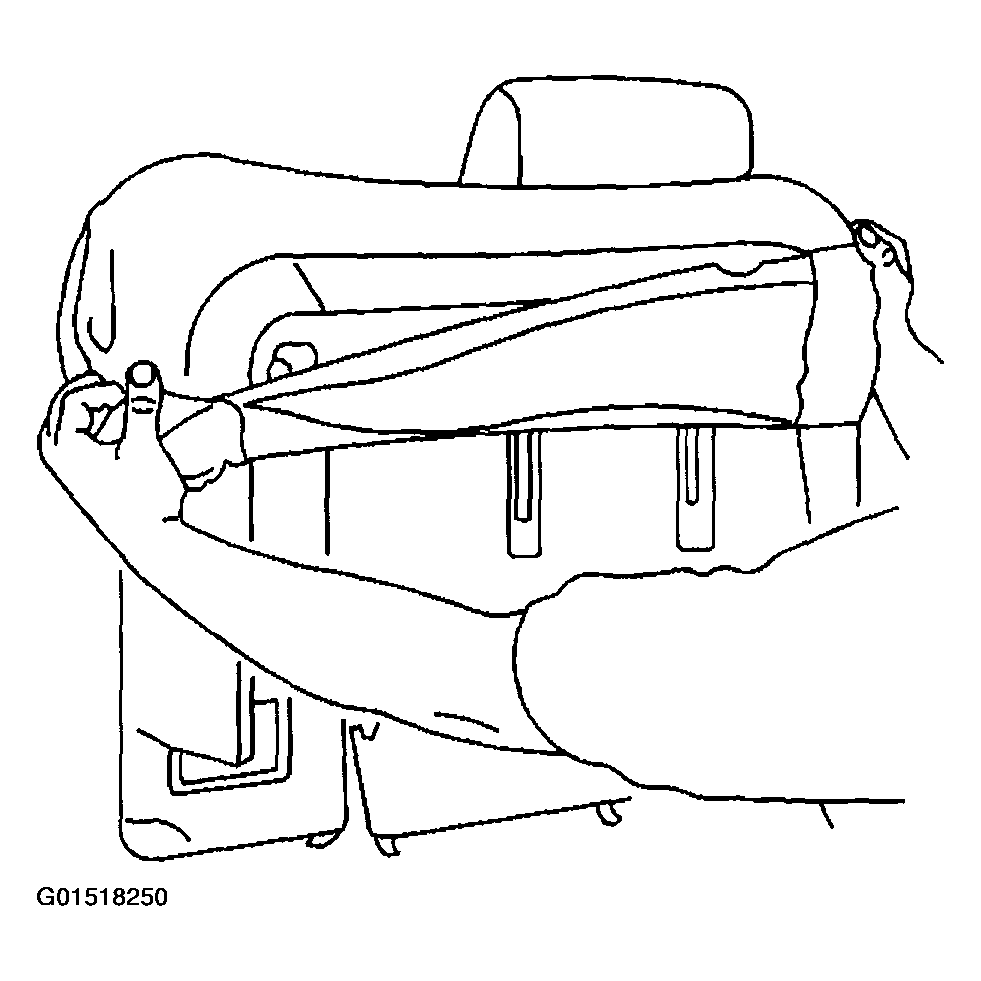

    Fig 2: Pulling Seat Back Cover Down And Over Pad
    G01518250Courtesy of GENERAL MOTORS CORP.
  3. Install the hog rings to the rear seat back cover to the pad.

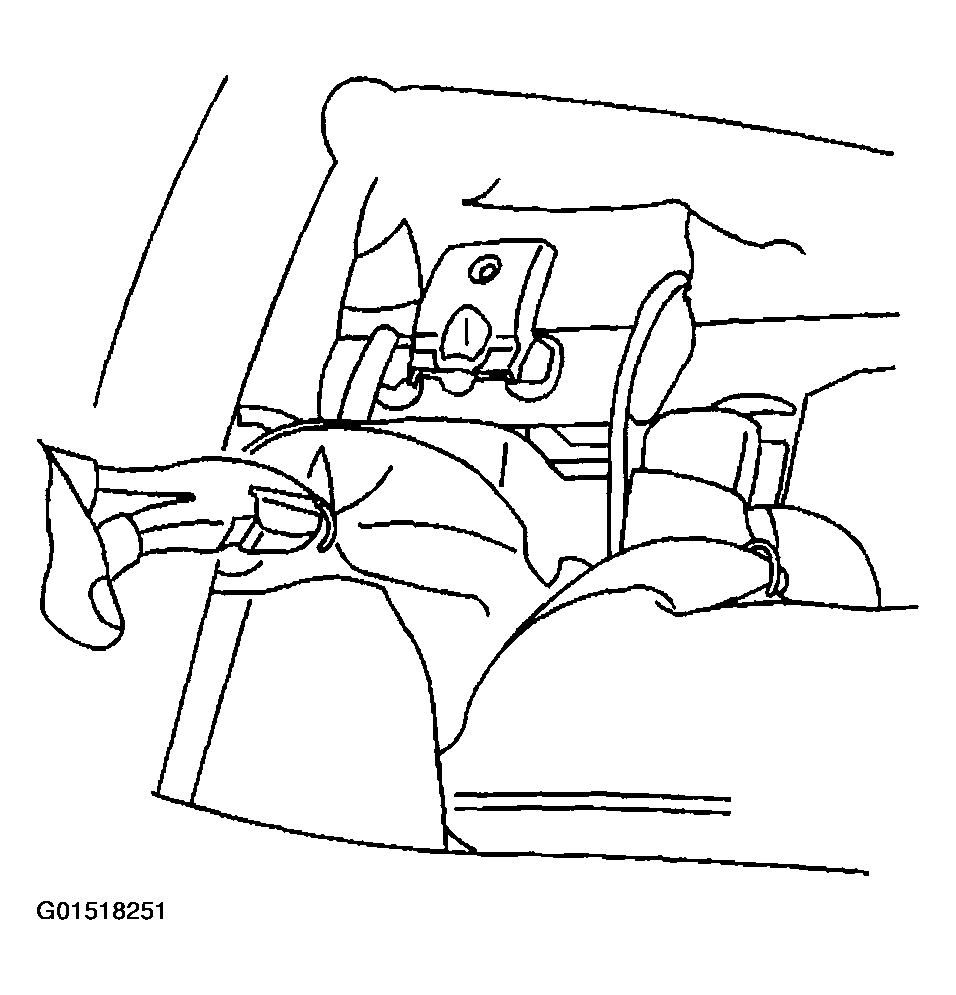

    Fig 3: Installing Hog Rings To Rear Seat Back Cover To Pad
    G01518251Courtesy of GENERAL MOTORS CORP.
  4. Install the J-hook retainer at the bottom of the seat back cover.
  5. Install the hook and the loop retainers securing the rear seat back cover to the pad.
  6. Install the rear seat back trim panel.
  7. Install the rear seat back to the rear seat. Refer to SEAT BACK REPLACEMENT - REAR (SPLIT BENCH)  or SEAT BACK REPLACEMENT - REAR (BUCKET)  .
  8. Install the rear seat headrest. Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT  .
  9. Install the rear seat back trim panel. Refer to TRIM PANEL REPLACEMENT - REAR SEAT BACK  .
  10. Install the rear split bench seat. Refer to SEAT REPLACEMENT - REAR 50-50 SPLIT  .

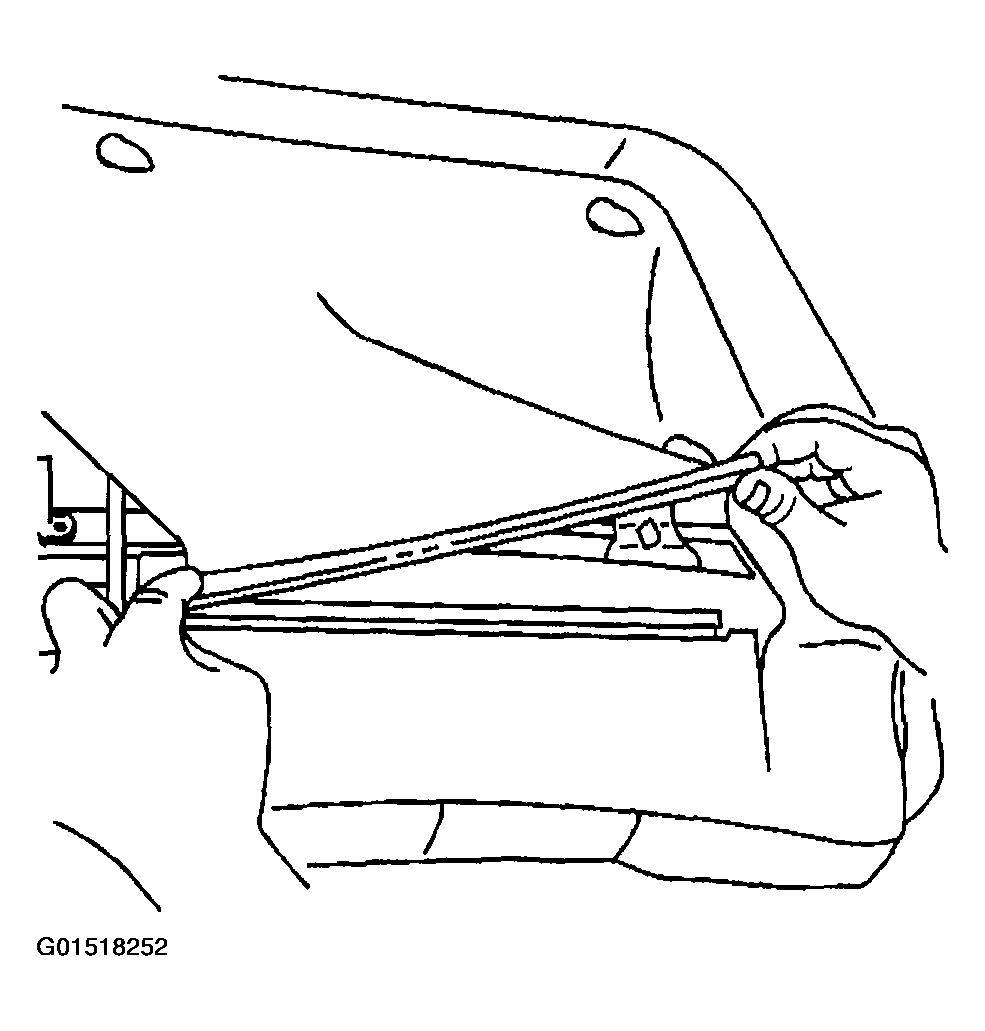

    Fig 4: Installing J-Hook Retainer At Bottom Of Seat Back Cover
    G01518252Courtesy of GENERAL MOTORS CORP.
