Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the screws from the front seat track covers.
  3. Remove the track covers from the front seat.

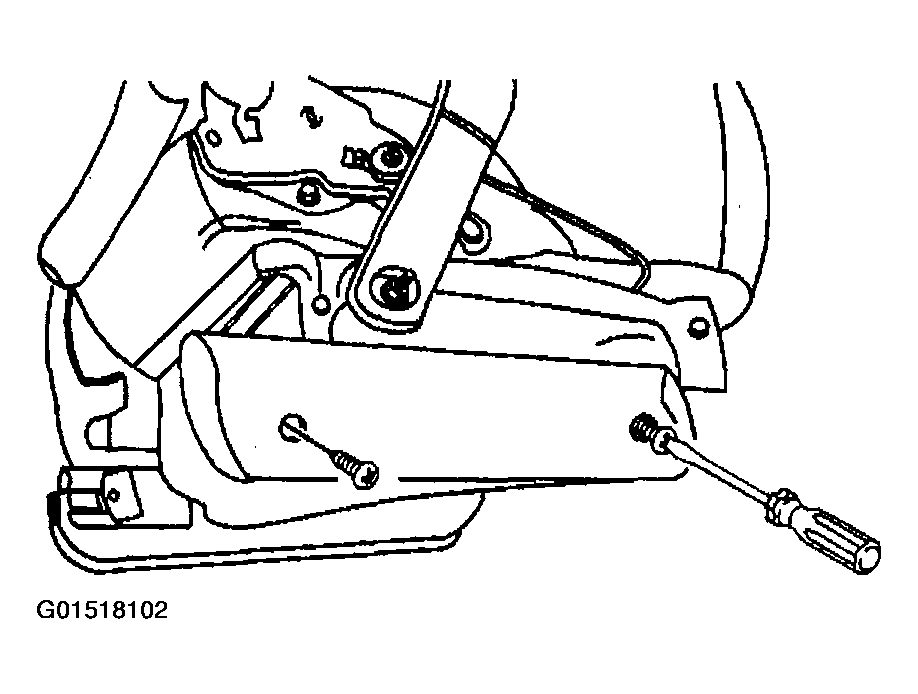

    Fig 1: Removing Screws From Front Seat Track Covers
    G01518102Courtesy of GENERAL MOTORS CORP.
