Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the track covers to the front seat.
  2. Install the screws to the front seat track covers.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the front bucket seat. Refer to SEAT REPLACEMENT - BUCKET  .

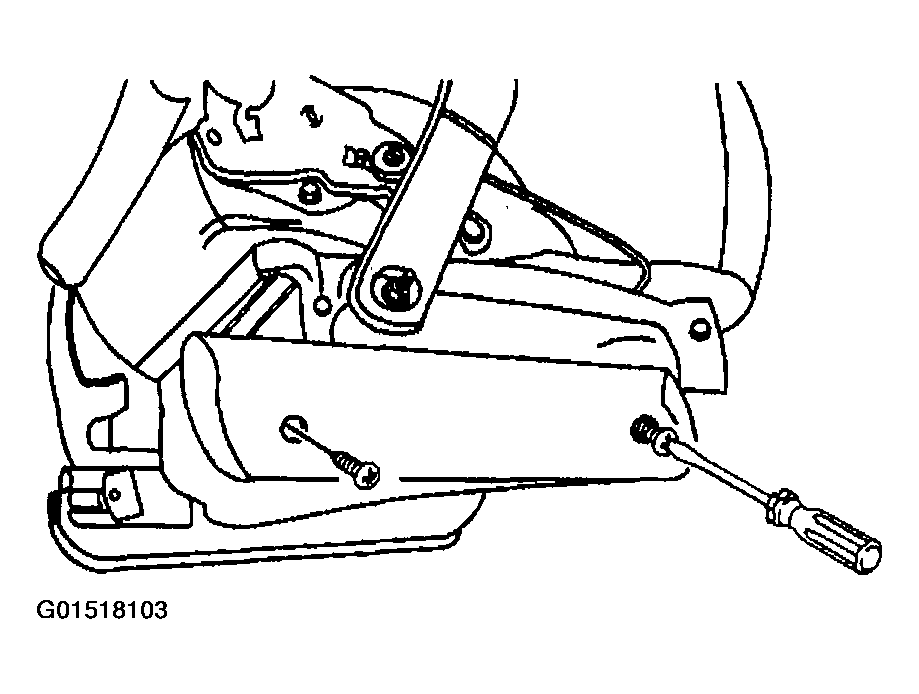

    Fig 1: Installing Screws To Front Seat Track Covers
    G01518103Courtesy of GENERAL MOTORS CORP.
