Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear split bench seat. Refer to SEAT REPLACEMENT - REAR 50-50 SPLIT .
Remove the rear split bench seat release handle and bezel.
Remove the bolts from the rear seat adjuster.

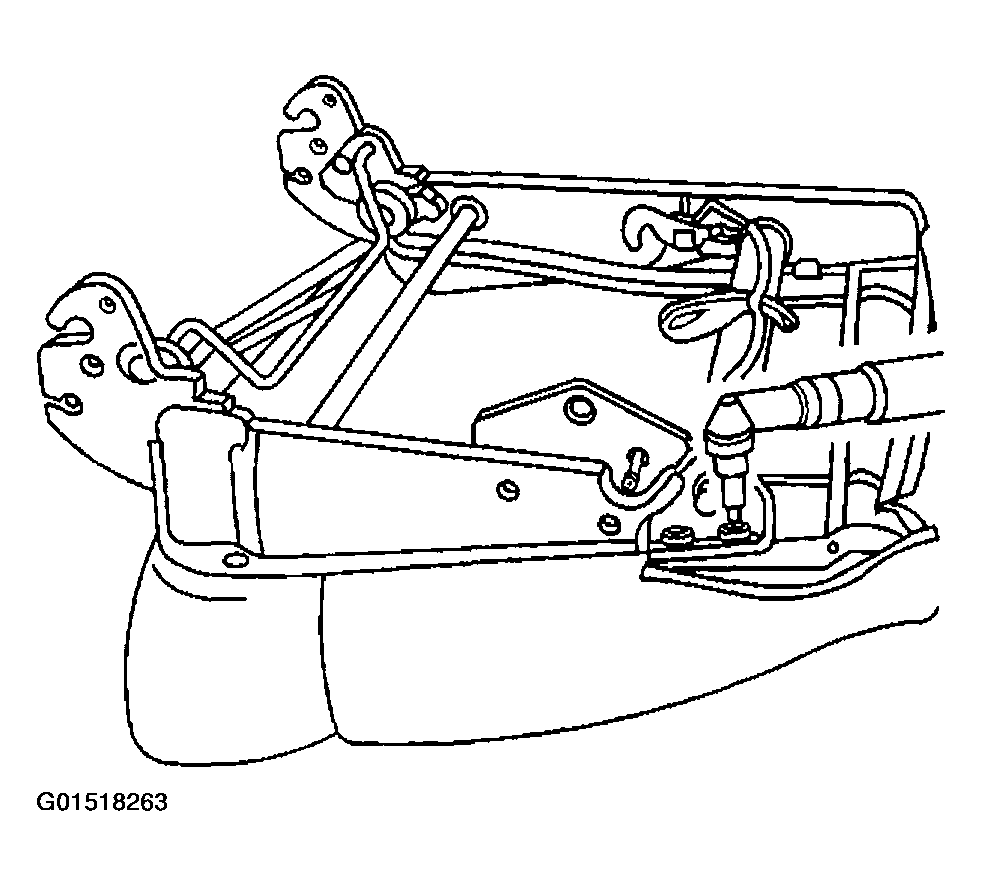

Fig 1: Removing Bolts From Rear Seat Adjuster
Courtesy of GENERAL MOTORS CORP.
Remove the rear seat adjuster from the rear seat cushion frame.

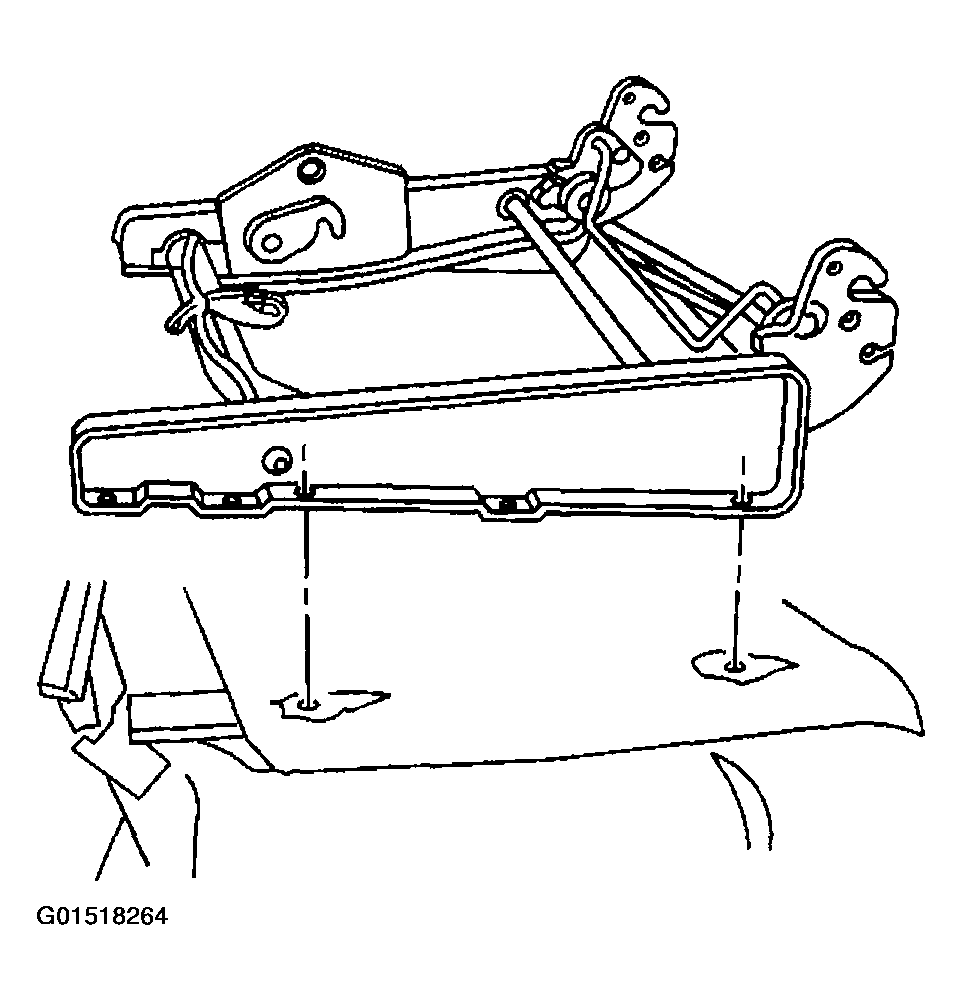

Fig 2: Removing Rear Seat Adjuster From Rear Seat Cushion Frame
Courtesy of GENERAL MOTORS CORP.
