Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat adjuster to the rear seat cushion frame.

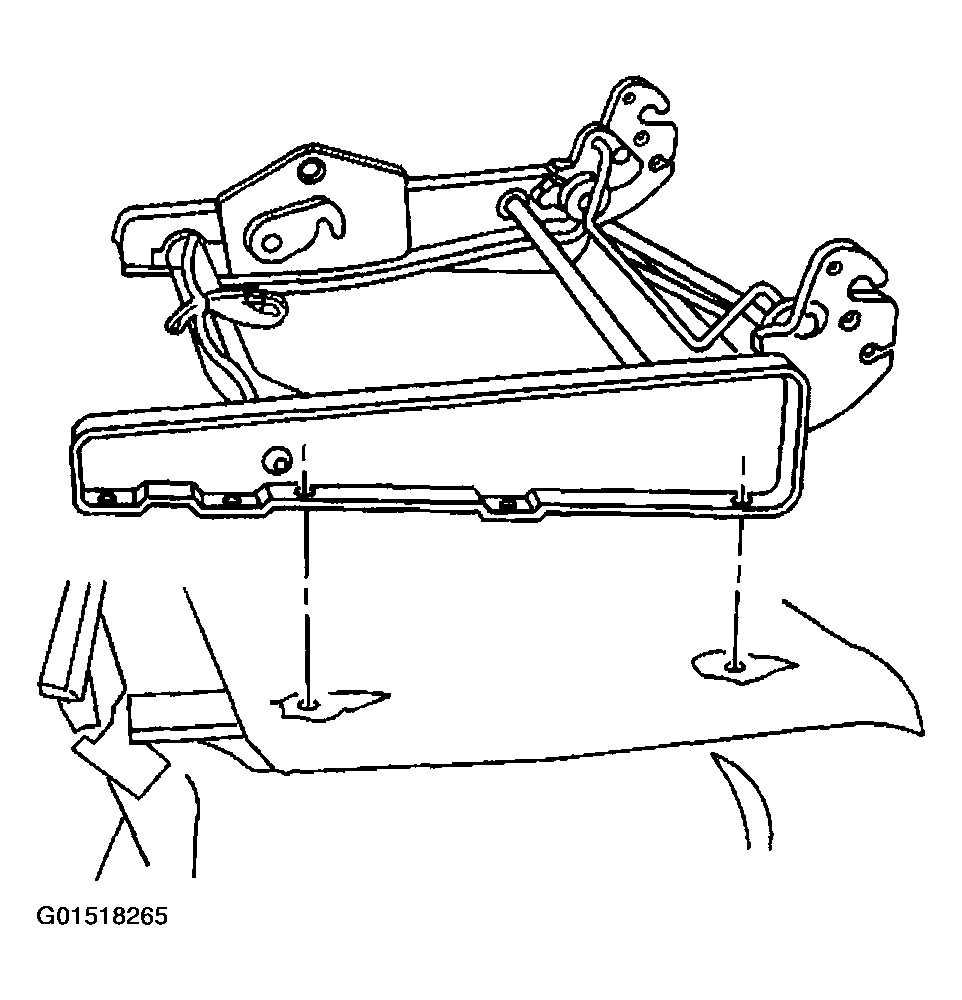

    Fig 1: Installing Rear Seat Adjuster To Rear Seat Cushion Frame
    G01518265Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts to the rear seat adjuster.

    Tighten

    Tighten the rear adjuster bolts to 10 N.m (89 lb in).

  3. Install the rear split bench seat release handle and bezel.
  4. Install the rear split bench seat. Refer to SEAT REPLACEMENT - REAR 50-50 SPLIT  .

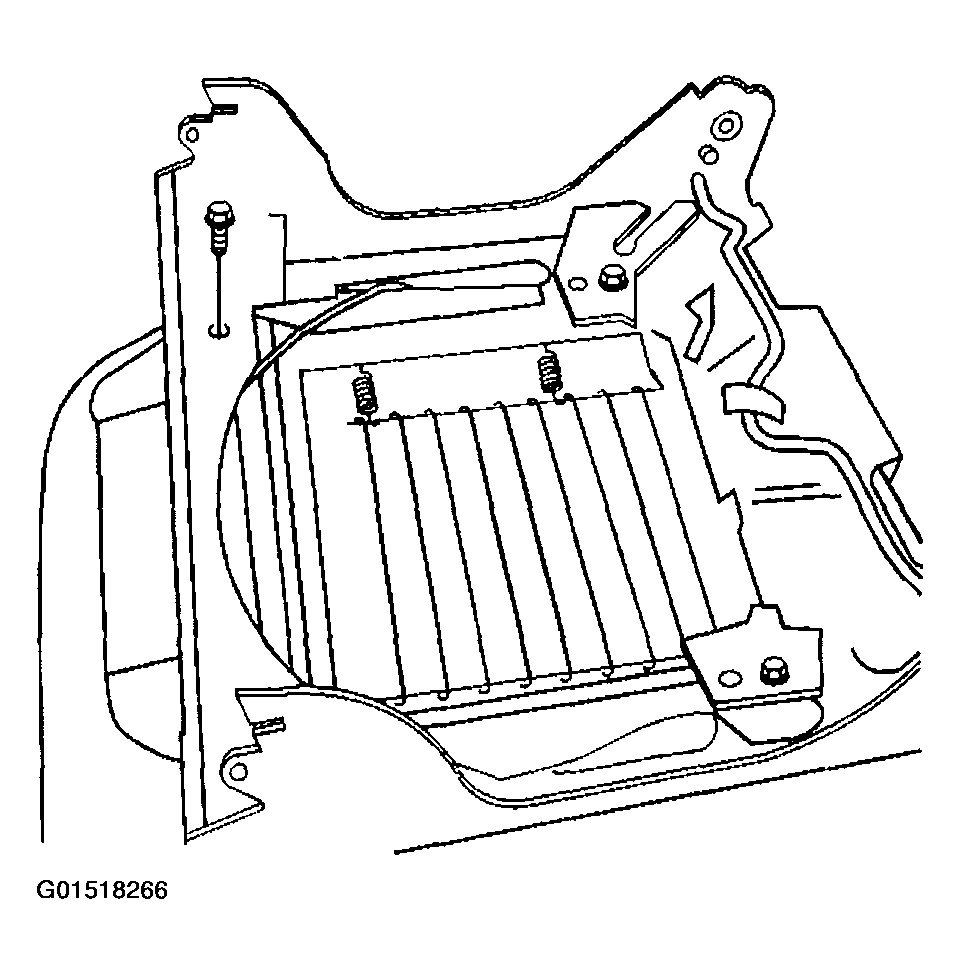

    Fig 2: Installing Bolts To Rear Seat Adjuster
    G01518266Courtesy of GENERAL MOTORS CORP.
