Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the inner cushion trim cover. Refer to SEAT CUSHION INNER TRIM PANEL REPLACEMENT - FRONT  .
  3. Remove the outer cushion trim cover. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT - FRONT SEAT  .
  4. Remove the front seat belt buckle.

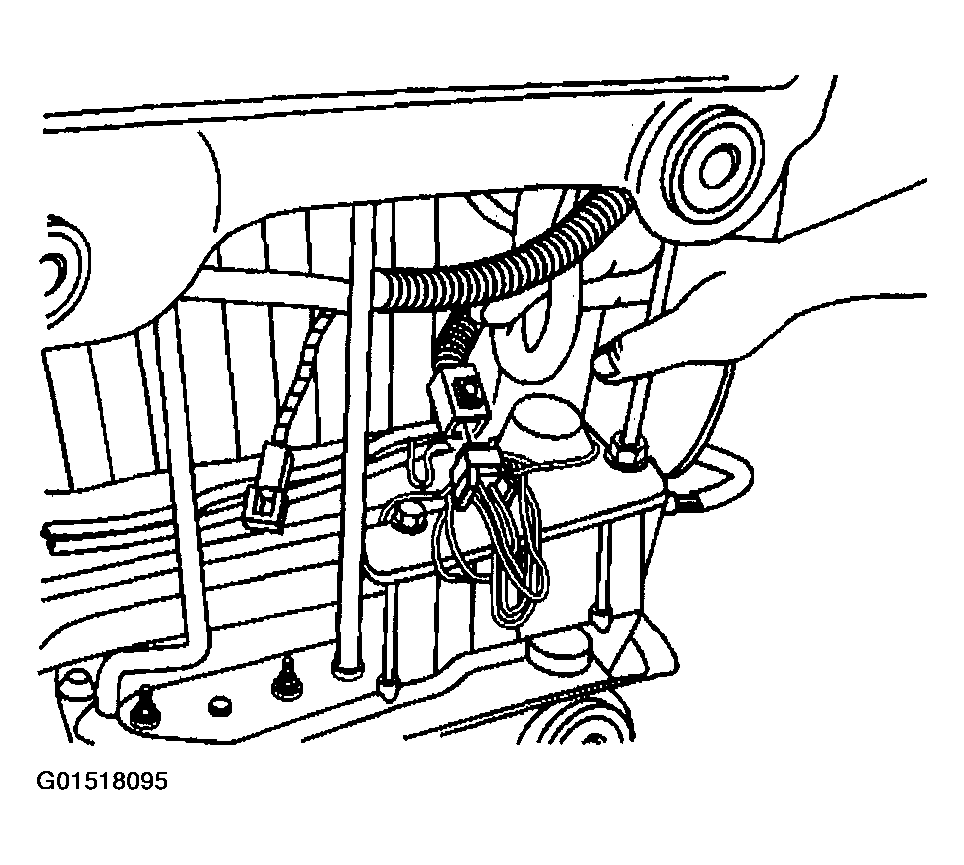

    Fig 1: Disconnecting Electrical Connectors From Front Seat Adjuster Motors
    G01518095Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connectors from the front seat adjuster motors.
  6. Remove the bolts from the seat adjuster.

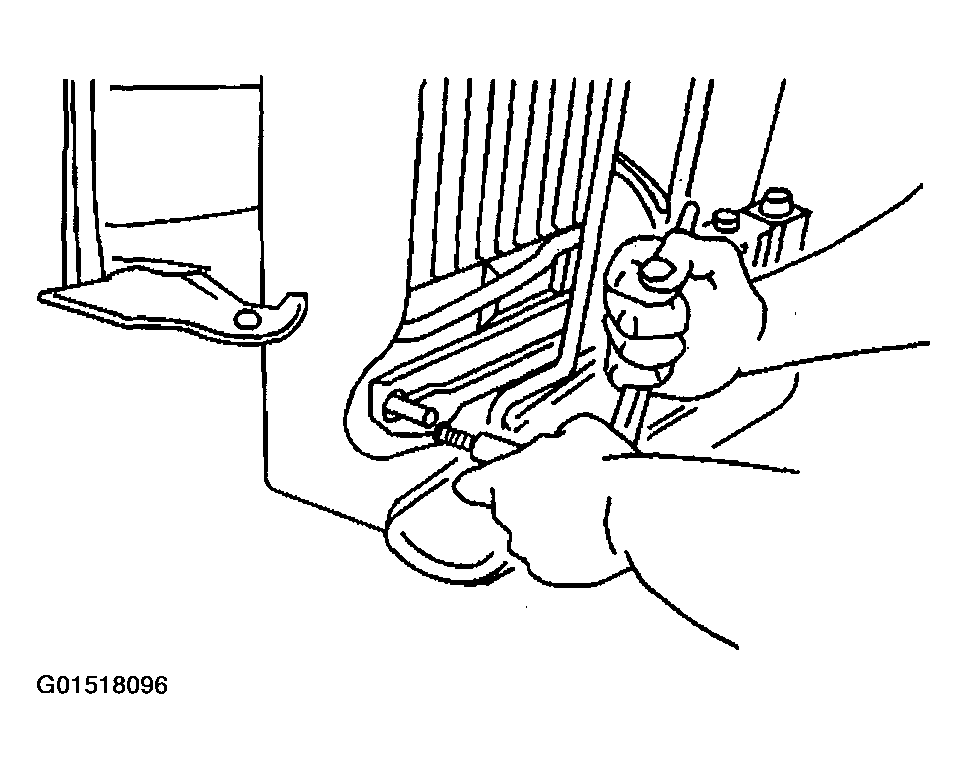

    Fig 2: Removing Bolts From Seat Adjuster
    G01518096Courtesy of GENERAL MOTORS CORP.
  7. Remove the adjuster from the seat cushion frame.
  8. Remove the handle from the seat adjuster.

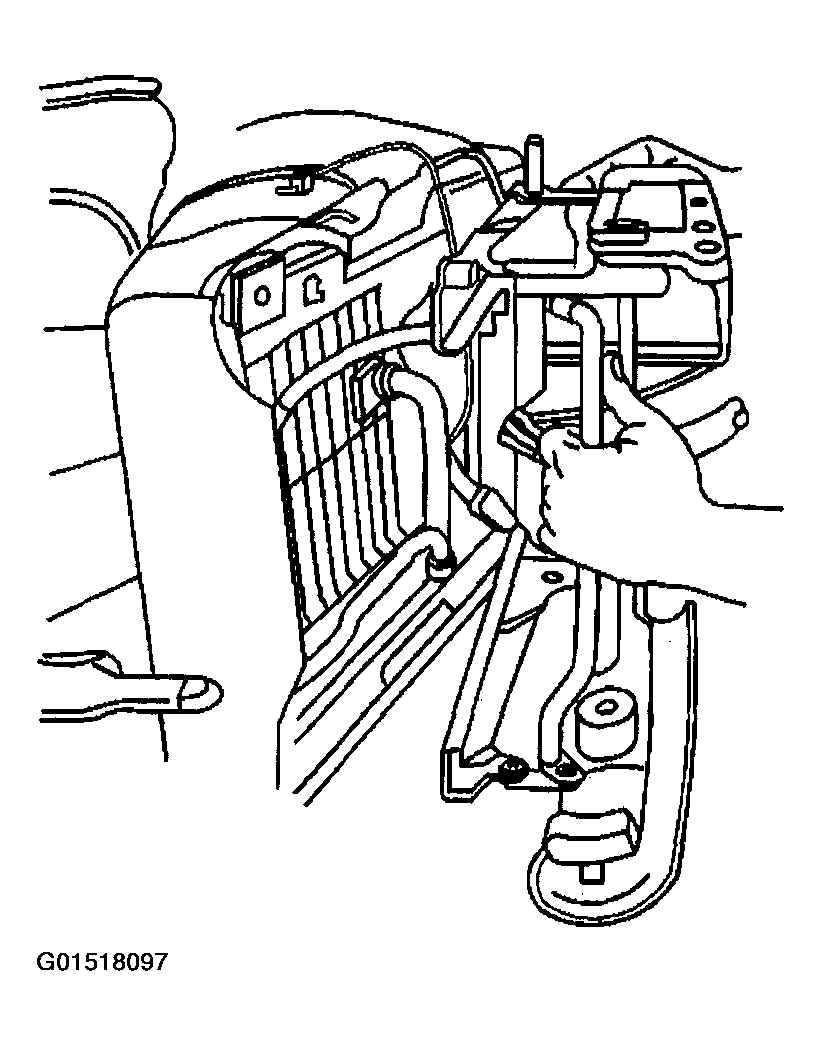

    Fig 3: Removing Adjuster From Seat Cushion Frame
    G01518097Courtesy of GENERAL MOTORS CORP.
