Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Use a flat-bladed tool to pry the memory seat switch panel from the door trim panel.

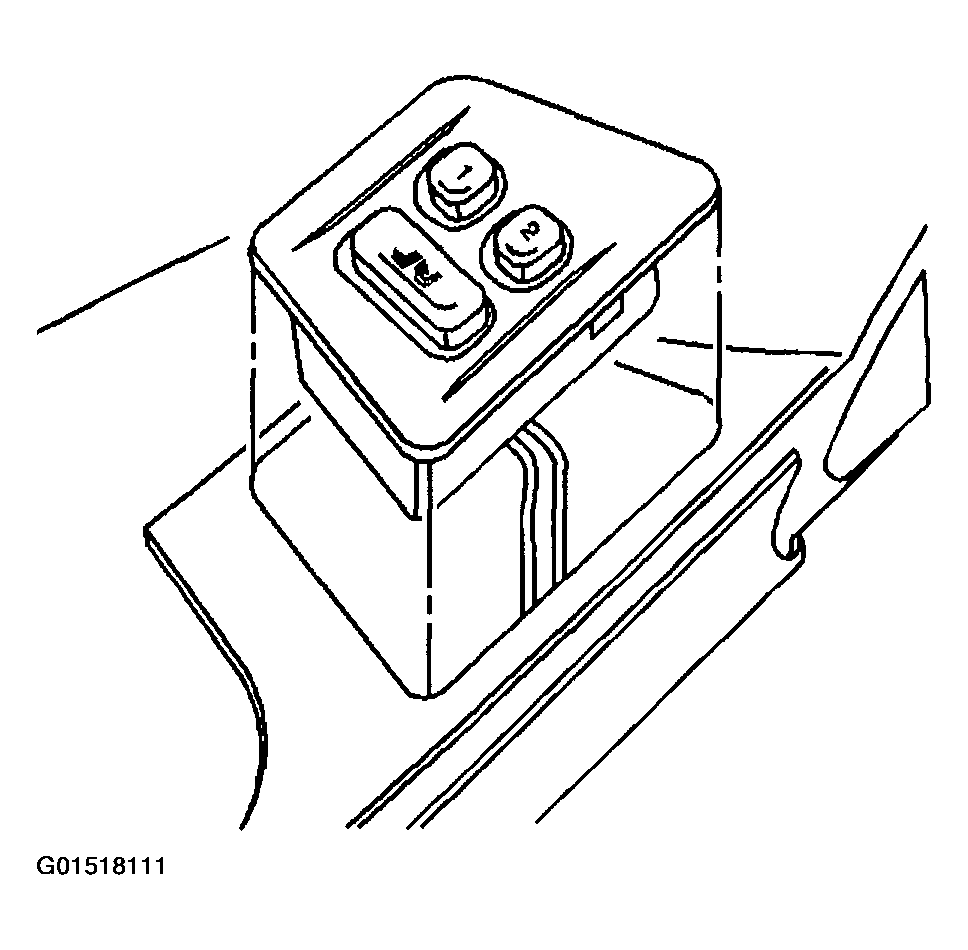

Fig 1: Identifying Memory Seat Switch
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors from the memory seat switch panel.

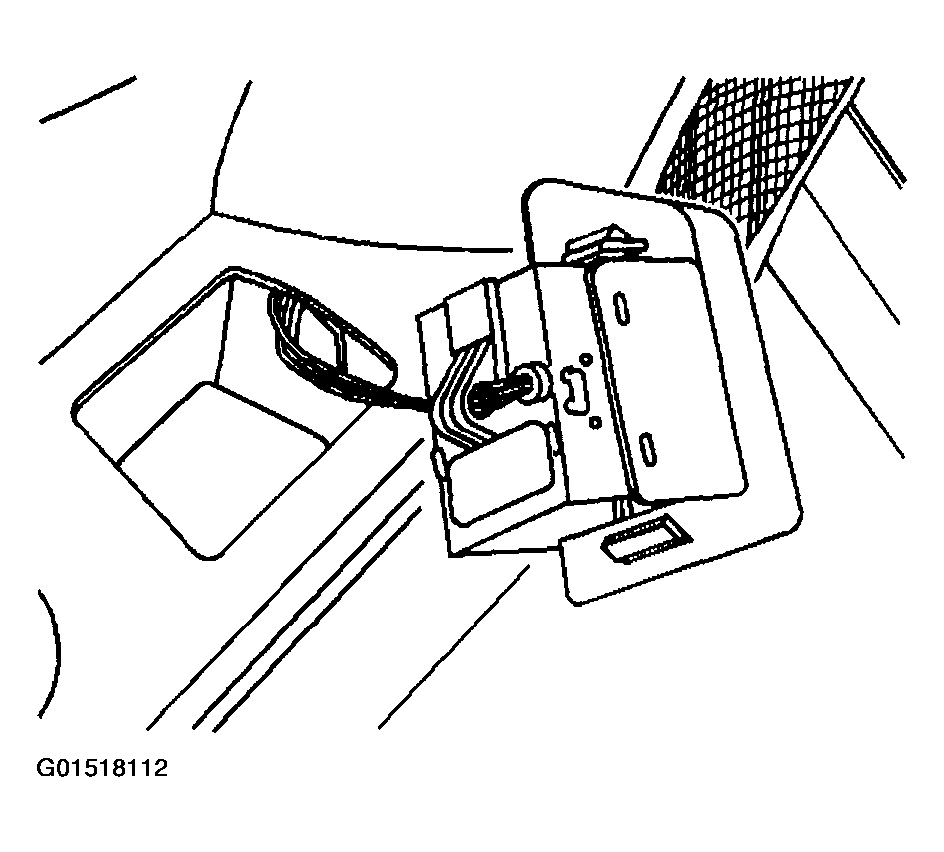

Fig 2: Disconnecting Electrical Connectors From Memory Seat Switch Panel
Courtesy of GENERAL MOTORS CORP.
