Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lumbar support knob by pulling off the lumbar control shaft.
  2. Remove the lumbar support knob from the vehicle.

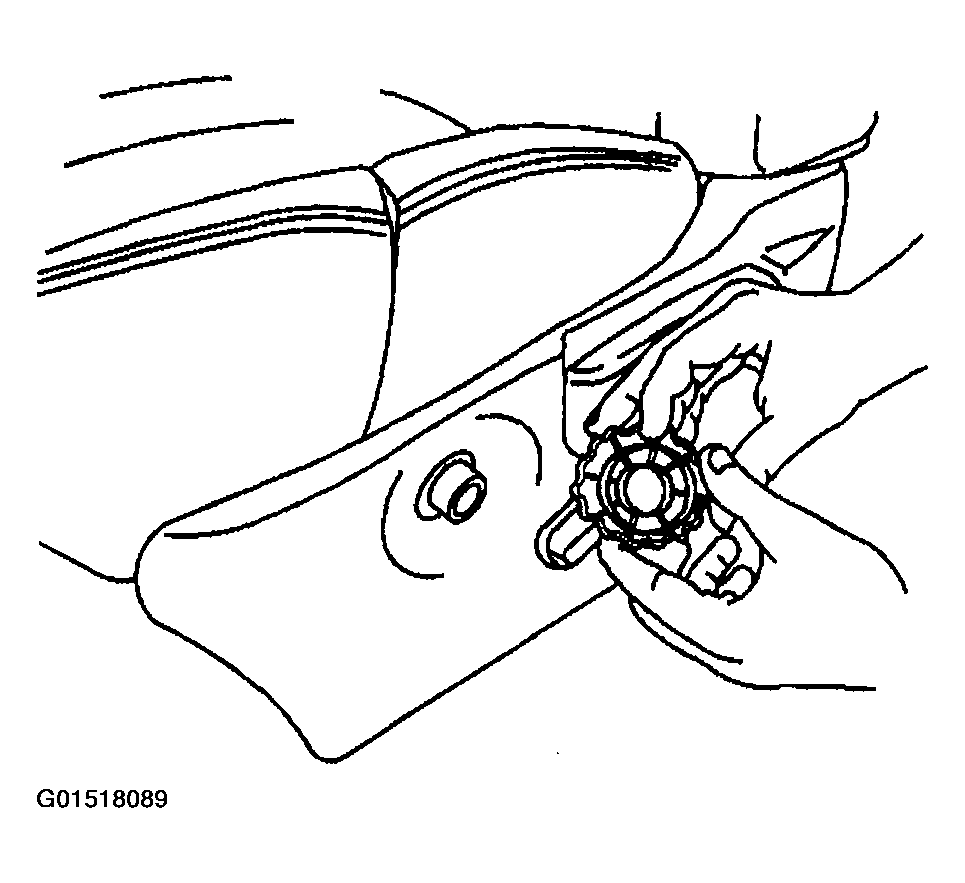

    Fig 1: Removing Lumbar Support Knob
    G01518089Courtesy of GENERAL MOTORS CORP.
