Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the front seat back cover. Refer to SEAT BACK COVER REPLACEMENT - FRONT  .
  3. Remove the front seat back pad. Refer to SEAT BACK PAD REPLACEMENT - FRONT  .

    Important:  The lumber support must be in the relaxed position to remove the control cable.

  4. Remove the lumber control cable from the lumbar control.

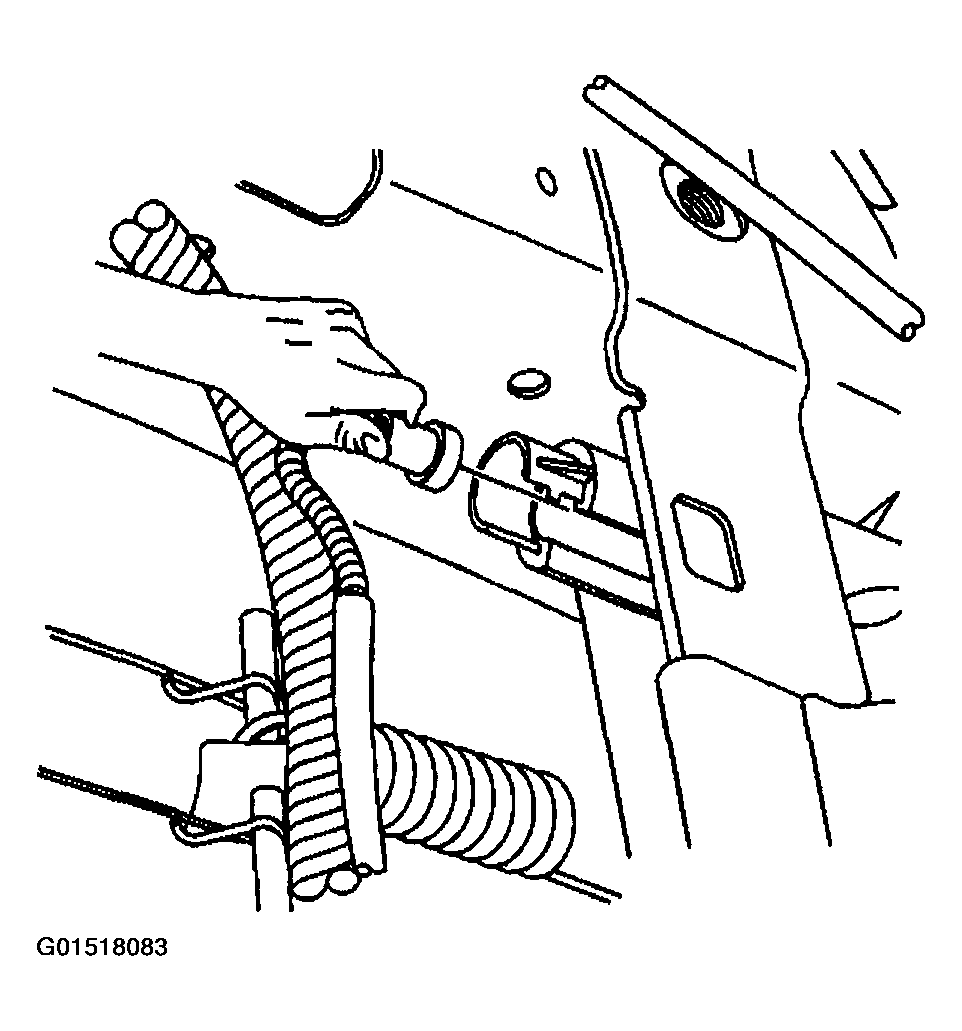

    Fig 1: Removing Lumber Control Cable From Lumbar Control
    G01518083Courtesy of GENERAL MOTORS CORP.
  5. Remove the lumbar support from the front seat back by compressing the lumbar support push-in retainers.
    Fig 2: Compressing Lumbar Support Push-In Retainers
    G01518084Courtesy of GENERAL MOTORS CORP.
  6. Remove the lumbar support from the front seat back.

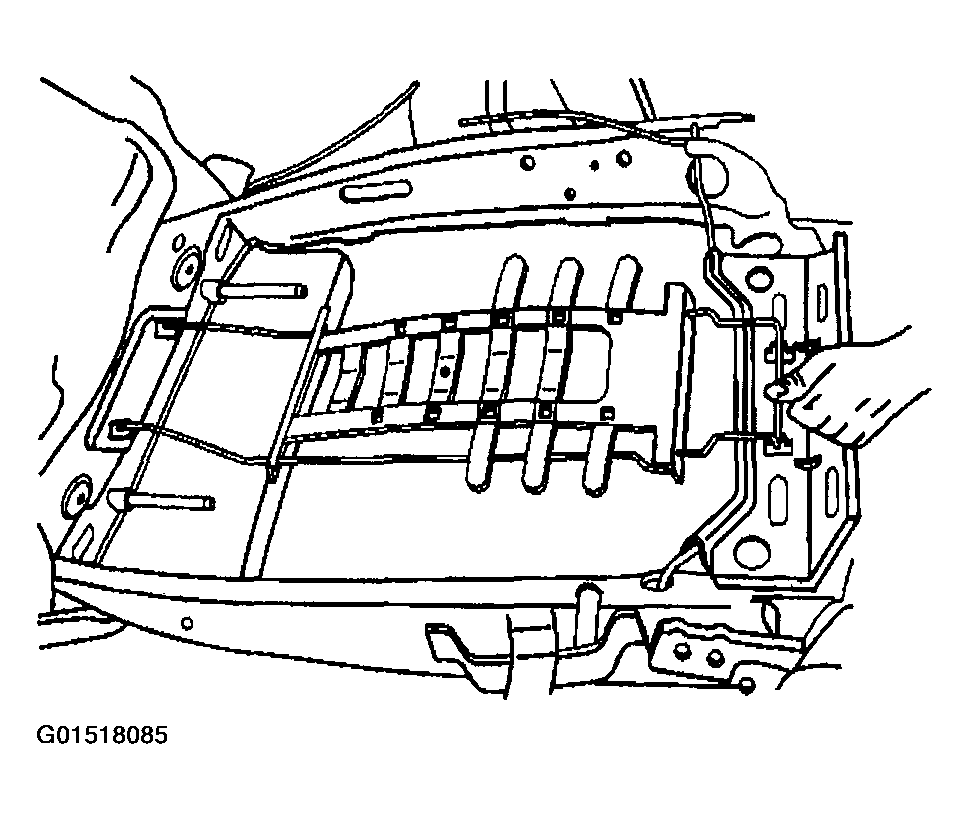

    Fig 3: Removing Lumbar Support From Front Seat Back
    G01518085Courtesy of GENERAL MOTORS CORP.
