Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lumbar support to the mounting holes in the front seat back.
  2. Install the lumbar support to the front seat back, pressing into place until fully seated.

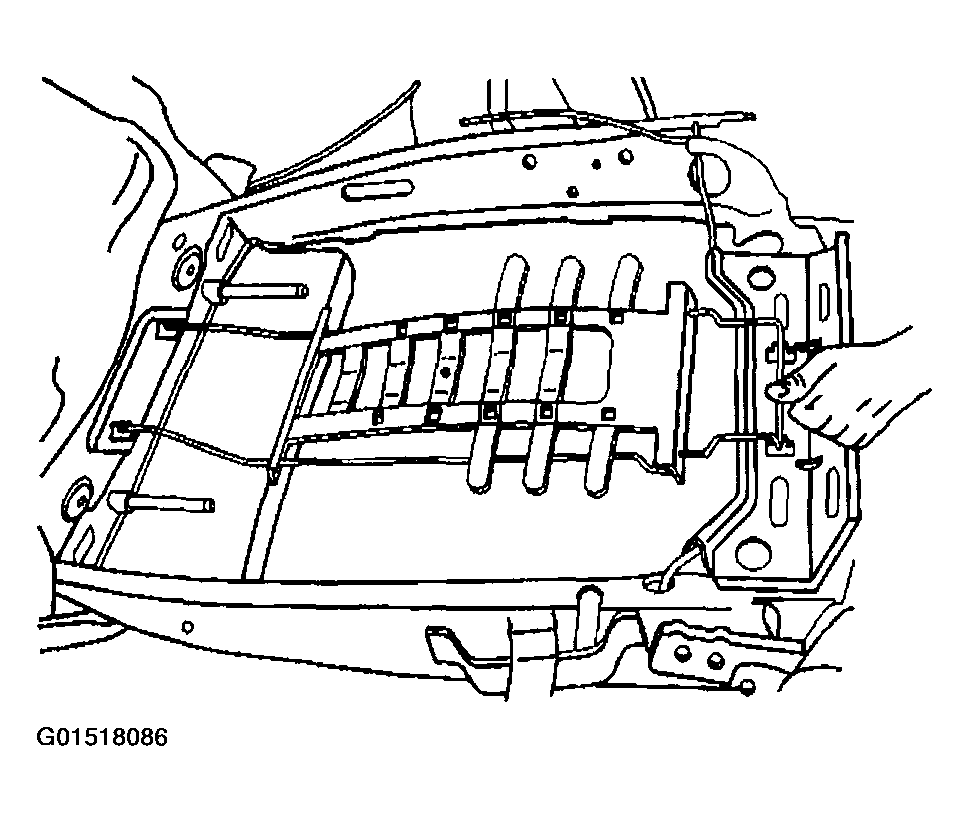

    Fig 1: Installing Lumbar Support To Front Seat Back
    G01518086Courtesy of GENERAL MOTORS CORP.
  3. Install the lumbar support cable to the lumbar support control.

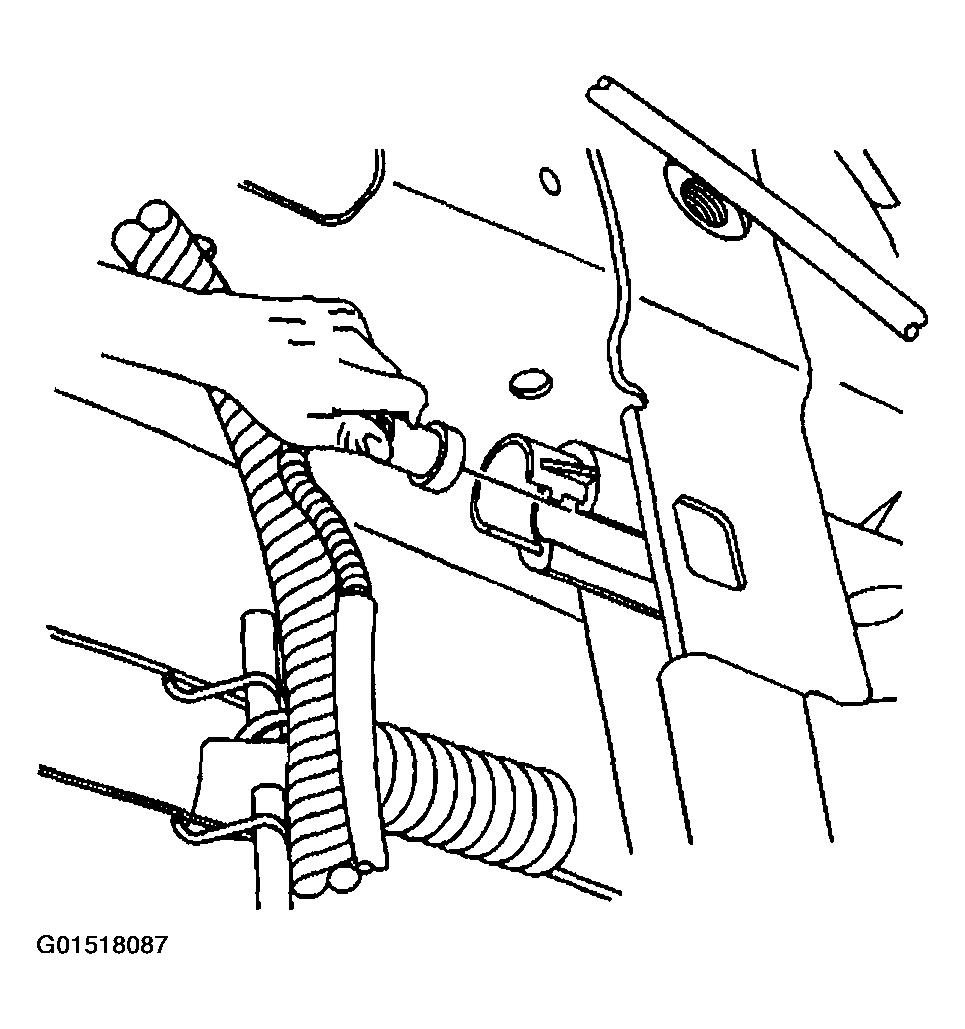

    Fig 2: Installing Lumbar Support Cable To Lumbar Support Control (1 Of 2)
    G01518087Courtesy of GENERAL MOTORS CORP.
  4. Install the lumbar support cable to the lumbar support control.
  5. Install the front seat back pad. Refer to SEAT BACK PAD REPLACEMENT - FRONT  .
  6. Install the front seat back cover. Refer to SEAT BACK COVER REPLACEMENT - FRONT  .
  7. Install the front seat. Refer to SEAT REPLACEMENT - BUCKET  .

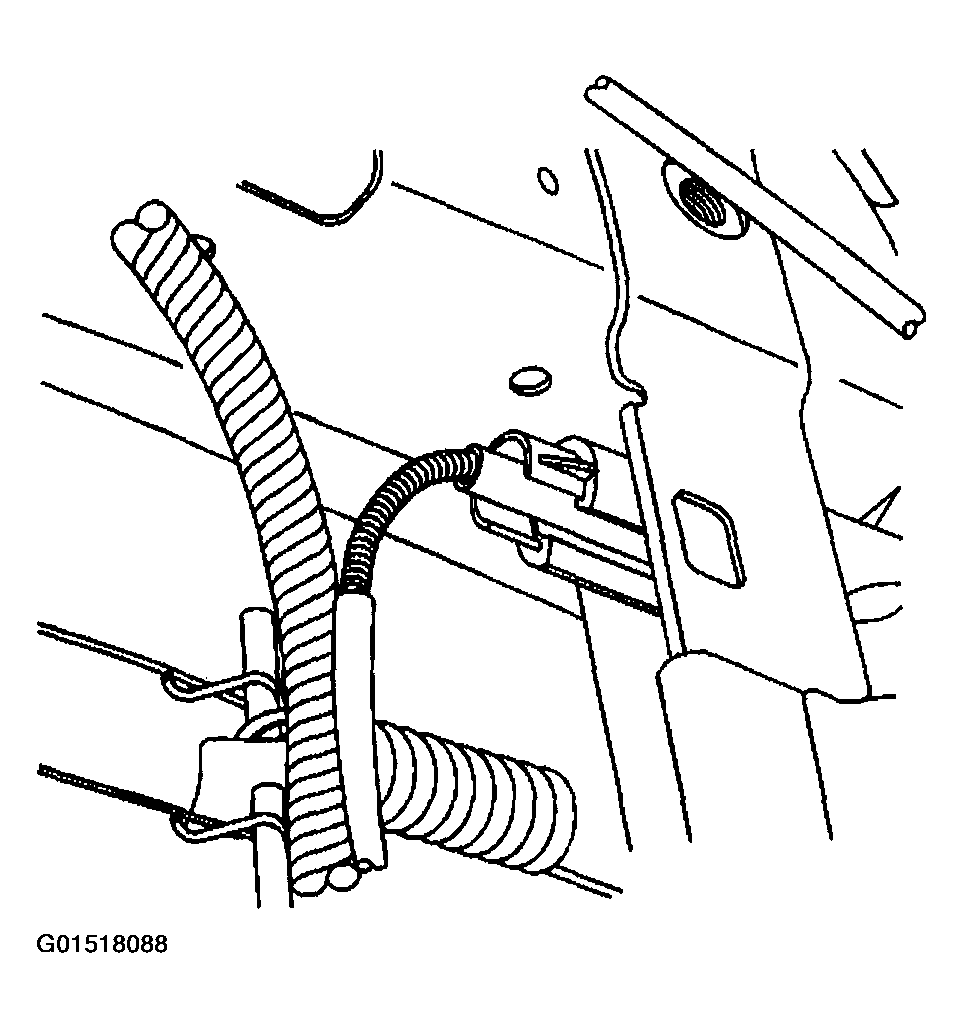

    Fig 3: Installing Lumbar Support Cable To Lumbar Support Control (2 Of 2)
    G01518088Courtesy of GENERAL MOTORS CORP.
