Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the outer trim panel. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT - FRONT SEAT  .

    Important:  The lumbar support must be in the relaxed position to disconnect the lumbar support cable.

  3. Remove the lumbar control cable from the lumbar control.

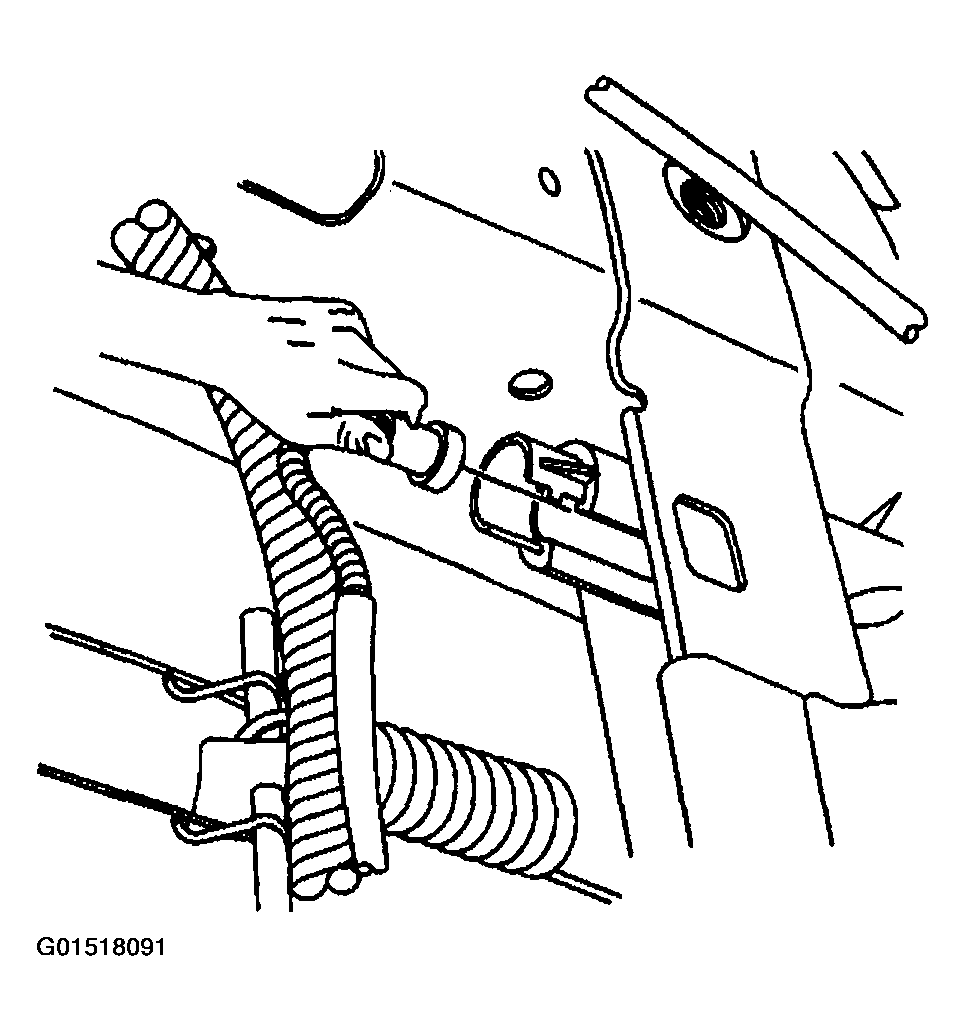

    Fig 1: Removing Lumbar Control Cable From Lumbar Control
    G01518091Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws from the lumbar control.
  5. Remove the lumbar control from the seat cushion frame.
    Fig 2: Removing Screws From Lumbar Control
    G01518092Courtesy of GENERAL MOTORS CORP.
