Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the guide to the seat back frame, pressing in until fully seated into the rear seat frame.
  2. Install the rear seat cover to the rear seat back.
  3. install the J-hook retainer at the bottom edge of the rear seat back cover.
  4. Install the headrest to the rear seat. Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT  .
  5. Place the rear seat back to the original position.

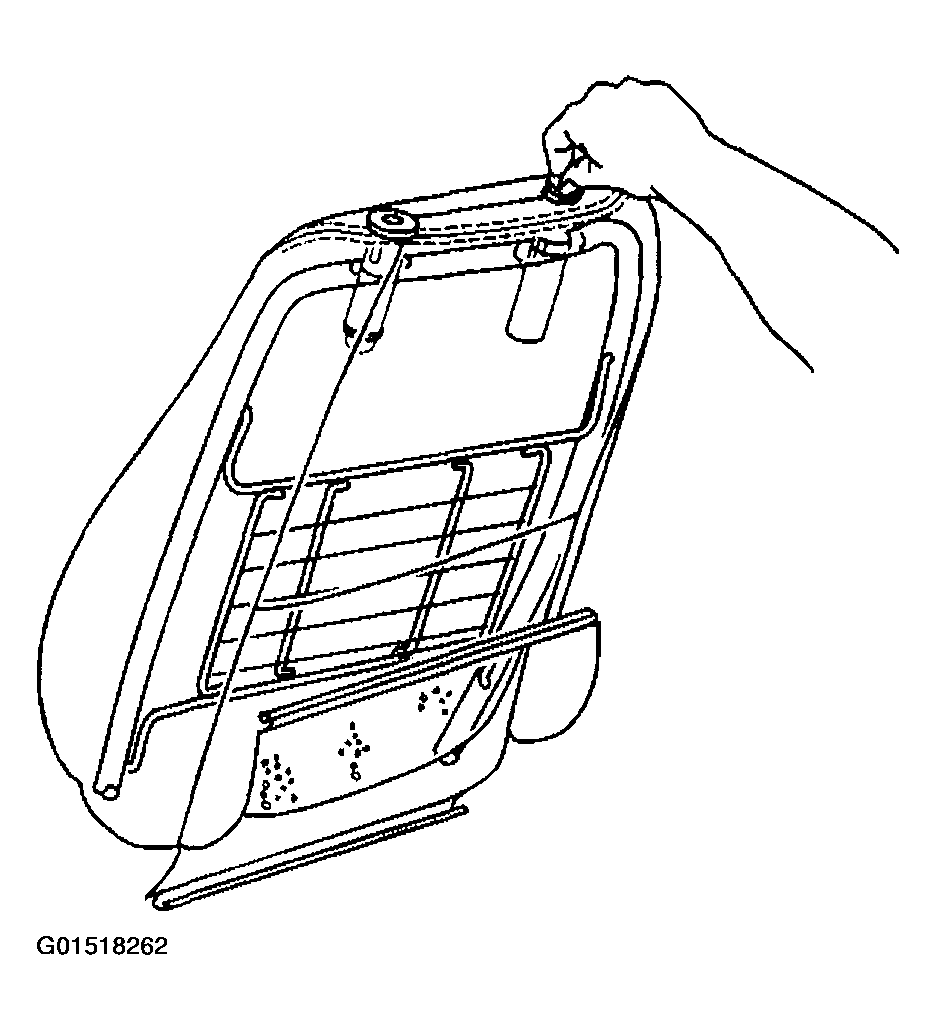

    Fig 1: Installing Guide To Seat Back Frame
    G01518262Courtesy of GENERAL MOTORS CORP.
