Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the guide to the seat back frame, pressing in until fully seated into the front seat frame.
  2. Install the front seat cover to the front seat back.
  3. Install the J-hook retainer at the bottom edge of the front seat back cover.
  4. Install the headrest to the front seat. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT  .
  5. Place the front seat back to the original position.

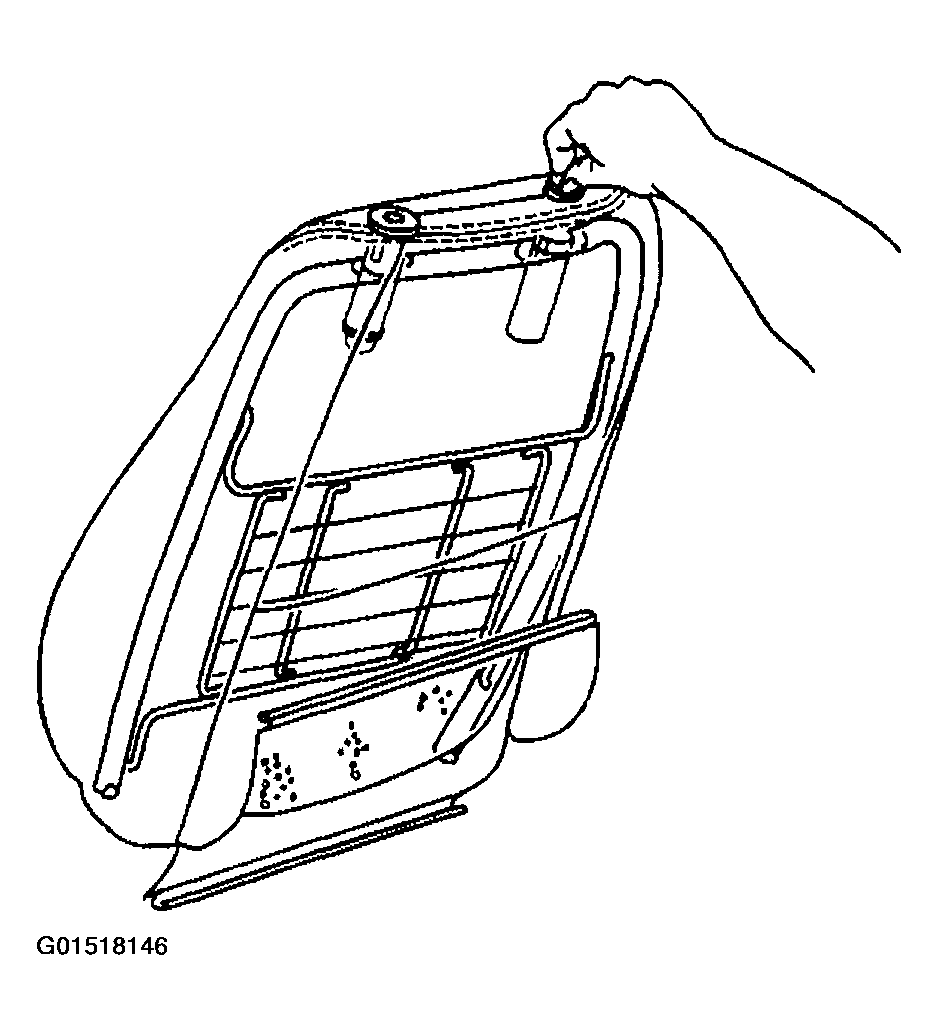

    Fig 1: Installing Guide To Seat Back Frame
    G01518146Courtesy of GENERAL MOTORS CORP.
