Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the head restraint posts (1) into the guides.
  2. Push the head restraint to a full down position.
  3. Raise the head restraint in order to ensure that the restraint stops at the detent (3).
  4. Return the head restraint to its original position.

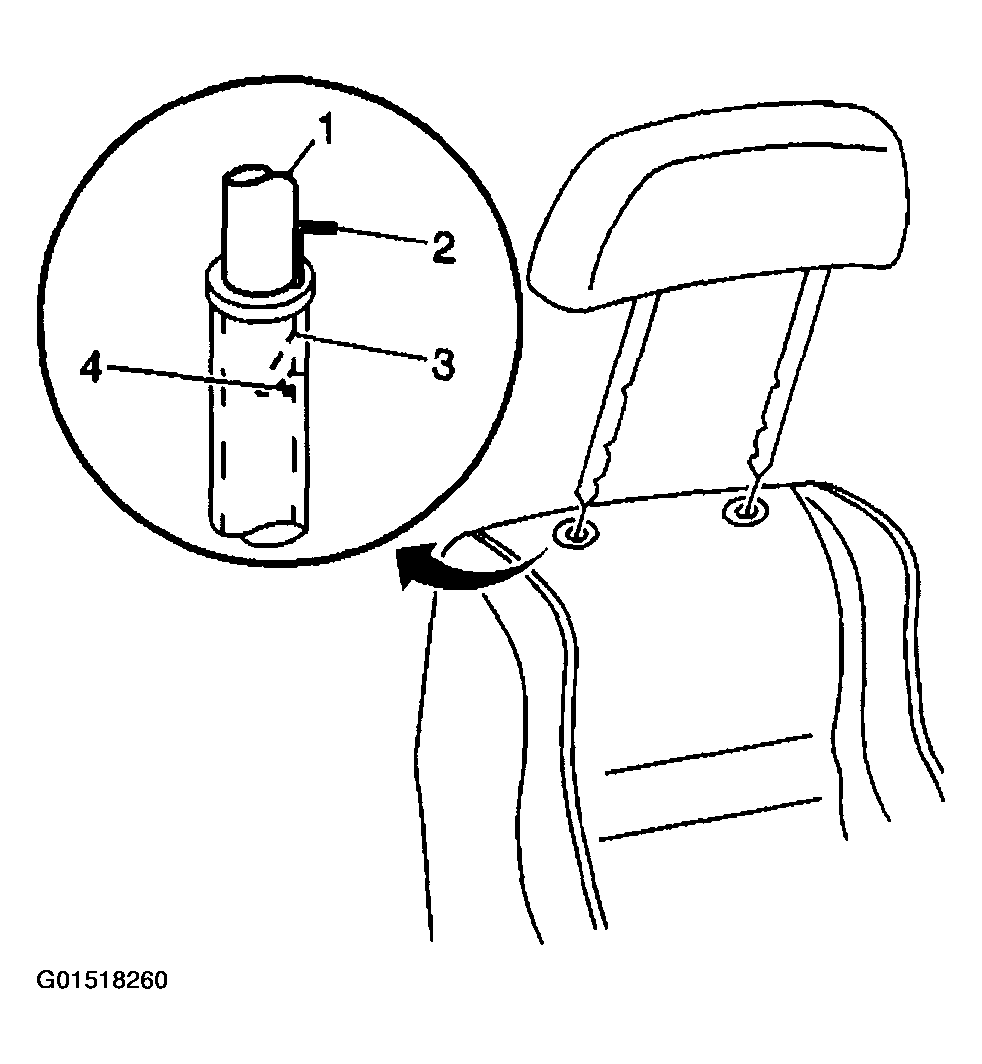

    Fig 1: Installing Head Restraint - Rear Seat
    G01518260Courtesy of GENERAL MOTORS CORP.
