Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove the armrest bolt trim cap using a small flat-bladed tool.

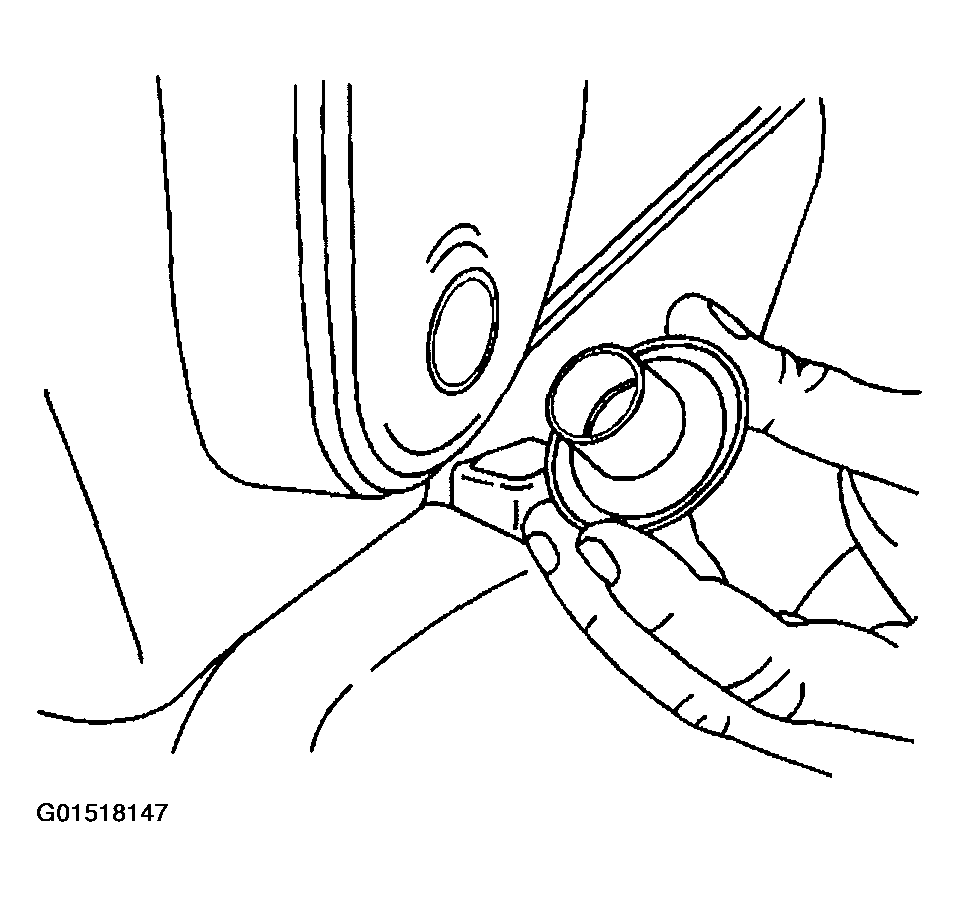

Fig 1: Removing Armrest Bolt Trim Cap
Courtesy of GENERAL MOTORS CORP.
Remove the bolt from the armrest.
Remove the armrest from the front bucket seat.

Fig 2: Removing Bolt From Armrest
Courtesy of GENERAL MOTORS CORP.
