Test Description

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Verify that the DTC is current or history by monitoring the switch status for which the code is set.
  2. 3. Tests the memory select switch for an internal fault.

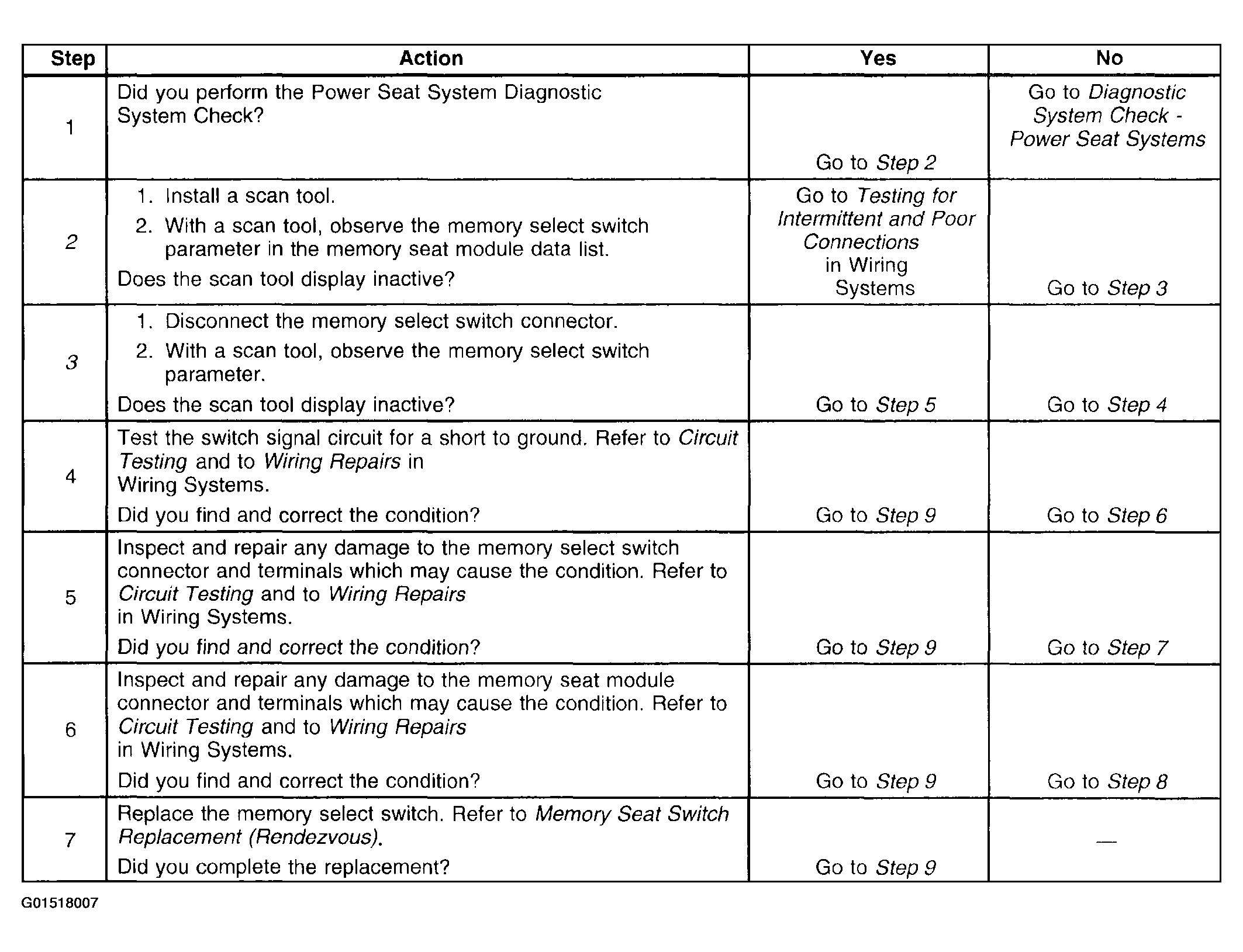

    Fig 1: DTC B2755 Or B2760 Diagnosis (Steps 1-7)
    G01518007Courtesy of GENERAL MOTORS CORP.

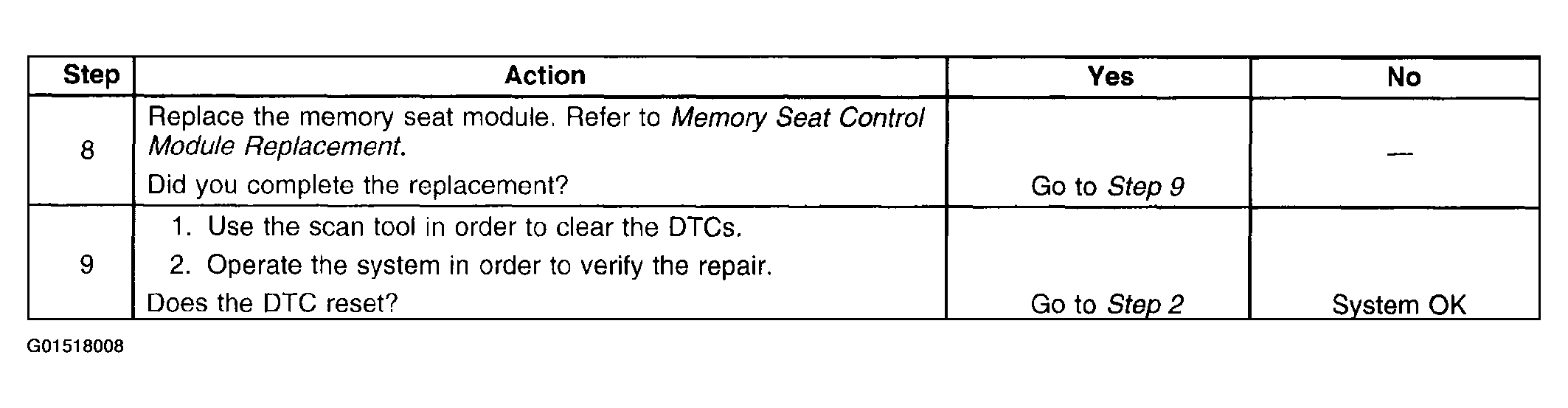

    Fig 2: DTC B2755 Or B2760 Diagnosis (Steps 8-9)
    G01518008Courtesy of GENERAL MOTORS CORP.
