Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift the armrest cover and place the cover in the locked position.
  2. Remove the armrest cover screws
  3. Remove the cup holder liners.
  4. Remove the cup holder screws.
  5. Remove the power accessory liner.
  6. Remove the liner screws.
  7. Disconnect the electrical connectors from the trim plate.
  8. Remove the trim plate assembly.

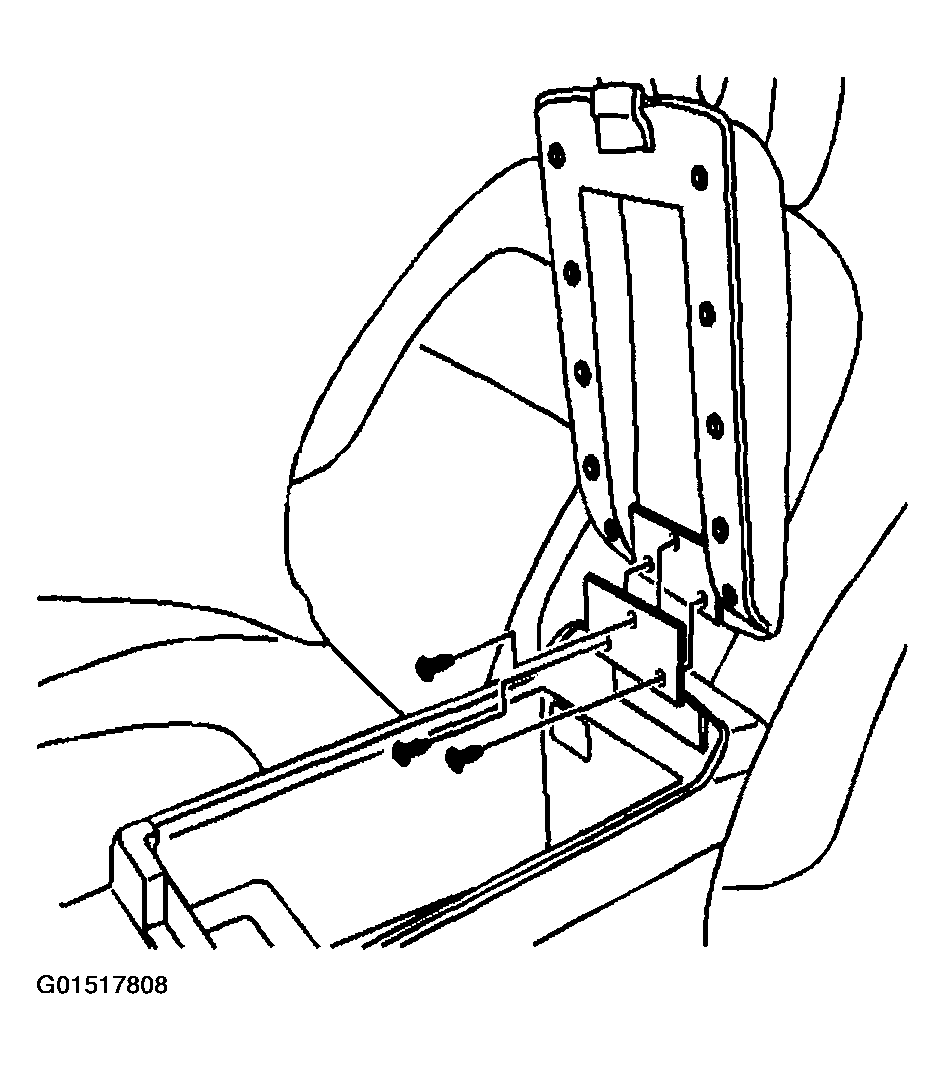

    Fig 1: Removing Armrest Cover Screws
    G01517808Courtesy of GENERAL MOTORS CORP.
