Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connections.
  2. Press the trim plate to the console until the plate is fully seated.

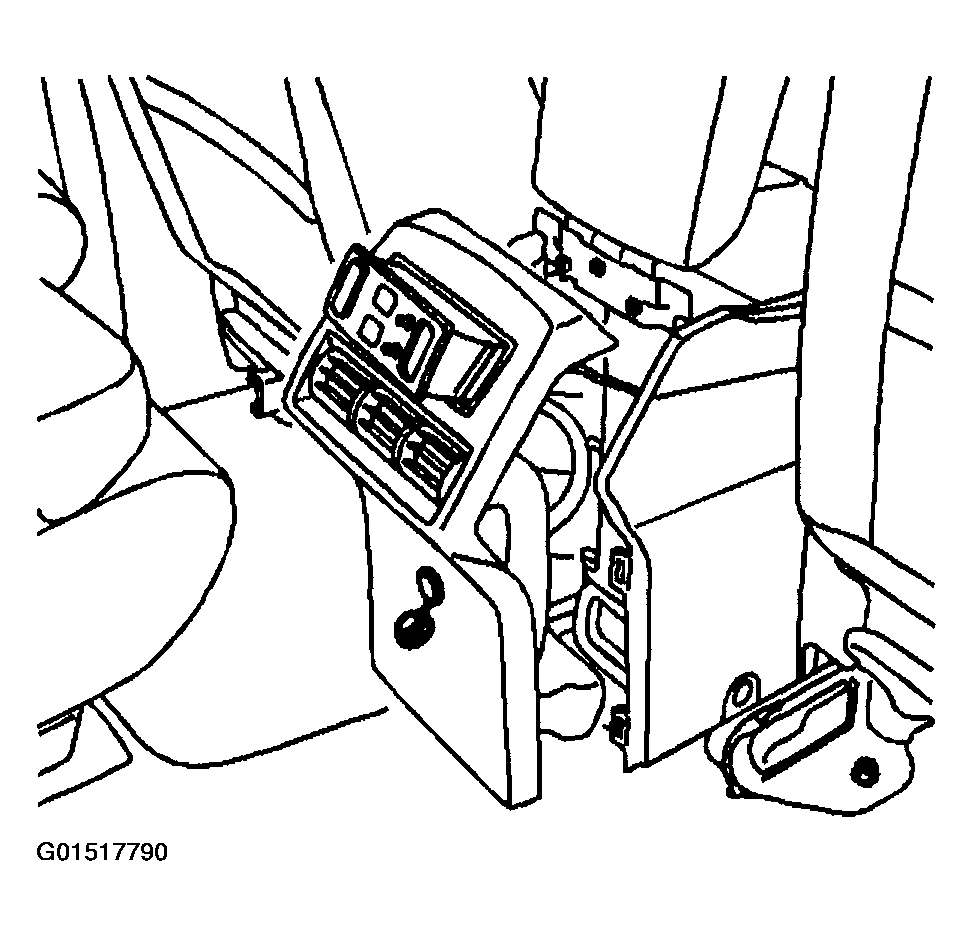

    Fig 1: Installing Trim Plate
    G01517790Courtesy of GENERAL MOTORS CORP.
  3. Install the trim plate screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Close the armrest.

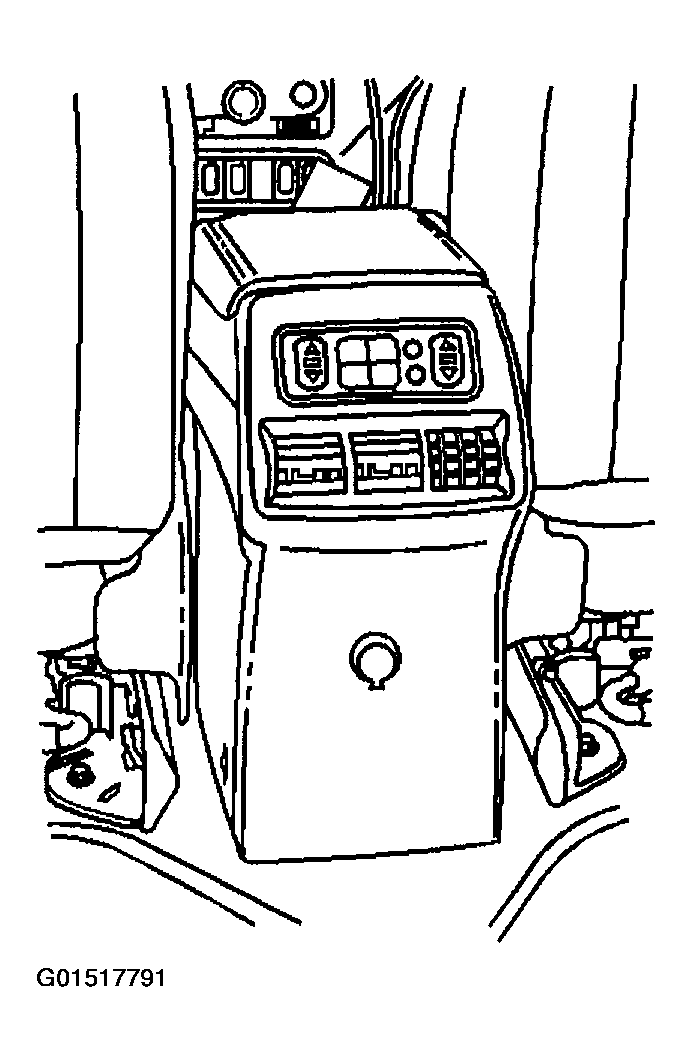

    Fig 2: Installing Trim Plate Screws
    G01517791Courtesy of GENERAL MOTORS CORP.
