Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the electrical connections to the switch assembly.

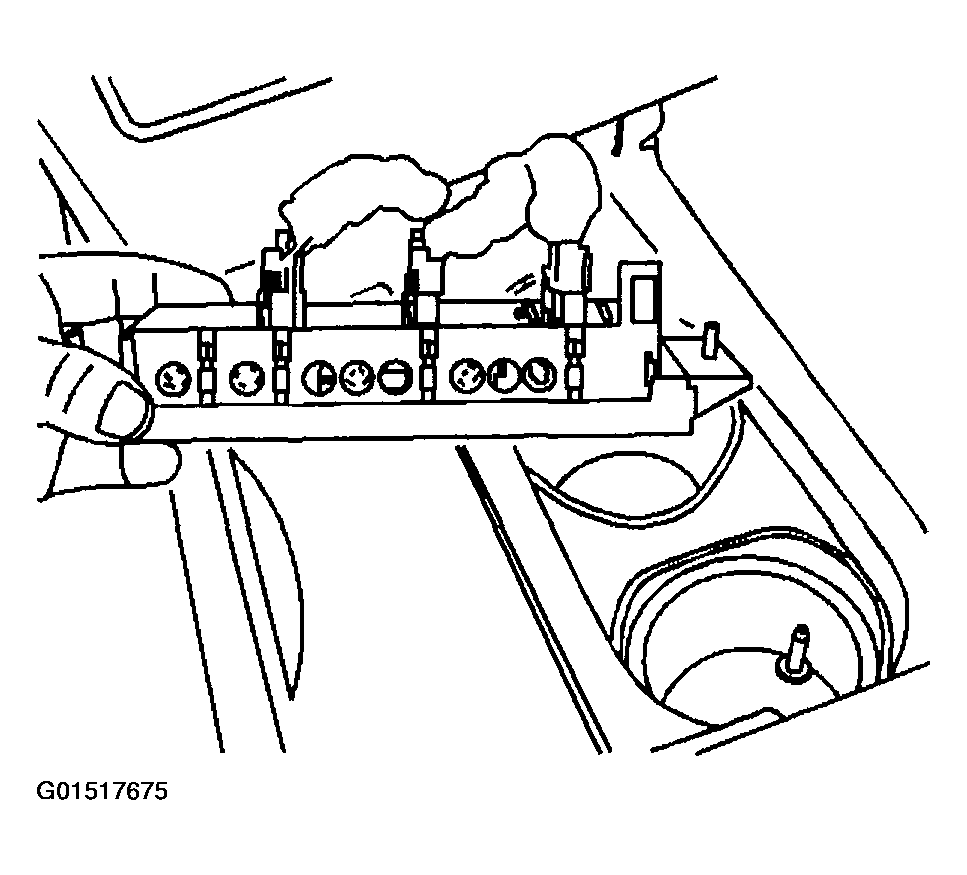

    Fig 1: Installing Electrical Connections To Switch Assembly
    G01517675Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts to the switch assembly of the rear object alarm module.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in)

    Fig 2: Installing Bolts To Switch Assembly
    G01517676Courtesy of GENERAL MOTORS CORP.
  3. Install the I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (AZTEK)  .
  4. Install the front floor console. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (AZTEK)  or TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (RENDEZVOUS)  .

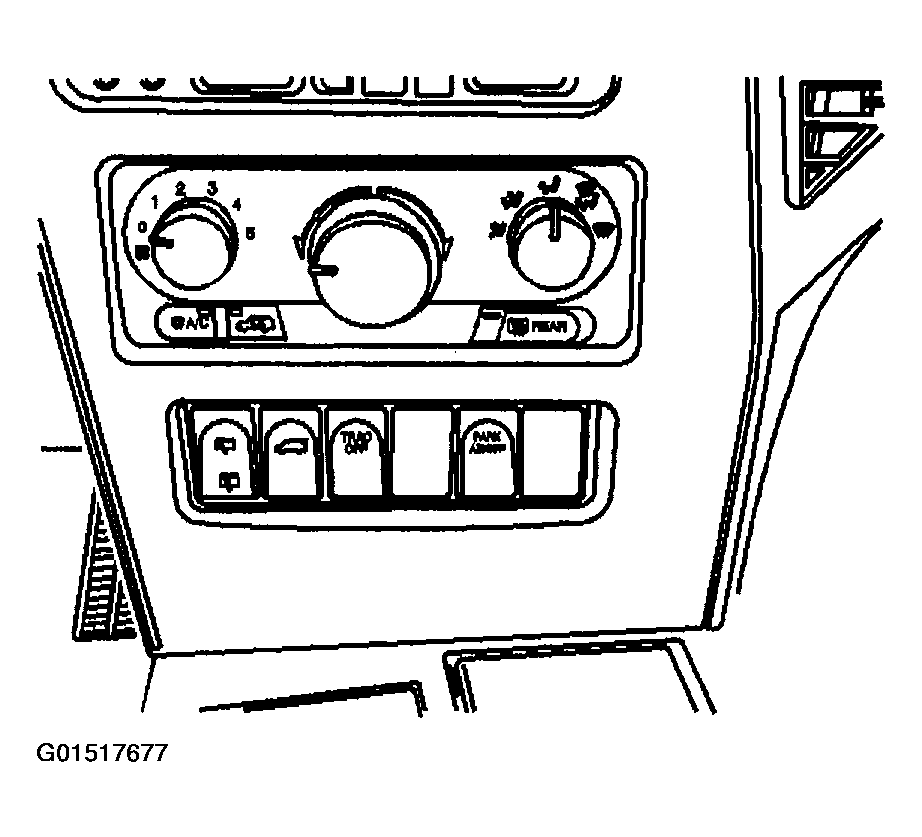

    Fig 3: Locating Instrument Panel Multifunction Switch Assembly
    G01517677Courtesy of GENERAL MOTORS CORP.
