Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (AZTEK)  or TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS)  .
  2. Disconnect the electrical connectors.
  3. Remove the bolts that secure the heads up display module to the IP.
  4. Remove the heads up display module.

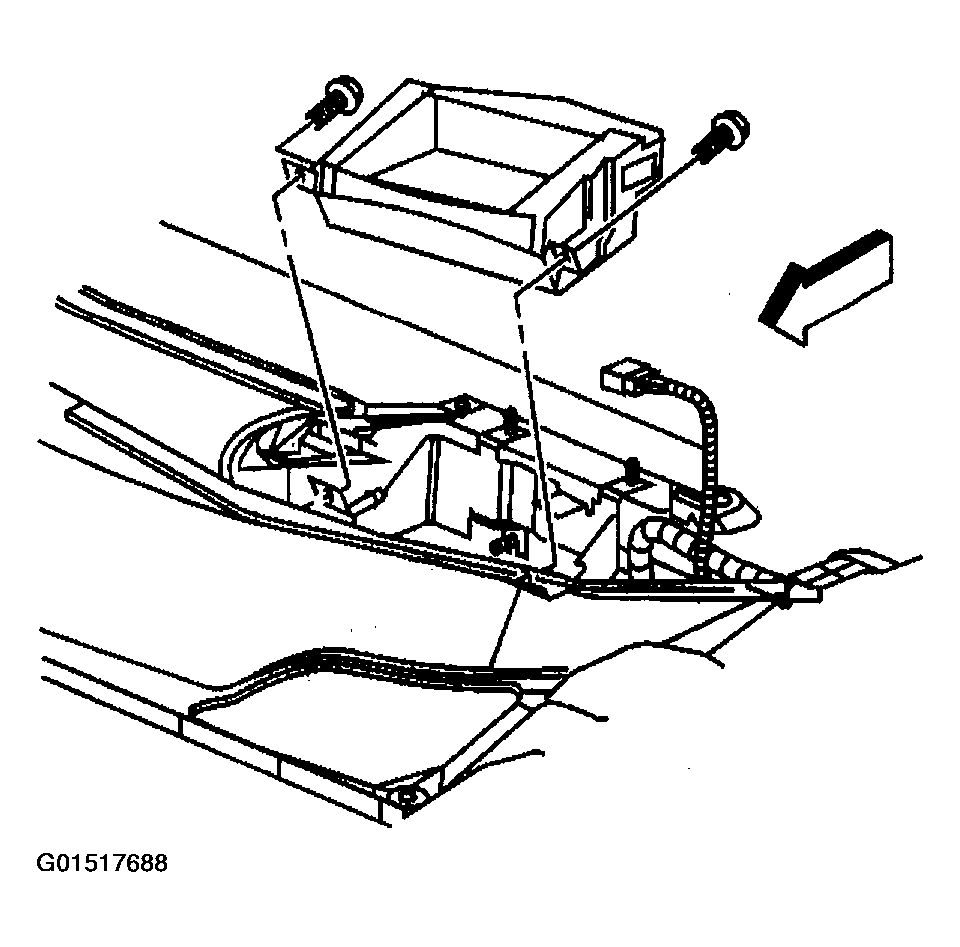

    Fig 1: Removing Heads Up Display Module
    G01517688Courtesy of GENERAL MOTORS CORP.
