Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heads up display module.
  2. Install the bolts that secure the heads up display module to the IP.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  3. Connect the electrical connectors.
  4. Install the IP upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (AZTEK)  or TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS)  .

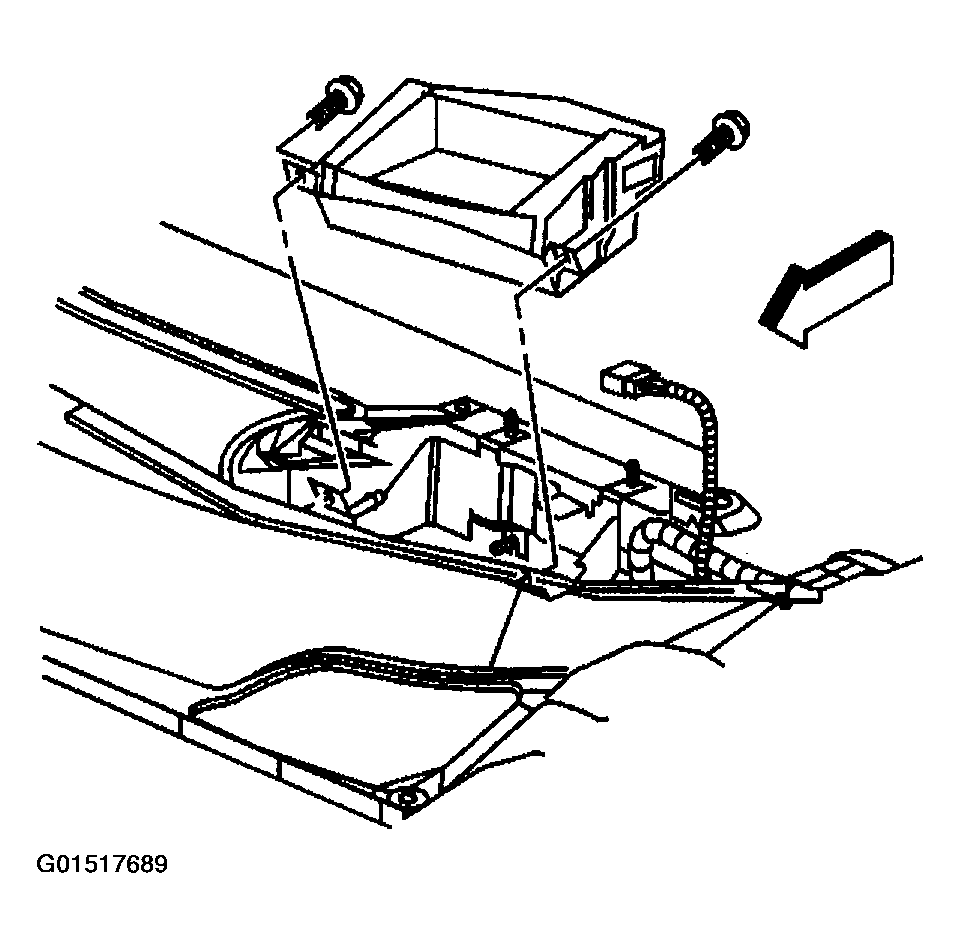

    Fig 1: Installing Heads Up Display Module
    G01517689Courtesy of GENERAL MOTORS CORP.
