Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel (I/P) compartment door assembly.
  2. Remove the screws retaining the I/P compartment door latch to the door.
  3. Remove the door handle.

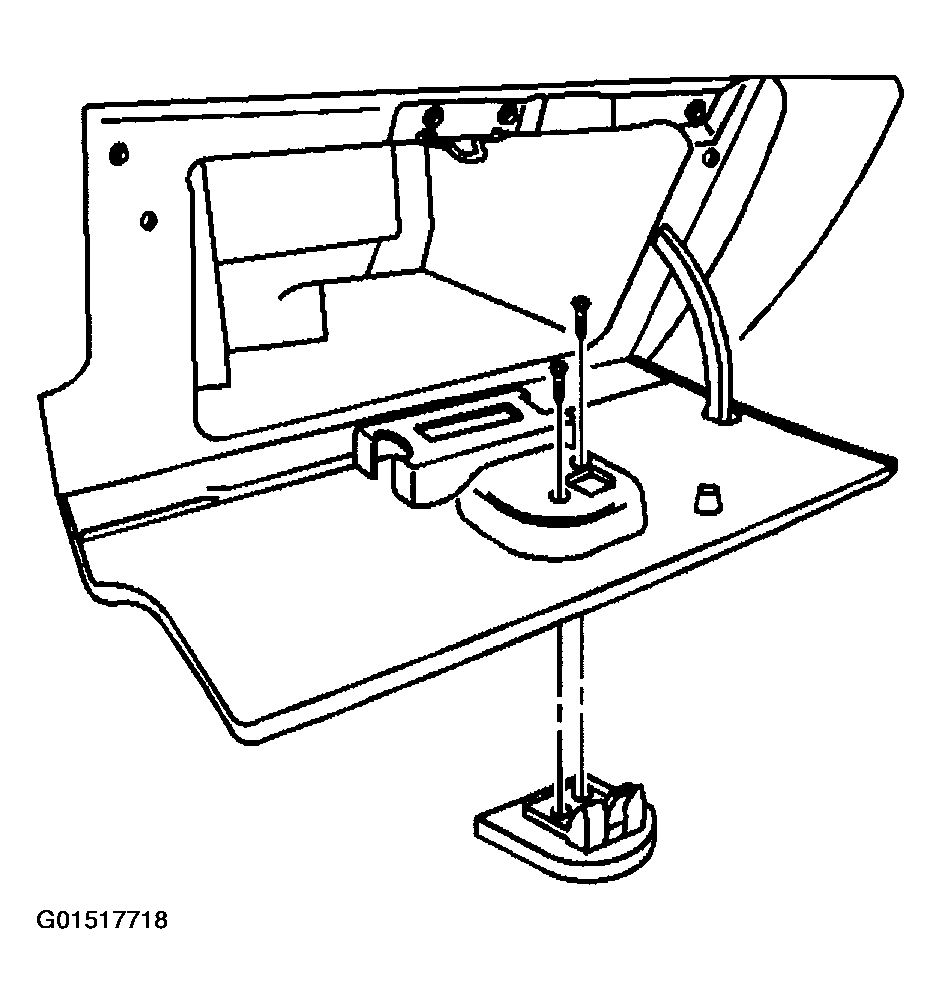

    Fig 1: Removing I/P Compartment Door Handle
    G01517718Courtesy of GENERAL MOTORS CORP.
