Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the door handle into position in the I/P compartment door.
  2. Install the I/P compartment door latch retaining screws.

    Tighten

    Tighten the IP compartment door latch retaining screws to 2 N.m (18 lb in).

  3. Close the I/P compartment door assembly.

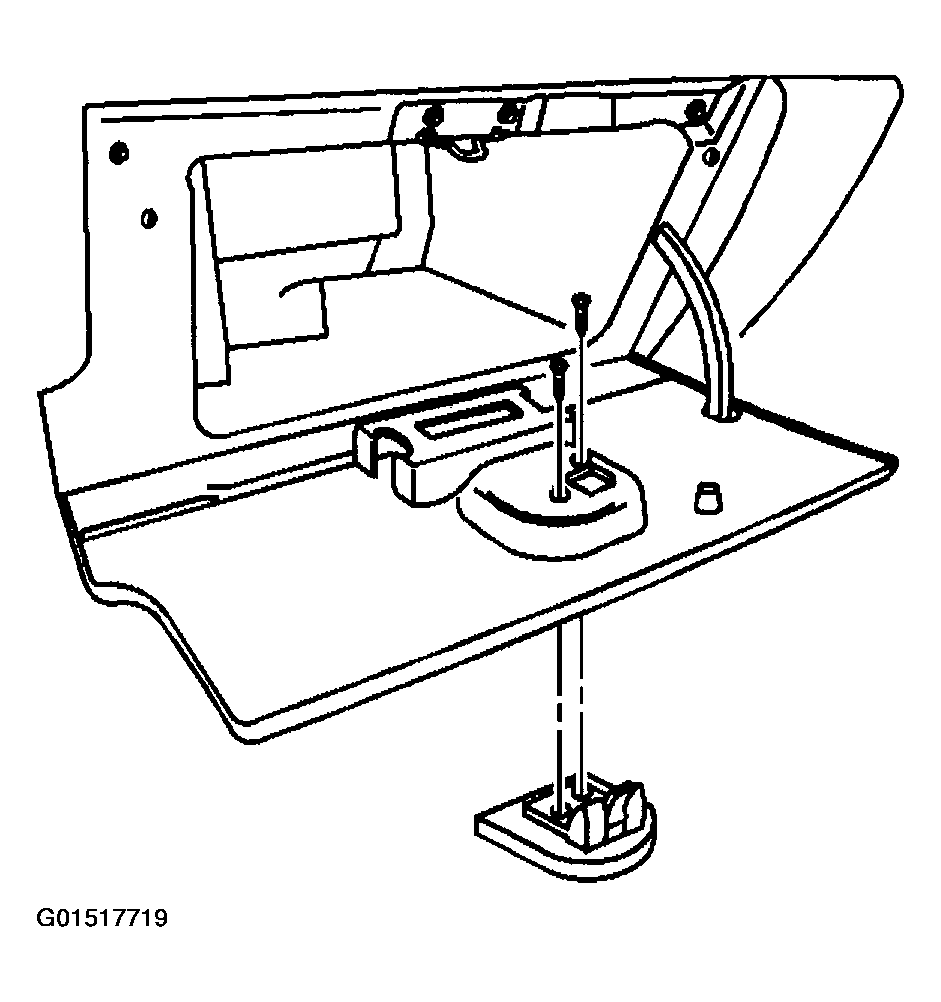

    Fig 1: Installing I/P Compartment Door Handle
    G01517719Courtesy of GENERAL MOTORS CORP.
