Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the instrument panel compartment to the instrument panel.
  2. Install the bolts to the instrument panel compartment hinge.

    Tighten

    Tighten the instrument panel compartment hinge bolts to 4 N.m (35 lb in).

  3. Close the instrument panel compartment.

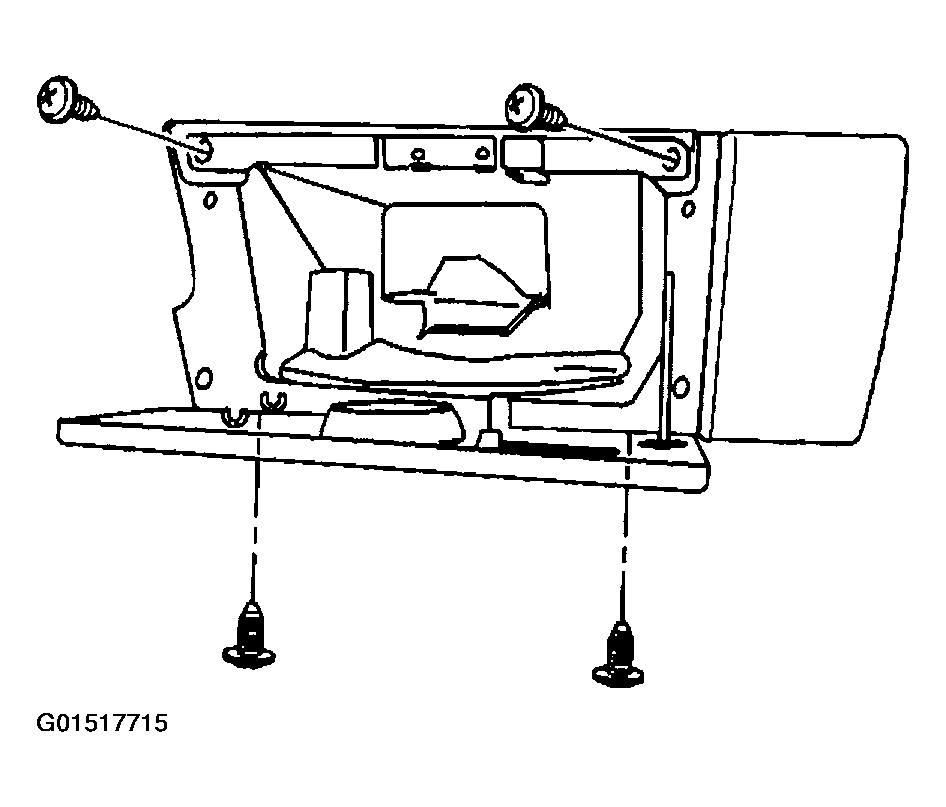

    Fig 1: Installing Instrument Panel Compartment
    G01517715Courtesy of GENERAL MOTORS CORP.
