Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Snap the IP courtesy lamp into the IP insulator.

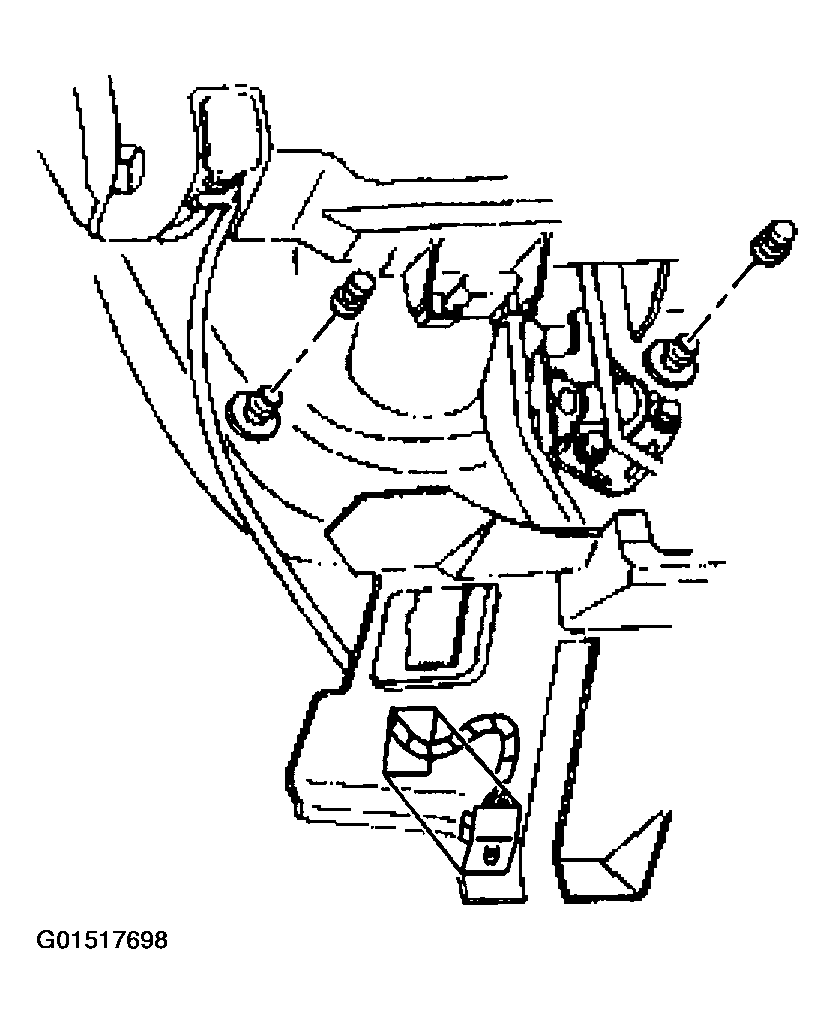

Fig 1: Shaping IP Courtesy Lamp Into IP Insulator
Courtesy of GENERAL MOTORS CORP.
Position the IP insulator to the instrument panel.
Install the push-in retainers to the IP insulator to instrument panel.
Install the press-on retainers to the IP insulator to dash mat.

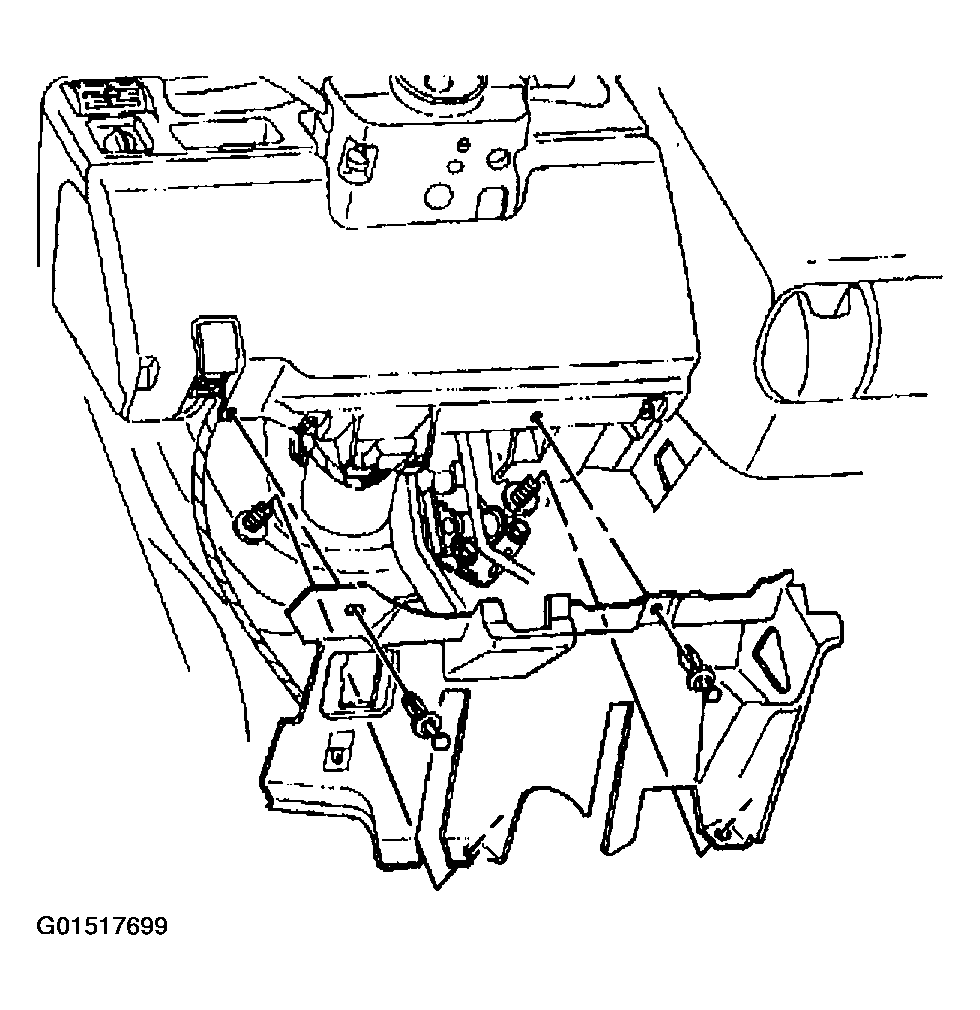

Fig 2: Installing Push-In Retainers To IP Insulator
Courtesy of GENERAL MOTORS CORP.
