Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the front floor console bracket to the floor.
  2. Install the lower nuts (1) to the front floor console bracket.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

  3. Install the upper bolts/screws (2) to the IP.

    Tighten

    Tighten the bolts/screws to 2.5 N.m (22 lb in).

  4. Install the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (AZTEK)  or CONSOLE REPLACEMENT - FRONT FLOOR (RENDEZVOUS)  .

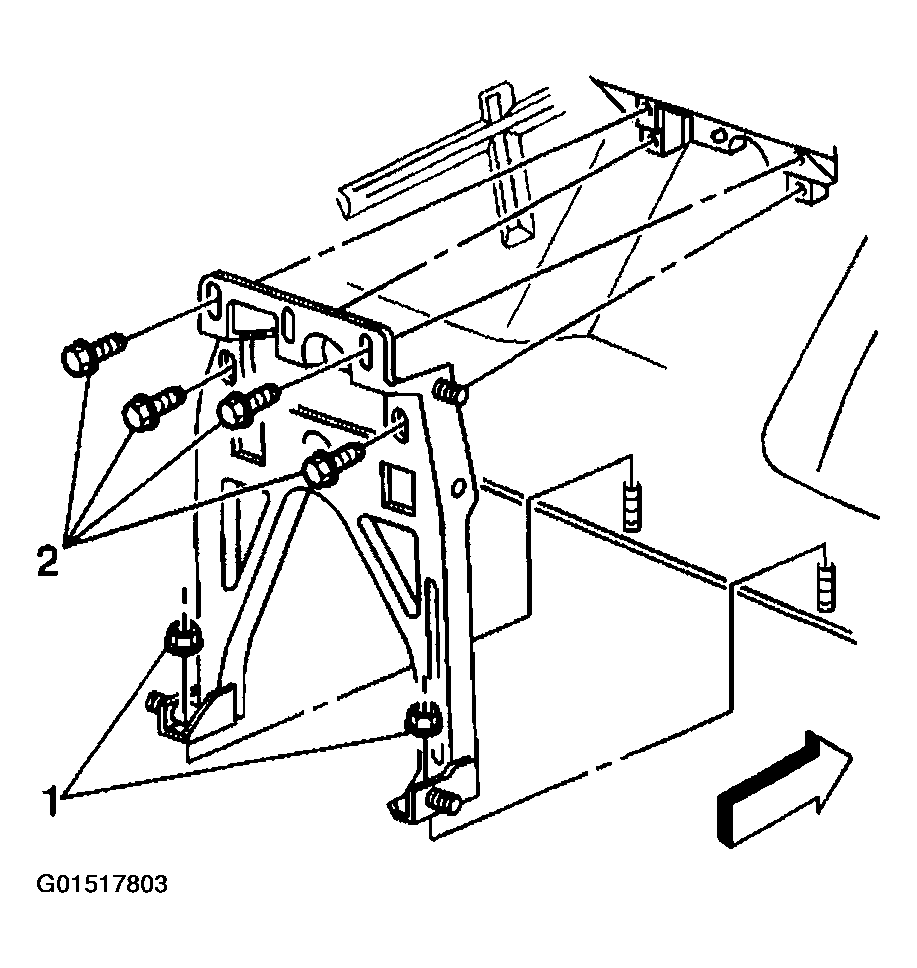

    Fig 1: Installing Front Floor Console Bracket
    G01517803Courtesy of GENERAL MOTORS CORP.
