Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the clip from the hood latch.
  3. Disconnect the electrical connector from the sensor.
  4. Remove the ambient air temperature gage sensor from the electrical harness clip.

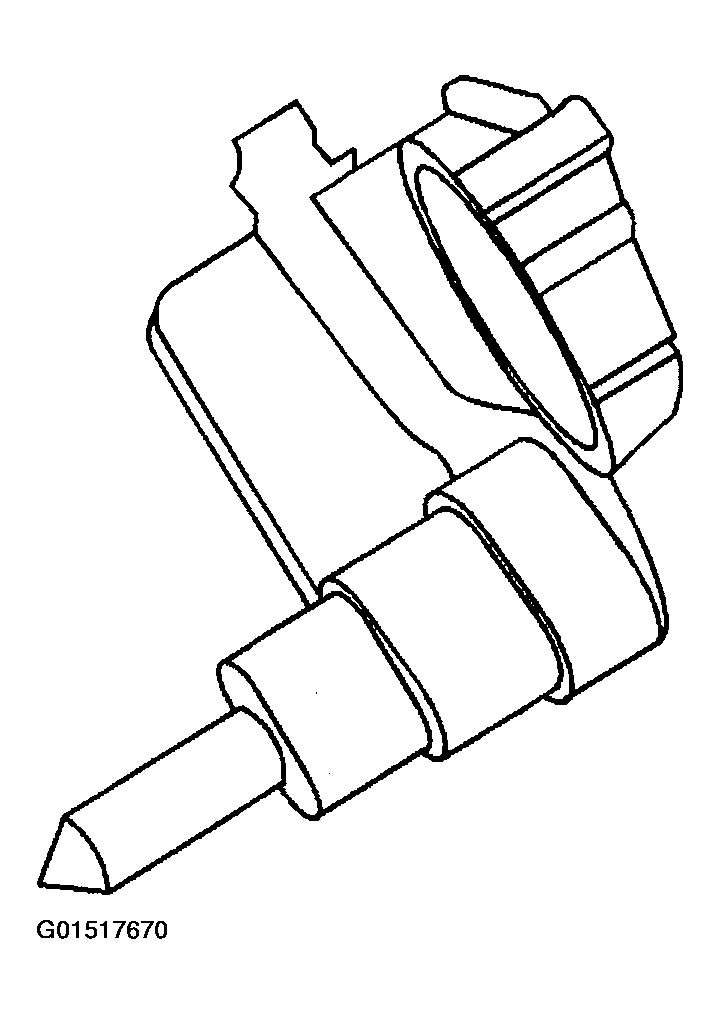

    Fig 1: Removing Ambient Air Temperature Gage Sensor
    G01517670Courtesy of GENERAL MOTORS CORP.
