Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the right headlamp assembly.
  3. Disconnect the electrical connector from the ambient air temperature sensor.
  4. Use J 38778  in order to remove the push-in retainer which secures the ambient air temperature sensor to the radiator core support.
  5. Remove the ambient air temperature sensor from the vehicle.

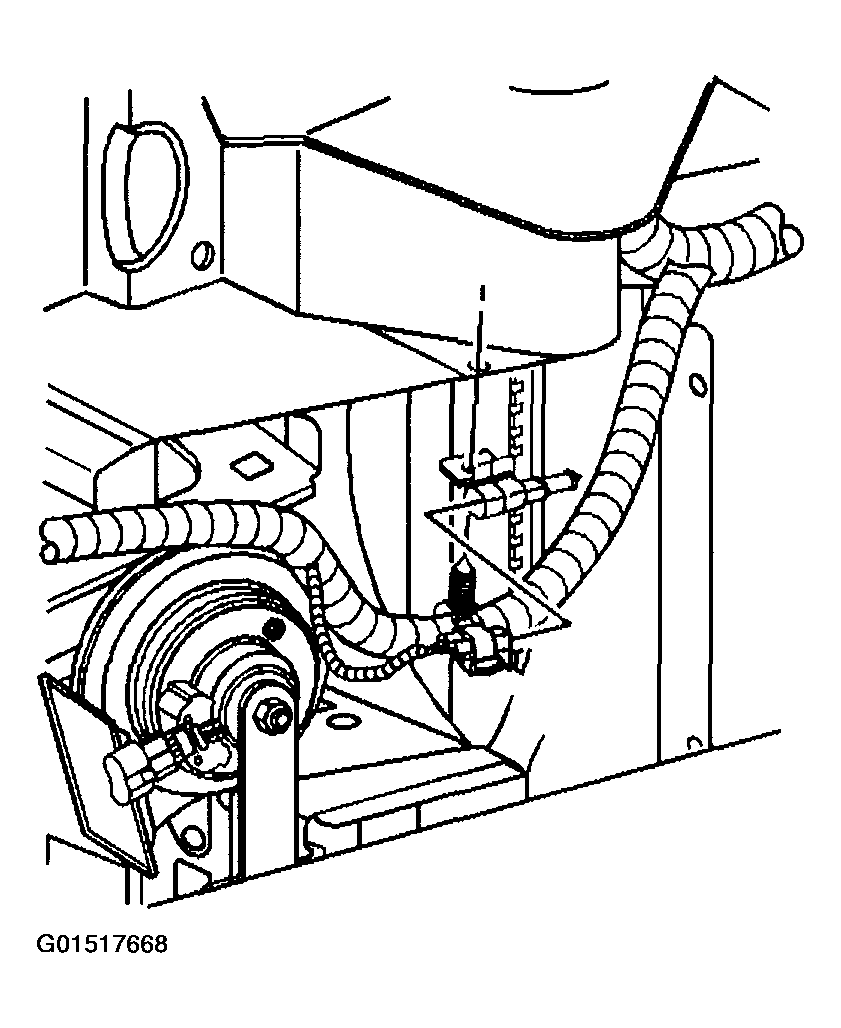

    Fig 1: Removing Ambient Air Temperature Sensor
    G01517668Courtesy of GENERAL MOTORS CORP.
