Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the ambient air temperature sensor to the vehicle.
  2. Install the push-in retainer which secures the ambient air temperature sensor to the radiator core support.
  3. Connect the electrical connector to the ambient air temperature sensor.
  4. Install the right headlamp assembly.
  5. Close the hood.

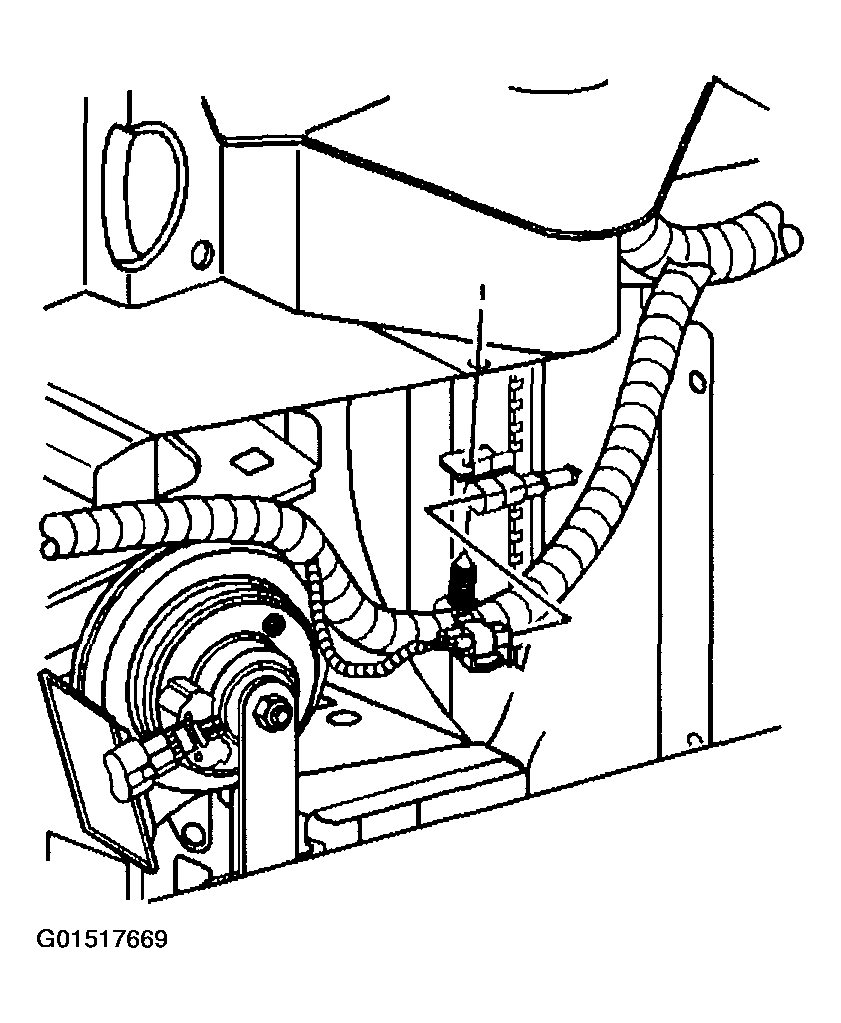

    Fig 1: Installing Ambient Air Temperature Sensor
    G01517669Courtesy of GENERAL MOTORS CORP.
