Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the power accessory port retainer with the key to the slot into the power accessory port hole.

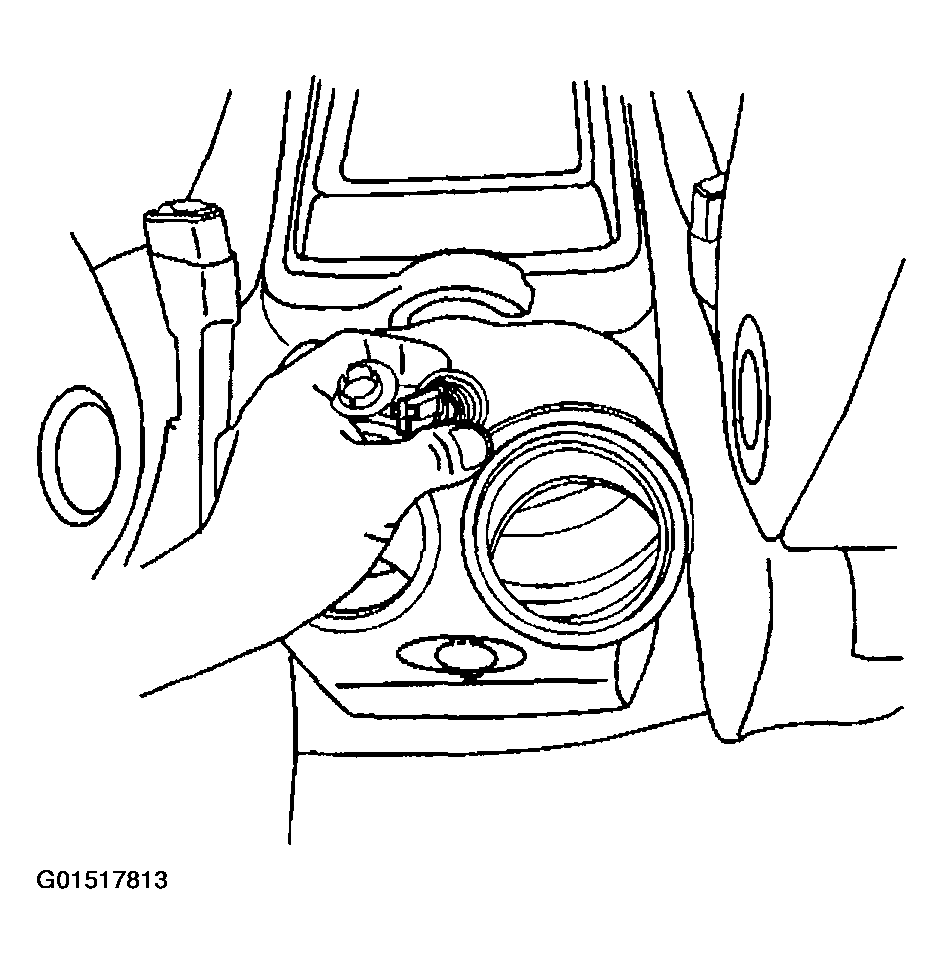

    Fig 1: Positioning Power Accessory Port Retainer
    G01517813Courtesy of GENERAL MOTORS CORP.
  2. Install the power accessory port retainer pressing into place until fully seated.

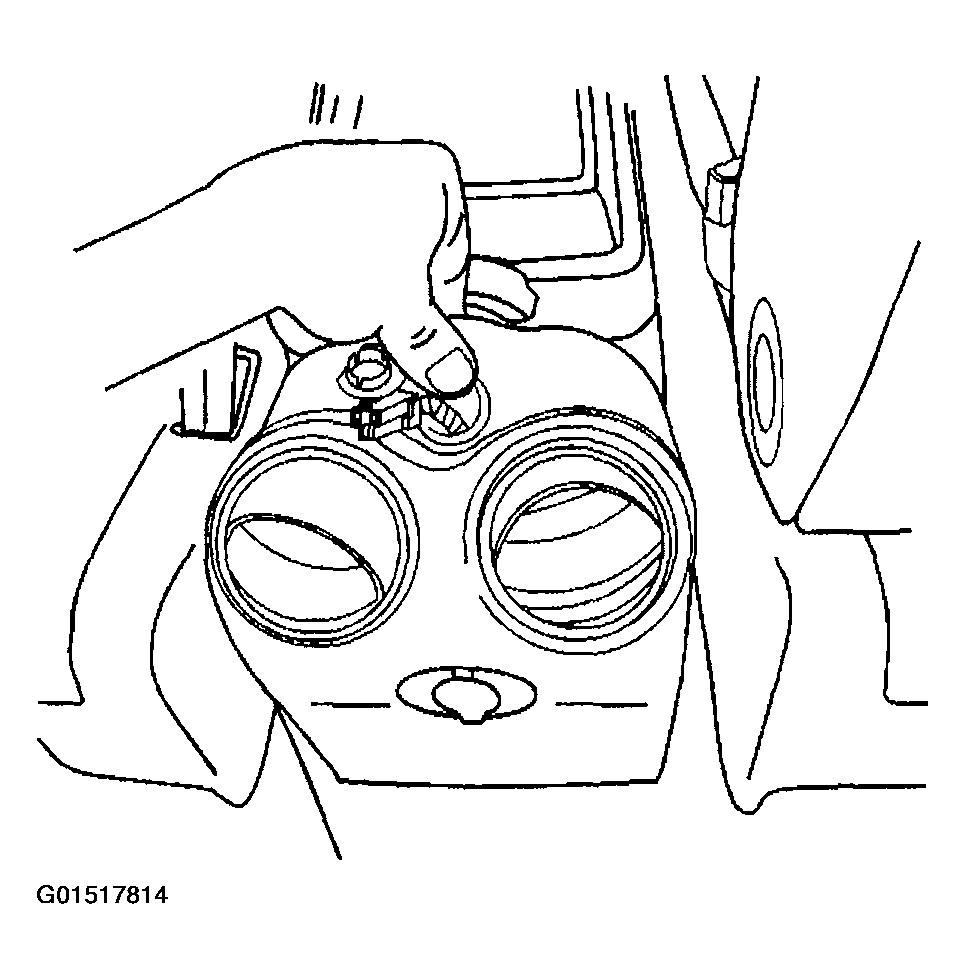

    Fig 2: Installing Power Accessory Port Retainer
    G01517814Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the front floor console power accessory port.

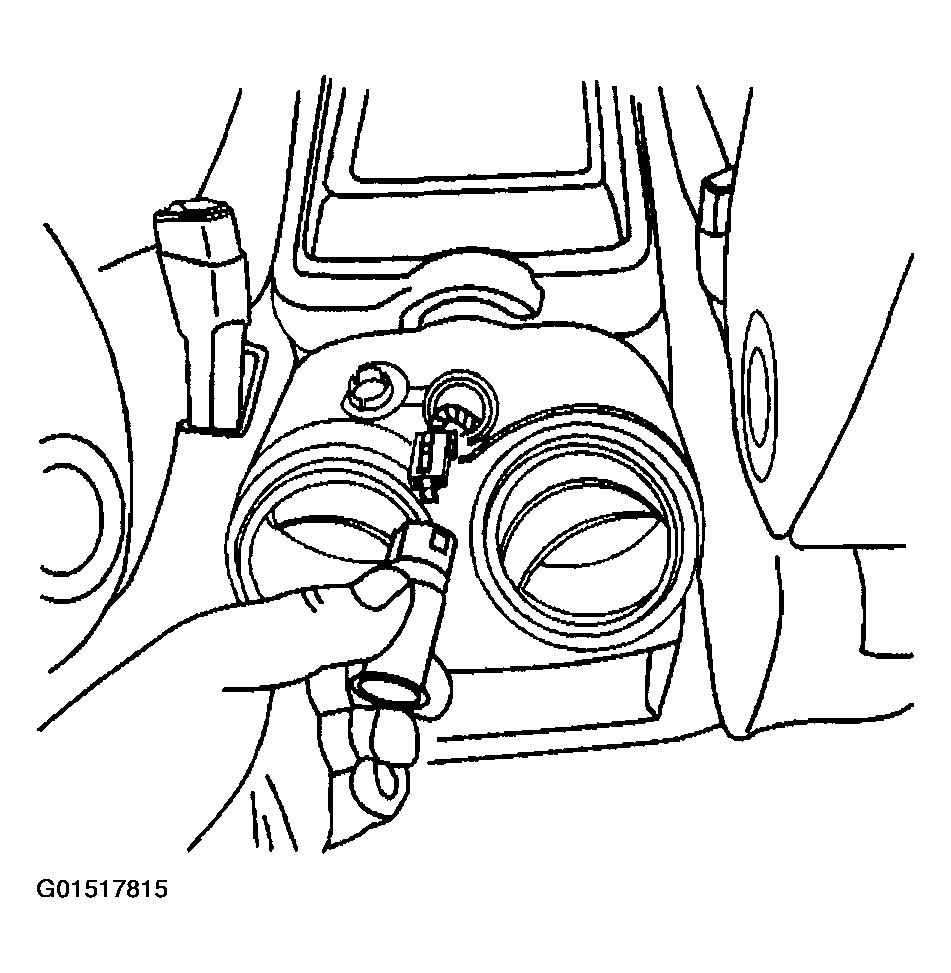

    Fig 3: Connecting Electrical Connector To Front Floor Console Power Accessory Port
    G01517815Courtesy of GENERAL MOTORS CORP.
  4. Position the power accessory port to the retainer.

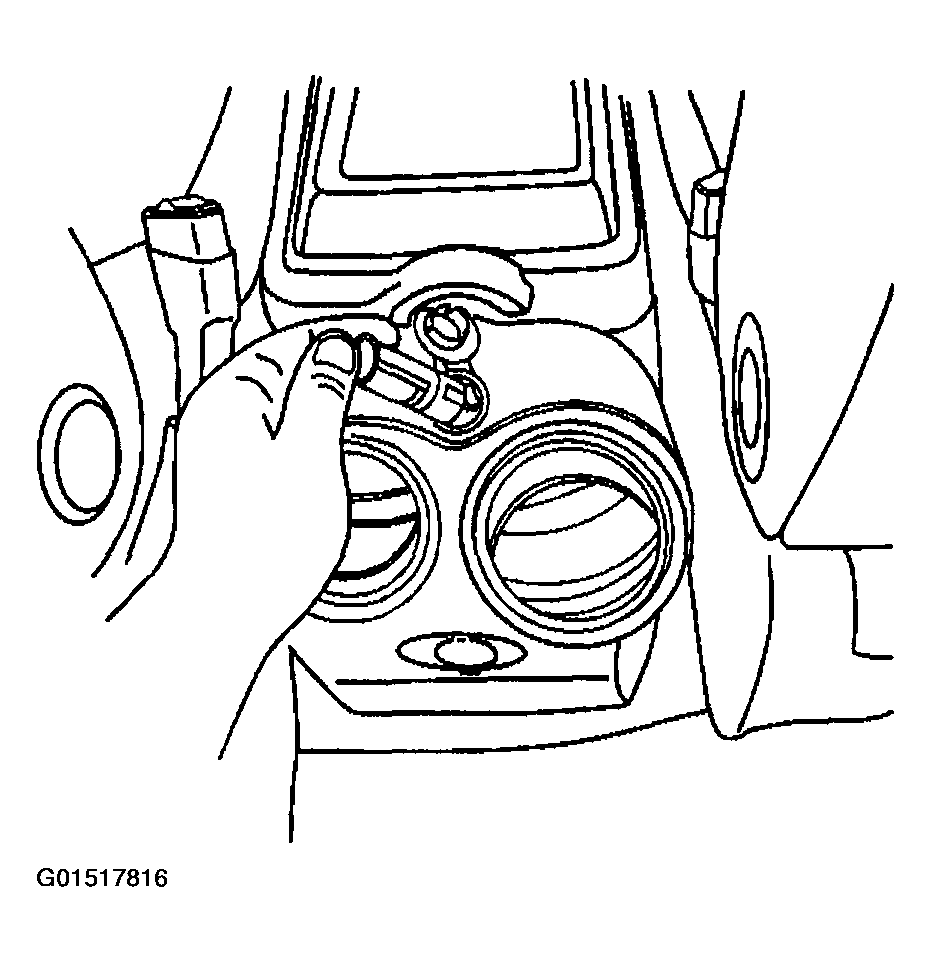

    Fig 4: Positioning Power Accessory Port To Retainer
    G01517816Courtesy of GENERAL MOTORS CORP.
  5. Install the power accessory port into the front floor console pressing into place until fully seated.
  6. Install the power accessory port fuse.
  7. Inspect the power accessory port for proper operation.

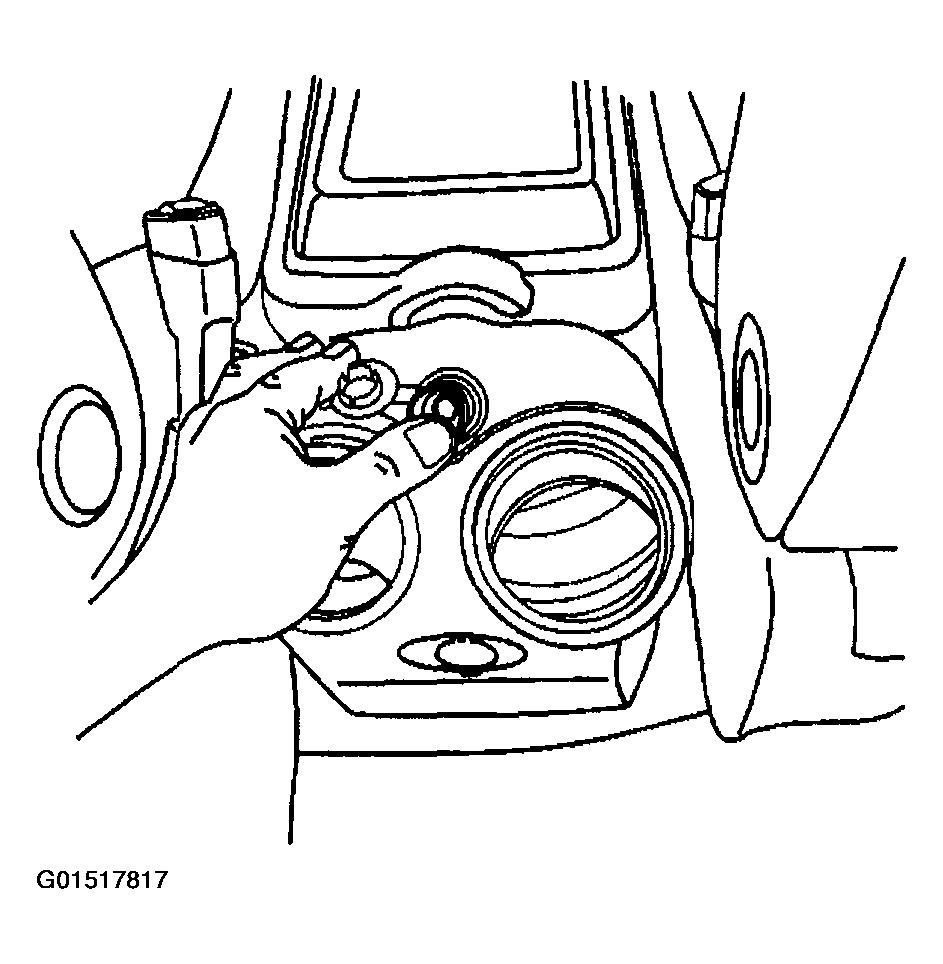

    Fig 5: Installing Power Accessory Port Into Front Floor Console
    G01517817Courtesy of GENERAL MOTORS CORP.
