Indicator/Warning Message Description and Operation: Notes

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

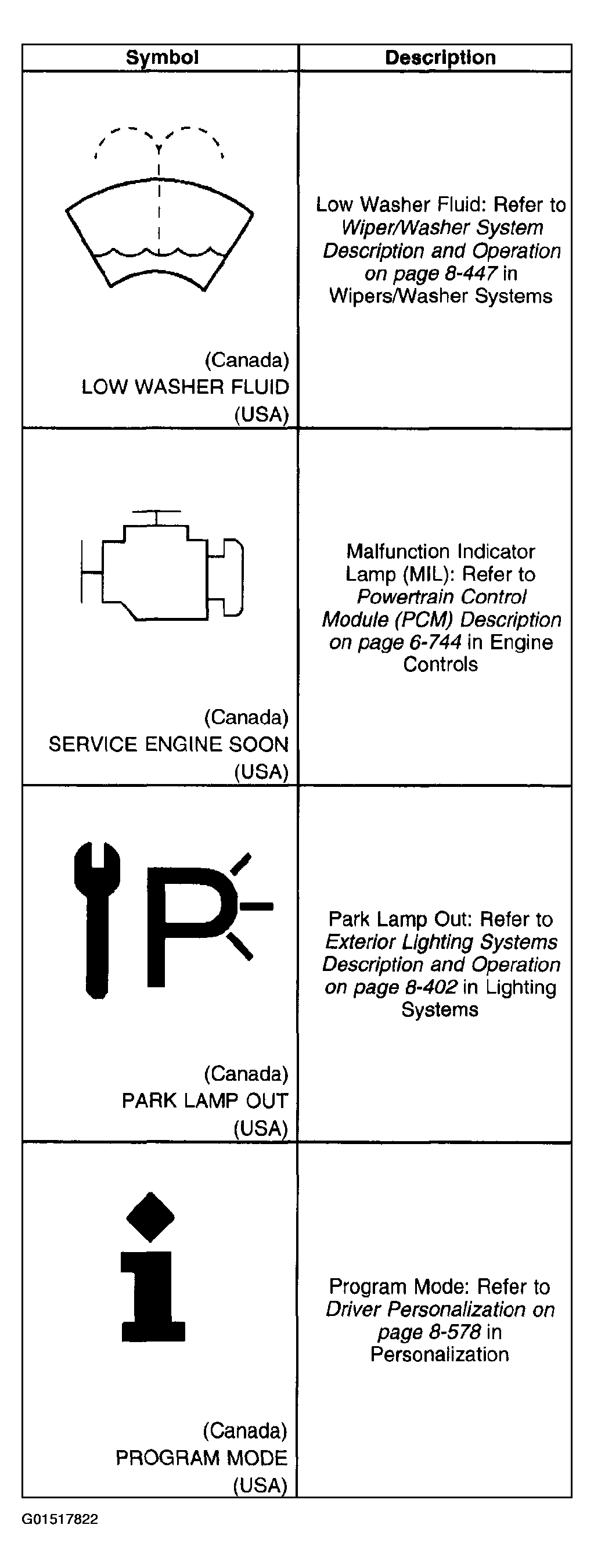

Fig 1: Identifying Indicator/Warning Message Symbols (1 Of 7)

Courtesy of GENERAL MOTORS CORP.

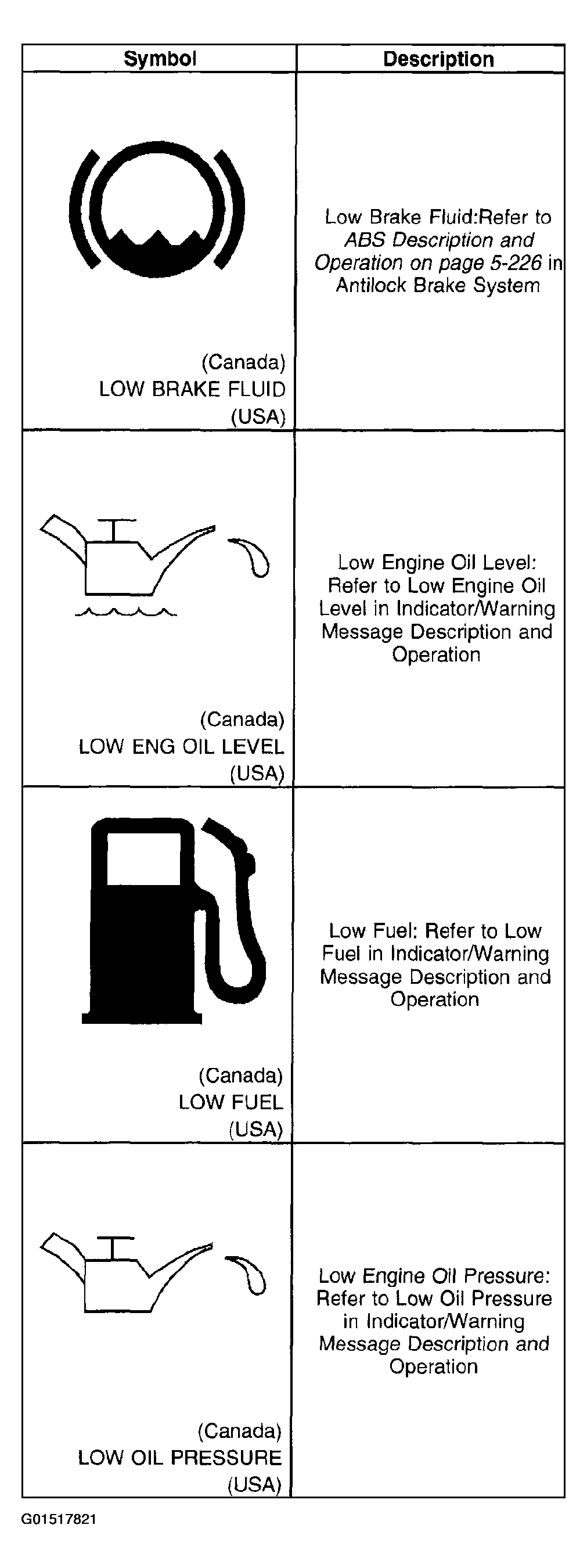

Fig 2: Identifying Indicator/Warning Message Symbols (2 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Indicator/Warning Message Symbols (3 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Indicator/Warning Message Symbols (4 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Indicator/Warning Message Symbols (5 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Indicator/Warning Message Symbols (6 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Indicator/Warning Message Symbols (7 Of 7)

Courtesy of GENERAL MOTORS CORP.
