Mode Button

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

The display format for each mode is indicated in the following table:

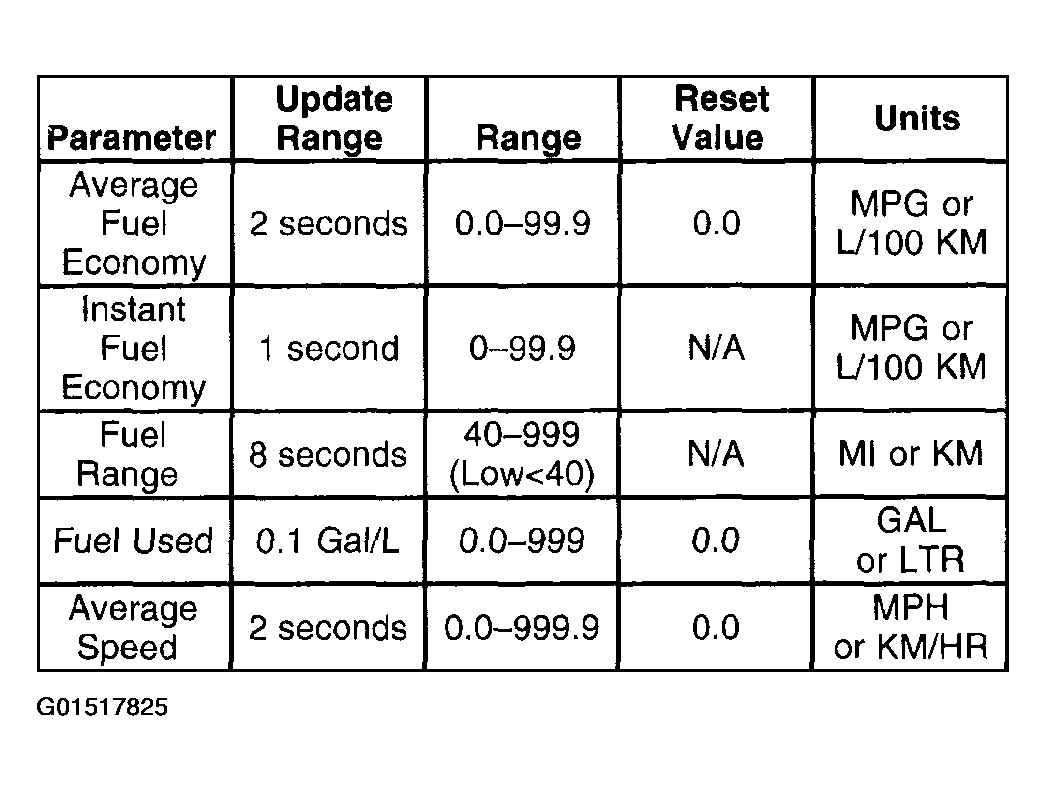

Fig 1: Mode Display Format Specifications (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Mode Display Format Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Pressing the MODE button changes the modes of operation for the driver information center. There are ten display modes available.

Off --No driver information is displayed in this mode of operation.
Compass/Temperature--displays for all modes, except personalization
Personalization
Average Fuel Economy (AFE)
Instantaneous Fuel Economy (IFE)
Fuel Range
Fuel Used
Average Speed
Oil Life Left
English/Metric Display
