Transaxle Brace (4T80-E): Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

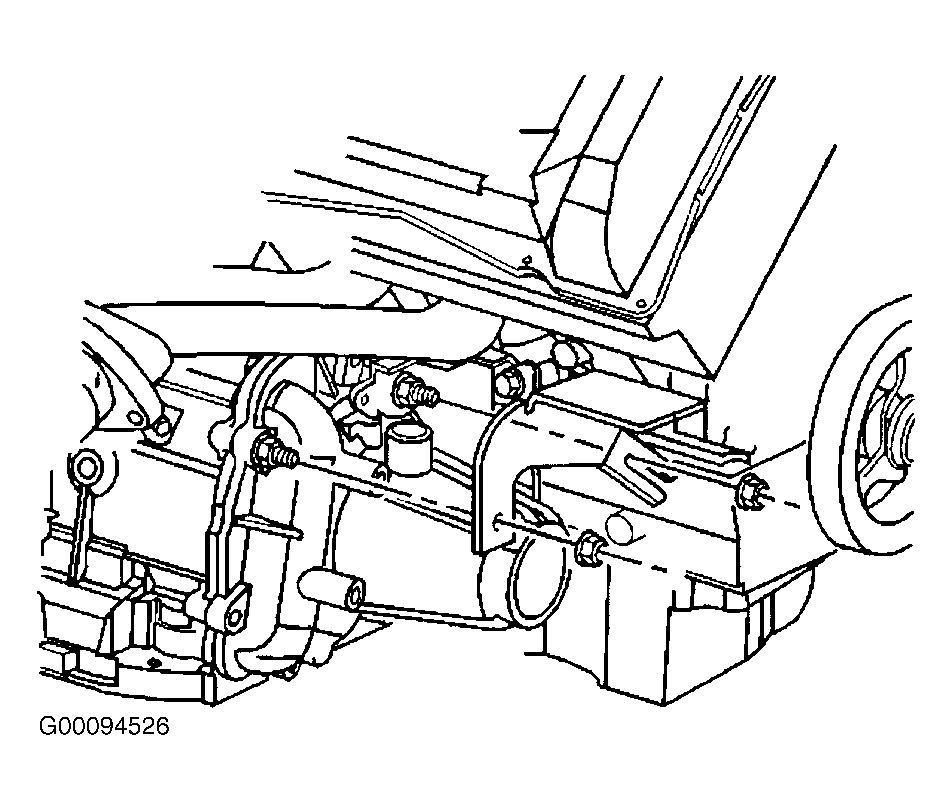

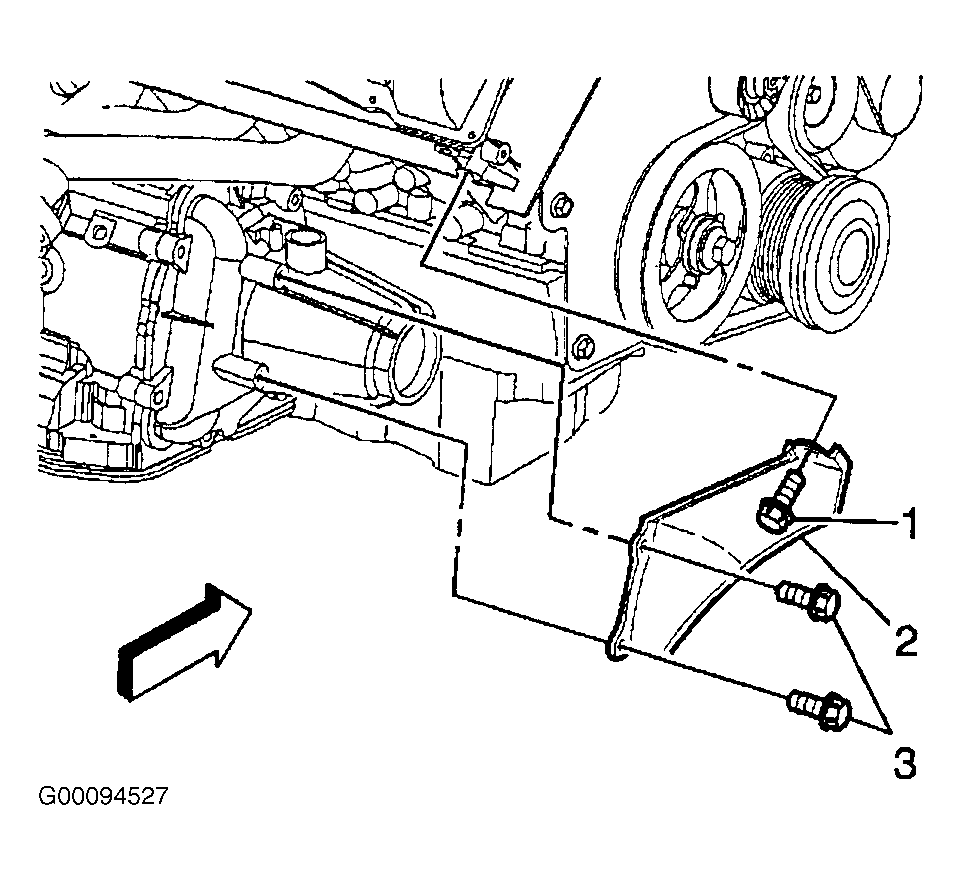

Install the engine to transaxle brace (2). Install the fasteners (1, 3) into the engine and transaxle. See Figure . Tighten the transaxle brace bolts to specification. Install the heat shield. See Figure . Install the heat shield fasteners. Tighten the heat shield nuts to specification. See TORQUE SPECIFICATIONS  . Install the right front tire.
